PAS68 Static Bollards

A range of PAS68 tested static bollards.

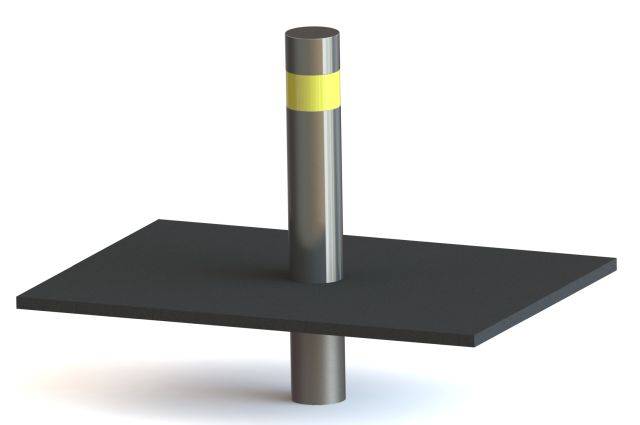

Model APT20SH:

• A zero penetration super slim shallow foundation bollard with a 159 mm diameter tested with the N1 3.5 tonne vehicle at 30 mph (48 kph).

• 1000 mm finish height (bespoke heights available on request).

• V3500(M1)/90/48:0.

Model APT30SM:

• A surface mounted bolt down bollard tested with the N2 7.5 tonne vehicle at 30 mph (48 kph). The product is bolted to existing concrete bases and suspended slabs.

• 219 mm diameter bollard core.

• Requires as little as 50 mm cover of any material.

• Used as temporary or permanent security.

• Supplied complete with all connecting bars and bolts.

• Corner sections available.

• 1000 mm finish height (bespoke heights available on request).

• V7500(N2) 48/90:5.

Model APT30SH:

• A shallow foundation bollard which is supplied complete with integral rebar making installation simple and quick.

• Tested as a single unit with a single foundation.

• The bollard was tested with the N2 7.5 tonne vehicle at 30 mph (48 kph).

• V7500(N2) 48/90:1.

• Slim 219 mm diameter bollard when painted or when in stainless steel.

• 1000 mm raise height above ground.

Model APT30ST:

• Available as 193 and 219 mm bollards, the product has been tested with the N2 7.5 tonne vehicle at 30 mph (48 kph).

• 1000 mm finish height (bespoke heights available on request).

• V7500(N2)90/48:0.

Model APT40SH:

• A shallow foundation bollard requiring just 125 mm depth. A 219 or 273 mm bollard can be used with this product.

• The product has been tested with the N2 7.5 tonne vehicle at 40 mph (64 kph).

• Unique and simple chain based connection system.

• 219 mm or 273 mm diameter bollard options.

• Corner and other angular sections available.

• Painted, stainless steel, decorative or site-specific bespoke sleeves available.

• 1000 mm finish height (bespoke heights available on request).

• V7500(N2)64/90:3.

Model APT40ST:

• Available as 219 and 273 mm bollards, the product has been tested with the N2 7.5 tonne vehicle at 40 mph (64 kph).

• 1000 mm finish height (bespoke heights available on request).

Model APT50ST:

• The product has a diameter of 273 mm and has been tested with both the N2 and N3 7.5 tonne vehicle at 50 mph (80 kph).

• 1000 mm finish height (bespoke heights available on request).

• V7500(N2)/90/80:1. N3 vehicle ratings are available on request.
