PAS68 Railing System

Application

The APT30PR will protect any key facility from a vehicular based attack and provide an additional barrier against pedestrians.

Description

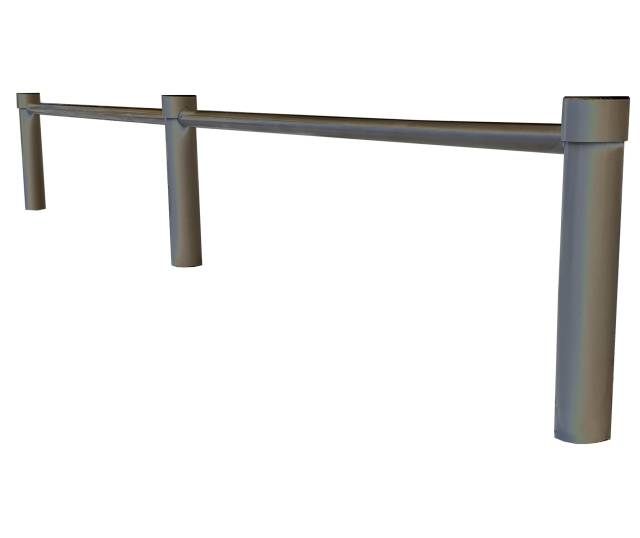

PAS68 tested railing system offering unique features that include removable cross bars.

Individual shallow depth foundation of just 400 mm is required i.e. no continuous trenching. 200 mm diameter uprights are set 3 m apart by 100 mm diameter crossbars. Each crossbar is fully independent and can be completely removed within minutes to allow vehicle access.

Each upright requires no additional rebar.

Features and benefits:

  • Very shallow foundation at 400 mm.
  • No continuous trenching required.
  • Up to 3 m sections between uprights.
  • Crossbars are removable creating a vehicular access point.
  • Easy to install.
  • Slim 100 mm cross bars.
  • V7500(N2) 48/90:1.5.
  • Tested at MIRA with N2 7.5 tonne vehicle at 30 mph (48 kph).

Applications:

The APT30PR will protect any key facility from a vehicular based attack and provide an additional barrier against pedestrians.

General information

Size

Consult manufacturer and insert requirements.

Uniclass 2015

Ss_25_16_94_48 Low-speed metal vehicle safety parapet systemsPrimary

CAWS

null Proprietary protective barriers

Q41/190 Vehicle access point barriers

null Street furniture

Specification data - Low-speed metal vehicle safety parapet systems

Product Reference

PAS68 Railing System

Size

Consult manufacturer and insert requirements.

Colour/ Finish

Consult manufacturer and insert requirements.

Literature

Eagle PAS68 Street Furniture

Eagle PAS68 Street Furniture

Third party certifications

  • PAS68
