PAS68 Automatic Rising Bollards

Description

A range of PAS68 tested automatic bollards.

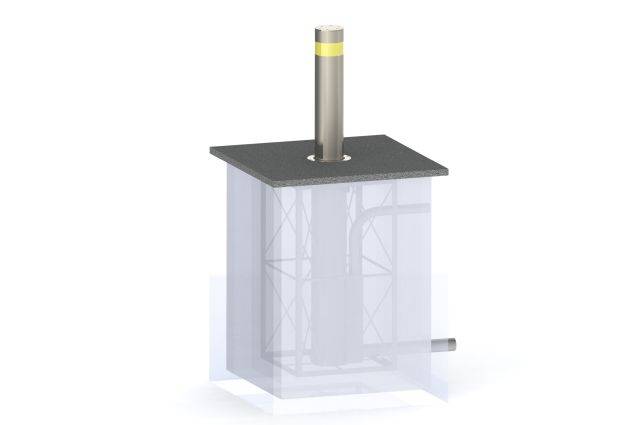

Model APT30A:

A zero penetration slimline bollard tested with the N2 7.5 tonne vehicle at 30 mph (48 kph).

  • PAS68: V7500(N2) 48/90:0/0.
  • Impact tested as a single unit in a single foundation.
  • Supplied with integral rebar making installation simple and quick.
  • 1000 mm raise height above ground.
  • Slim 219 mm diameter bollard.
  • Raises and lowers in 6-8 seconds.
  • Uses three-phase power at 10 A.
  • 100% duty cycle.
  • Can be supplied with LPS SR2 or LPS SR4 security cabinets, if required.
  • Complies with all safety standards.
  • Supplied with a high-performance control board.
  • Works standalone, in unison with other products or as a tiger trap.
  • Can also be used as a manual system via drill or hand-pump.
  • V7500(N2) 48/90:0/0.

Model APT30AT:

A shallow foundation rising bollard tested as a single unit with the N2 7.5 tonne vehicle at 30 mph (48 kph). The foundation depth is 500 mm.

  • PAS68: V7500[N2]48/90:0/0.
  • Zero penetration.
  • Diameter: 346/ 255/ 194 mm arrays at 1455 mm centres.
  • Height: 900 mm above finished floor level (FFL).
  • Finish: Painted.
  • Foundation: 1700 x 1700 x 500 mm.
  • Operation: Automated three phase supply, manual system via drill or hand-pump.
  • Raise speed: 8–10 seconds standard, 3–4 seconds with optional Emergency Fast Operation (EFO).
  • Uses three-phase power at 10 A.
  • 100% duty cycle.
  • Can be supplied with LPS SR2 or LPS SR4 security cabinets, if required.
  • Complies with all safety standards.
  • Supplied with a high-performance control board.
  • Works standalone, in unison with other products or as a tiger trap.
  • Can also be used as a manual system via drill or hand-pump.
  • V7500(N2)48/90:0/0.

Model APT50A:

A high impact rated bollard tested as a single unit with the N3 7.5 tonne vehicle at 50 mph (80 kph).

  • PAS68: 7500[N3]80/90:5.9/7.0
  • Diameter: 323 mm.
  • Height: 1200 mm finished floor level (FFL).
  • Supplied with integral re-bar making installation simple and quick.
  • Foundation: 2000 mm.
  • Operation: Automated, can be used as a manual system via drill or hand-pump.
  • Raise speed: 8 seconds standard, optional Emergency Fast Operation (EFO).
  • Continues to work after impact. Can withstand multiple attacks.
  • Uses three-phase power at 10 A.
  • 100% duty cycle.
  • Can be supplied with LPS SR2 or LPS SR4 security cabinets, if required.
  • Complies with all safety standards.
  • Supplied with a high-performance control board.
  • Works standalone, in unison with other products or as a tiger trap.
  • Can also be used as a manual system via drill or hand-pump.
  • V7500(N3)80/90:5.9.

General information

Finish

Bespoke finish

Consult manufacturer for detail and insert requirements.

Painted

Consult manufacturer for detail and insert requirements.

Stainless steel

APT30A and APT50A. Stainless steel sleeve can be designed to project requirements.

Uniclass 2015

Pr_20_76_08_12 Carbon steel rising bollardsPrimary

CAWS

Q50/190 Bollards

Q50/194 Retracting bollards

Specification data - Carbon steel rising bollards

Product Reference

PAS68 Automatic Rising Bollards APT30A

PAS68 Automatic Rising Bollards APT30AT, 194 mm diameter

PAS68 Automatic Rising Bollards APT30AT, 255 mm diameter

PAS68 Automatic Rising Bollards APT30AT, 346 mm diameter

PAS68 Automatic Rising Bollards APT50A

Finish

Bespoke finish

Consult manufacturer for detail and insert requirements.

Painted

Consult manufacturer for detail and insert requirements.

Stainless steel

APT30A and APT50A. Stainless steel sleeve can be designed to project requirements.

Accessories

None

Emergency Fast Operation (EFO)

APT30AT and APT50A.

LPS SR2 security cabinet

LPS SR4 security cabinet
