Parklets 2.0 Urban Flooring - Café, Cosy, Mech and Portal
Verified by manufacturer 6 months ago
Parklet Urban Flooring - 4470-901
Parklet Urban Flooring - 4470-901
ISO 9001 Quality Management
Certificate type

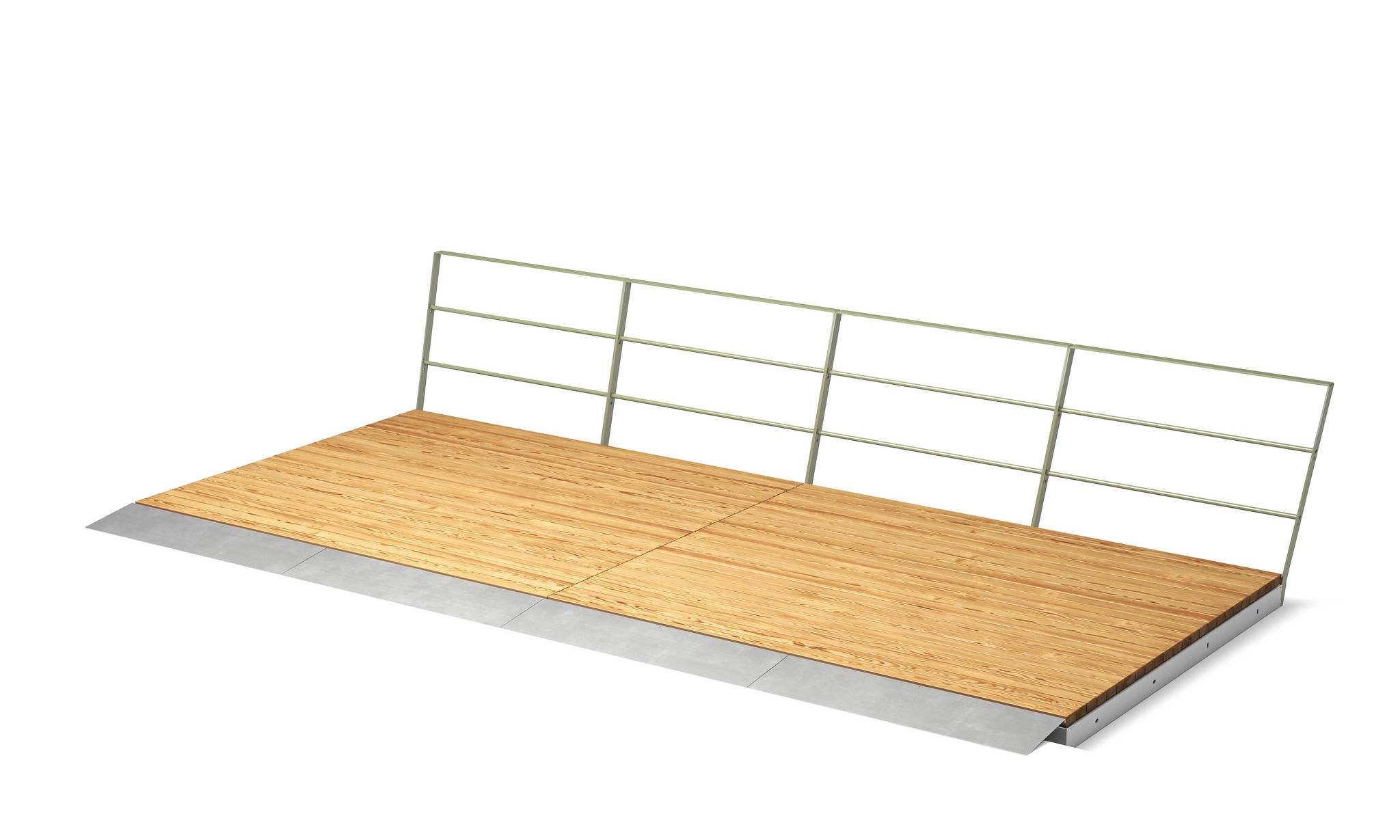

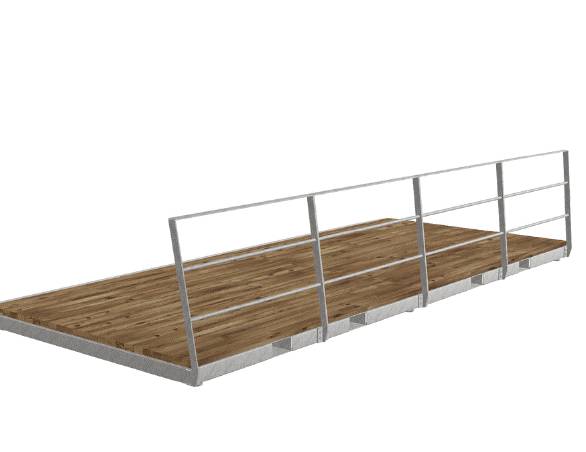

Parklets 2.0 portal extends existing pavements to provide more space for people and plants.
Application
Suitable where former parking spaces are to be converted into social areas.
Description
The range consists of six complete modules that can be positioned in parking spaces that are no longer in use.
The urban flooring is easy to move with an electric forklift and has adjustable feet so that it can be adapted to different situations and levels.
The nonslip transition plates ensure a smooth join with the existing pavement.
Features and benefits:
- Can be positioned individually or joined together.
- Constructed from hot-dip galvanized steel, with an option of powder coated finish.
- The powder coating process was developed to satisfy the tough requirements of the Norwegian offshore industry. Corrosion class C5-M.
- Wood option: Linseed oil proofed Nordic pine.
- Spare parts always available.
- Lifetime warranty against rust.
- Cradle to Gate A1–A3.
General information
Color | Other |
Finish | Powder-coated Galvanized |
Material | Steel Wood |
Length | 2400 mm |
Width | 2000 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q55/380 Deck boards Q55/110 Deck |
Specification data - Decking systems
Structure | |
Primary structure | Hot dip galvanised steel. |
Subframe | Linseed oil proofed, nordic pine. |
Deck boards | |
Material | Hot-dip galvanized steel. |
System accessories | Not required.Parklet Cycling - 4476-901.Guidance for specification option: 508 kg. |
Weight | 548 kg. |
Mounting | Free standing. Ground mounted. Manufacturer guidanceAdjustable feet; 1200 mm (maximum). |
Dimensions | 2400 x 2000 mm. |
Third-party certification | Intertek and Climate Compensated Organisation, certified. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1906.76 kg CO₂ eq/unit Self declared Guidance for specification option: Urban flooring. Cafe: 3566.49 kg CO₂ eq. Portal: 3070.52 kg CO₂ eq. Cosy: 2445.34 kg CO₂ eq. Cycling: 3241.69 kg CO₂ eq. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 2.32 % Guidance for specification option: Urban flooring. Cafe: 2.27%. Portal: 2.25%. Cosy: 2.06%. Cycling: 5.16%. |
Third party certifications
ISO 9001 Quality Management
ISO 9001
