NBS Source
ParaFlex G165/G225 Reinforcement Fleece
Compare variants

Application

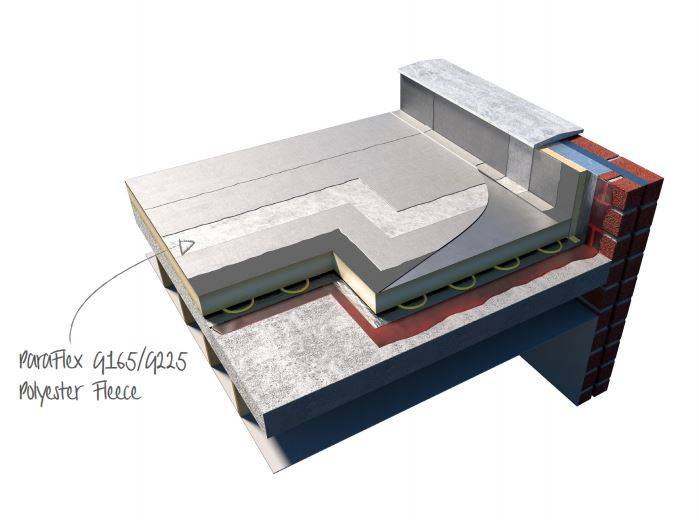

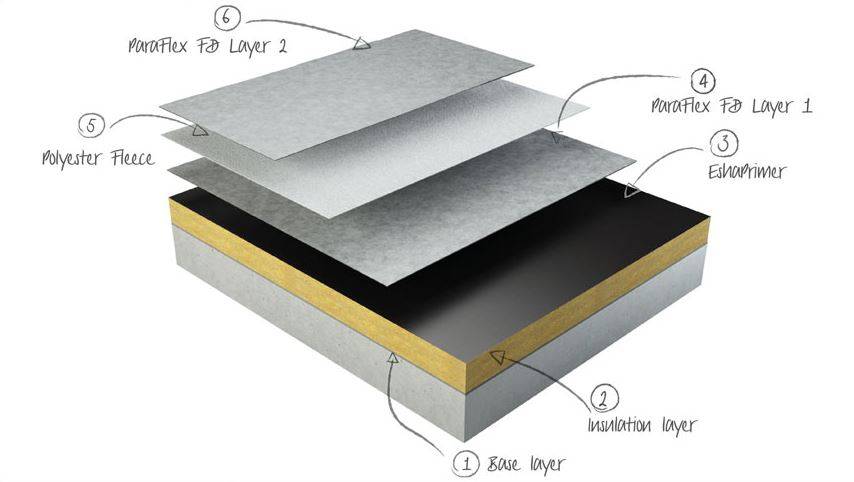

For use with ParaFlex FD waterproofing system.

Description

ParaFlex Polyester Fleece is a special polyester mesh fabric that helps regulate layer thickness of the ParaFlex FD and improves the cured breaking strength.


Features and benefits:

  • The sewn-in polyester mesh provides good directional stability, ensuring no changes in length occur during application and cuts can be prepared with precision.
  • In addition to its excellent technical properties, ParaFlex polyester mesh fabric is quickly and completely impregnation capacity during use, enabling it to fit tightly at upstands and transitions.

General information

Color

White

Material

Polyester

Shape

Rectangle

Size

Width x length.

5000 x 105 mm

5000 x 250 mm

5000 x 350 mm

5000 x 500 mm

5000 x 700 mm

Uniclass

Pr_20_96_71_64 Polyester (PES) fibre fleece reinforcementPrimary

CAWS

J31/47 Waterproof coating

J31/110 Cold deck roof coating

J31/353 Waterproof coating

J31/5 Cold deck roof coating

Specification data - Polyester (PES) fibre fleece reinforcement Enhanced data

Weight (maximum)

Density/ specific weight:

165 g/m².

Elongation at break

-

Transverse direction (minimum)

35%.

Longitudinal direction (minimum)

25%.

Roll width (minimum)

100 mm.

150 mm.

200 mm.

250 mm.

300 mm.

350 mm.

500 mm.

700 mm.

1050 mm.

Length

50 000 mm.

Tensile property, longitudinal

Maximum tensile force longitudinal

1250 N/50 mm.

Tensile property, traversal

Maximum tensile force transverse

900 N/50 mm.

Cure time

ParaFlex FD can be applied after approx. 15 - 60 minutes (depending on temperature).


Consumption approx. 300 - 500 g/m² depending on porosity of the substrate.
