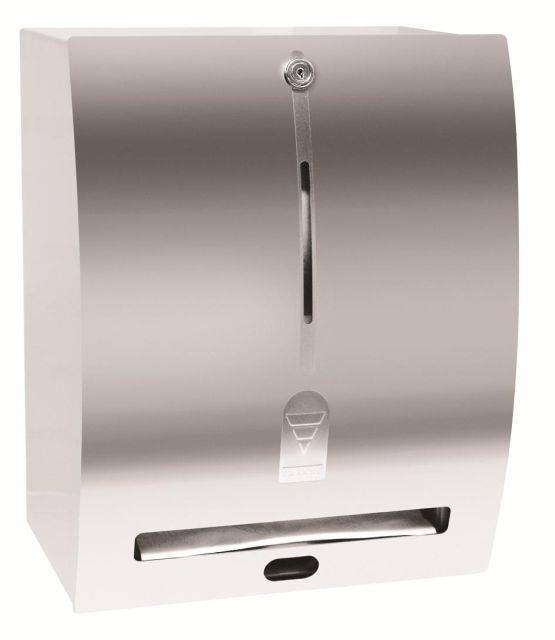

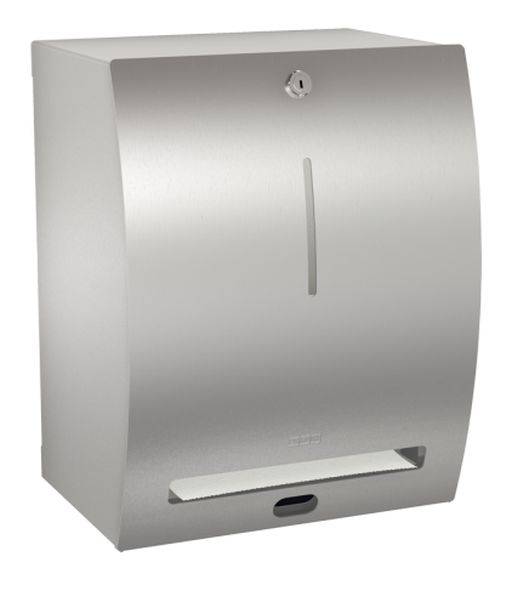

Paper Towel Dispenser - STRX630
Verified by manufacturer over a year ago
Stratos touch free paper towel dispenser for wall mounting (battery operated).
Application
Stratos touch-free paper towel dispenser, sensor operated for wall mounting.
Description
Stratos touch-free paper towel dispenser for wall mounting.
Features and Benefits:
- With InoxPlus® surface refinement for the reduction of fingerprints and better cleaning characteristics (easy to clean),.
- Curved front cover.
- Cylinder lock with Franke standard key.
- Infra-red sensor for non-touch operation.
- Integrated tear-off edge and includes four pieces standard D 1.5V (6V) batteries.
- It is a maintenance free mechanic and easy paper roll change mechanism, for rolls with maximum width 205 mm and maximum diameter 220 mm, paper length adjustable to 200, 250 and 300 mm and includes stainless steel screws and dowels.
General information
Color | Silver |
Finish | Satin Guidance for specification option: With InoxPlus antifingerprint coating |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Length | 385 mm |
Width | 300 mm |
Height | 234 mm Manufacturer guidanceProjection. |
Warranty description | Five year |
Uniclass | |
CAWS | N13/442 Paper towel dispensers |
Product range |
Specification data - Paper towel dispensers
Form | Wall mounted. |
Towels | |
Towel type | Folded. |
Width | 205 mm. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin finish with InoxPlus antifingerprint coating. |
Operation | Automatic.Guidance for specification option: Sensor operation. |
Product Reference | (STRX630) 201.0000.006 |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Arab Emirates |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
