Paper Roll Dispenser - STRX635B
Verified by manufacturer over a year ago

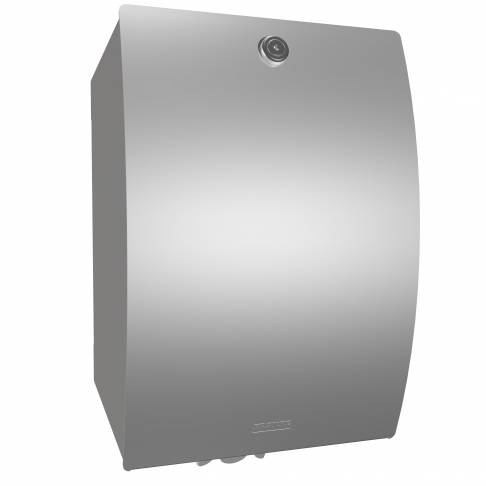

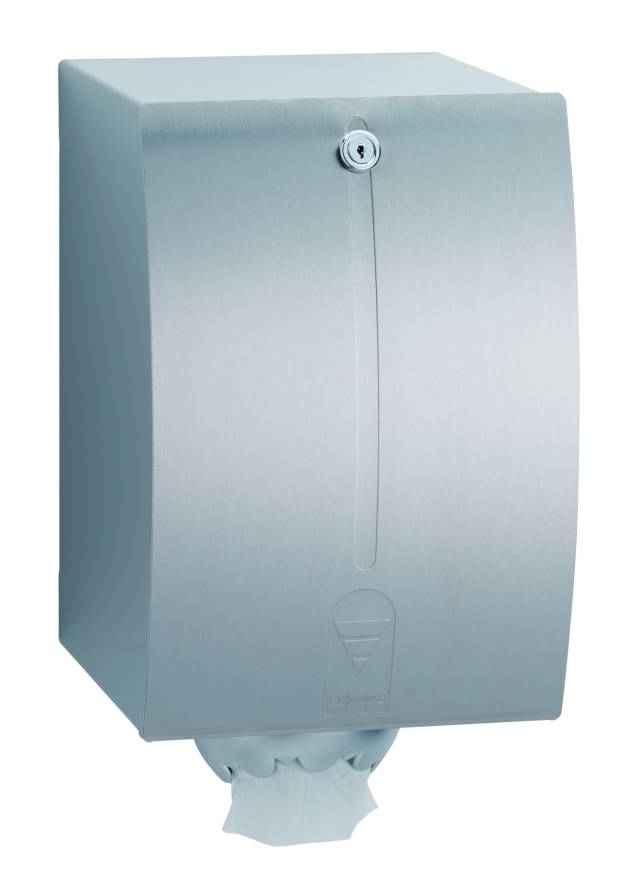

Center-feed paper roll dispenser for wall mounting.
Application
Stratos paper towel dispenser with centre feed for wall mounting. For paper rolls with maximum diameter of 190 mm and maximum height of 250 mm.
Description
Centre-feed paper roll box for wall mounting.
Features and Benefits:
- Stainless steel, surface satin finish.
- With InoxPlusR surface refinement which reduces fingerprints and makes it easier to clean.
- Material thickness 1.5 mm.
- Curved front cover.
- Cylinder lock with Franke standard key, for paper rolls with maximum diameter of 190 mm and maximum height of 250 mm.
- Only for centre-feed paper rolls, integrated tear-off edge and includes stainless steel screws and dowels
General information
Color | Silver |
Finish | Satin Guidance for specification option: With InoxPlus antifingerprint coating. |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Rectangle Guidance for specification option: Rounded. |
Length | 343 mm |
Width | 241 mm |
Height | 205 mm Manufacturer guidanceProjection. |
Warranty description | Five year |
Uniclass | |
CAWS | N13/442 Paper towel dispensers |
Product range |
Specification data - Paper towel dispensers
Form | Wall mounted. |
Towels | |
Towel type | Roll. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin.Guidance for specification option: With InoxPlus antifingerprint coating. |
Operation | Pull out. |
Integral accessories | Integrated tear-off edge, includes stainless steel screws and dowels. |
Product Reference | (STRX635B) 201.0000.014 |
Sustainability data
Country of material origin | United Arab Emirates |
Country of product manufacture | United Arab Emirates |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
