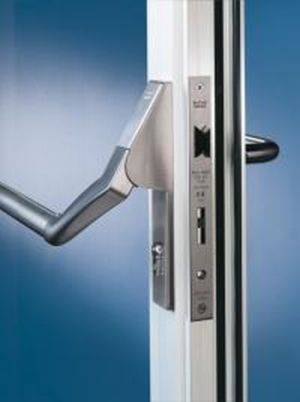

Panic Hardware Series PHA 2500
Description

The system is suitable for timber or narrow stile doors in emergency exits in which safety, security, reliability and aesthetic elegance are a must.

Features:

  • Door width ≤ 1300 mm or door height ≤ 2500 mm for single-leaf doors.
  • Maximum door leaf weight 200 kg.
  • Handed design.
  • Dogging devices available but not for fire or smoke doors.
  • Tested and certified to EN 1125.
  • Can be used for fire and smoke check single leaf doors.
  • Locking rod with spring lock – not applicable to one-point locking fittings.
  • Monitoring switch.
  • External fittings PHT 3900 for standard and fire/ smoke check doors for door leaf thickness up to 60 mm. External fitting include OGRO design lever handle.
  • Extended handle spindle and bolts for door leaf thickness 60–105 mm.
  • Invisible fixings on all devices.
  • Projection from face ≤ 100 mm
  • Designed for use on narrow stiles doors but can be used on timber doors.
  • Electrical operation and monitoring available – consult Dorma for details and wiring diagrams.
  • Available in stainless steel or silver powder coated finishes – consult Dorma for available colours and samples.

On narrow doors where the arch of the panic device clashed with the frame panic devices will not operate – consult Dorma for alternative options.

Specify door specific details in ironmongery schedules or detail drawings.

Consult Dorma for details of components, functions/ monitoring, availability and finishes, including samples for colours.

General information

Features

Door width ≤ 1300 mm or door height ≤ 2500 mm for single-leaf doors

Maximum door leaf weight 200 kg

Handed design

Dogging devices available but not for fire or smoke doors

Tested and certified to EN 1125

Show more

Uniclass 2015

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Specification data - Panic exit devices

Product Reference

PHA Series 2500
