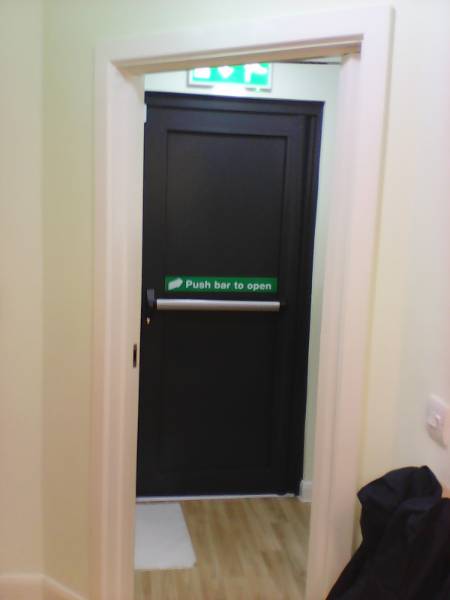

Panic Door - Single

Verified by manufacturer over a year ago

Jack Aluminium Systems Ltd

A thermally improved single door with a Panic exit device tested to PAS 24 to comply with Secured by Design (SBD) requirement.

Jump to:
BOS
+44 (0)24 7646 7449 Website

Application

Suitable for use in school environments.

Description

A thermally improved single door with a Panic exit device.


Features and benefits:

  • Versatile, robust and intrinsic strength.
  • Excellent U-values combined with security to meet the standards required by Secured by Design (SBD).
  • The side light and fan light, both integral part of the original design concept has been tested to PAS 24.
  • The door can be key locked from the outside but this can be overridden by the need to escape from the inside.
  • The door has been tested to give a leaf size of 1200 and 2400 mm (width x height).
  • E-motion is also available on this door.

General information

Color

-

Manufacturer guidance

Available in full range of RAL colours, consult manufacturer for details.

Finish

Anodized

Guidance for specification option:

Satin anodized (AA25).

Powder-coated

Material

Aluminium

Guidance for specification option:

Aluminium alloy 6060 T6 to BS EN 755-9.

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

Hardware.

25 year

Guidance for specification option:

Aluminium extrusion.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

2
