Panelling | Vepps HPL Square Edged, IPS - IPS system

Name: Panelling | Vepps HPL Square Edged, IPS - IPS system
Brand: Venesta Washroom Systems Ltd
SKU: 78jYkWTNAexGNL8dKmG2GE

Verified by manufacturer 11 days ago

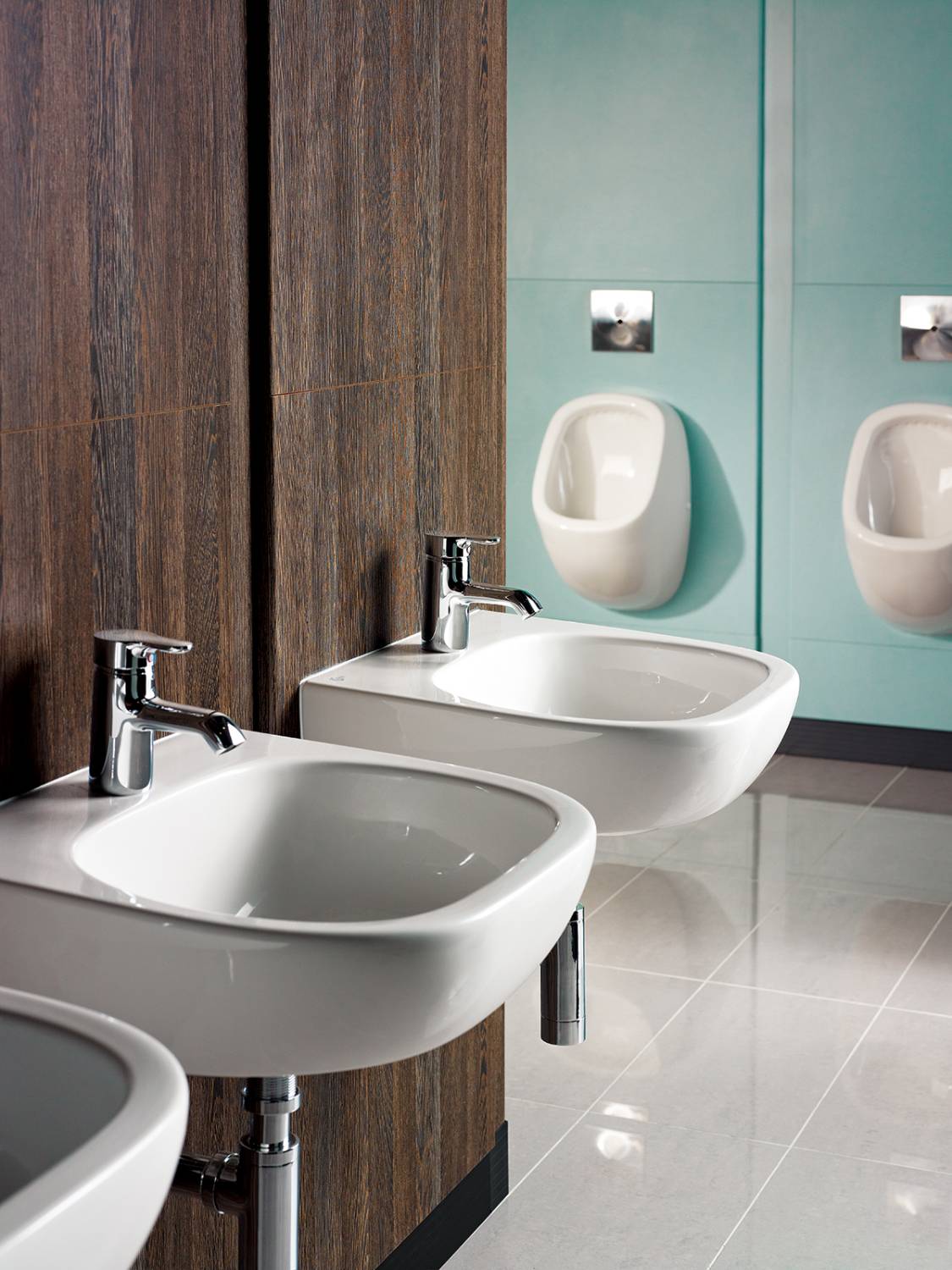

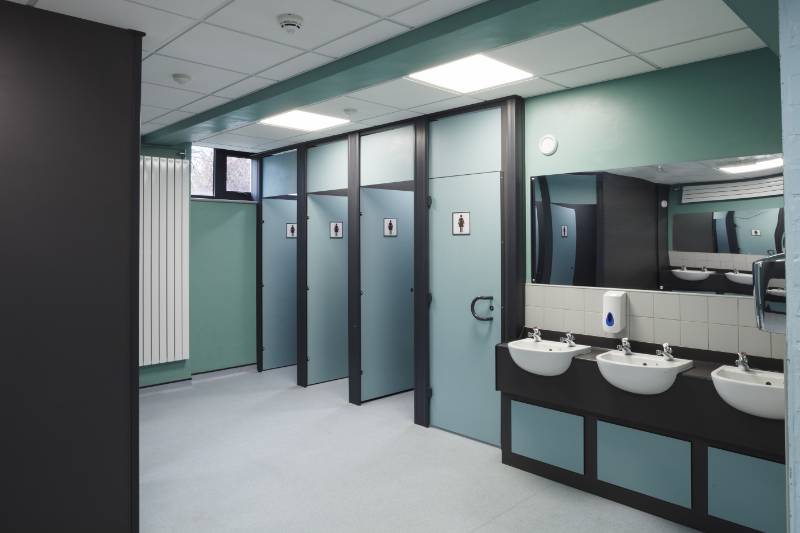

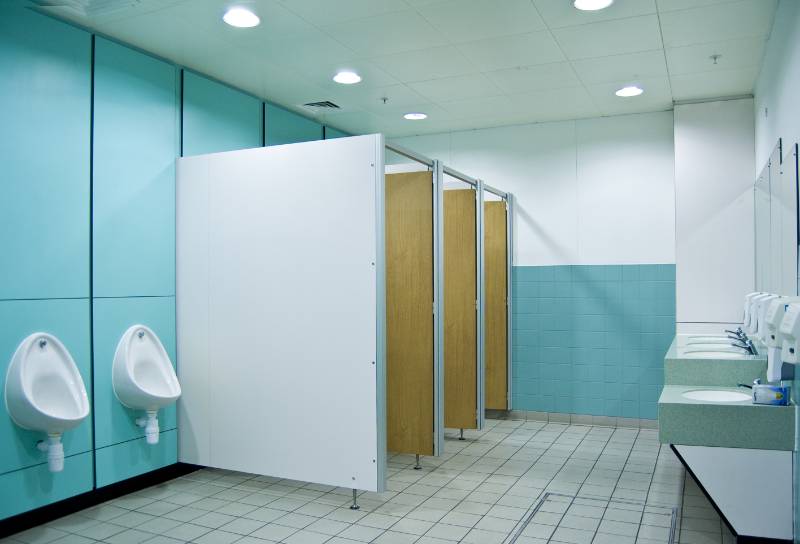

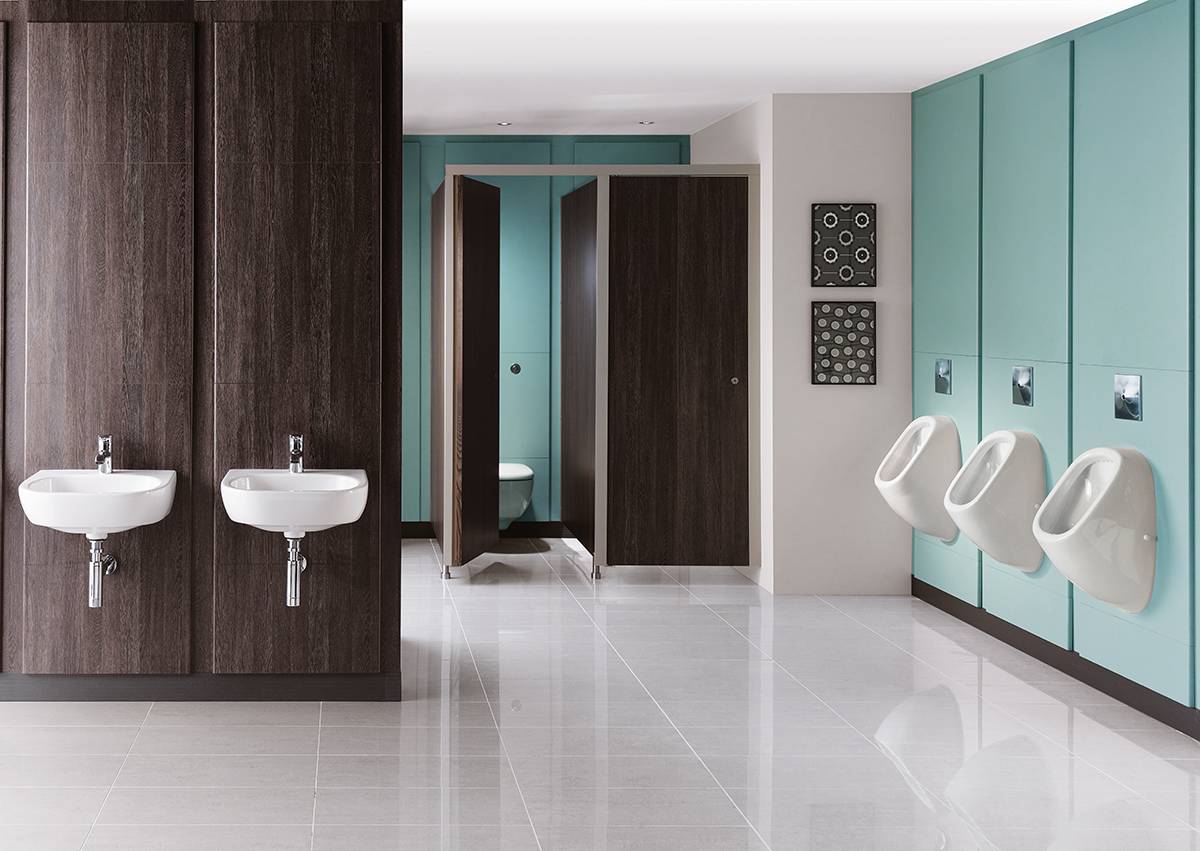

Square edged HPL faced pre-plumbed washroom wall lining system

Venesta Washroom Systems Ltd

Square edged HPL faced pre-plumbed washroom wall lining system.

Jump to:

+44 (0)1474 353333 Website

Application

Washroom applications.

Description

Square edged HPL faced pre-plumbed washroom wall lining system.

Features and benefits:

Hinged access panel using riveted linear-bearing hinges in zinc plated steel and nylon with riveted panel ratchets in zinc plated steel allowing 10 different opening heights.
Subframe tie-back system using M8 zinc plated steel tie-back rods and supporting bracketry in zinc plated steel.
Riveted slider brackets in nylon to allow the top panel to rise and fall where a mid-mounted panel is hinged.
Riveted push-pull clips where applicable to allow bottom panels to be removed.
Integrated factory fitted WC carrier in 2 6mm SGL for use with wall hung WC’s.

General information

Color	Black Blue Cream Green Grey Orange Pink Purple Red Turquoise White Yellow Other Show more
Material	High pressure laminate (HPL) Aluminium Steel Nylon Zinc MFC Show more
Length	18 mm

Uniclass	Pr_40_20_93_62 Pre-plumbed installation framesPrimary
CAWS	K32/15 Duct/ wall lining panels K32/150 Duct/ wall linings – panels and proprietary frames K32/160 Duct linings – preplumbed panels and proprietary frames

Product range	Panelling & Pre-plumbed Systems

Specification data - Pre-plumbed installation frames

Materials	High pressure laminate, extruded aluminium, galvanized steel, moisture resistant chipboard, zinc plated steel, nylon.

Panel	660 kg/m³ grade moisture resistant chipboard faced each side with high pressure laminate (HPL).
Thickness	18 mm nominal.
Edge treatment	1 mm nominal matching or contrasting ABS.
Flashgaps	Melamine faced 660 kg/m³ grade moisture resistant chipboard (MFC).
Framing	Extruded aluminium base and headrail sections and rolled galvanized ultra steel wall channels.
Base rails	100 mm high powder coated two part aluminium baserail to secure subframe units.
Sub frame	Rolled galvanized ultra steel subframe with riveted aluminium bracing bars, fitted to site frame with nylon click-fix locator brackets.
Preplumbing	Pre-fixed and sealed to VEPPS unit, unless stated otherwise, all factory assembled.
Colour/ Finish	Rouge (VEN324 \| LRV 17). Papaya (VEN370 \| LRV 35). Golden (VEN366 \| LRV 52). Canary (VEN365 \| LRV 65). Lime (VEN354 \| LRV 54). Clover (VEN378 \| LRV 20). Olive (VEN367 \| LRV 38). Duck Egg (VEN368 \| LRV 54). Marine Green (VEN360 \| LRV 46). Hydrangea (VEN361 \| LRV 55). Cornflower Blue (VEN359 \| LRV 22). Pacific (VEN353 \| LRV 20). Peacock (VEN371 \| LRV 25). Teal (VEN377 \| LRV 11). Indigo (VEN356 \| LRV 8). Merlot (VEN364 \| LRV 8). Macaroon (VEN348 \| LRV 24). Peony (VEN376 \| LRV 52). Porcelain (VEN352 \| LRV 81). Suede (VEN369 \| LRV 66). Cloud (VEN351 \| LRV 58). Shadow (VEN350 \| LRV 37). Gunmetal (VEN349 \| LRV 10). Noir (VEN337 \| LRV 5). Steel (VEN319 \| LRV 42). Light Parchment (VEN363 \| LRV 57). Grey Parchment (VEN362 \| LRV 31). Vintage Grey (VEN372 \| LRV 27). Weathered Grey (VEN358 \| LRV 21). Black Ash (VEN374 \| LRV 9). African Wenge (VEN373 \| LRV 11). Dark Walnut (VEN355 \| LRV 13). Golden Oak (VEN357 \| LRV 36). Soft Oak (VEN375 \| LRV 45). Show more
Locks	Without locks.
Edges	Square edged.
