Panelboard 6" Smooth Plank

Verified by manufacturer 3 months ago

Longboard Products Third party certifications:
  • EPD

    EPD

    Certificate type

  • UKAS

    UKAS

    Certificate type

  • Declare

    Declare

    Certificate type

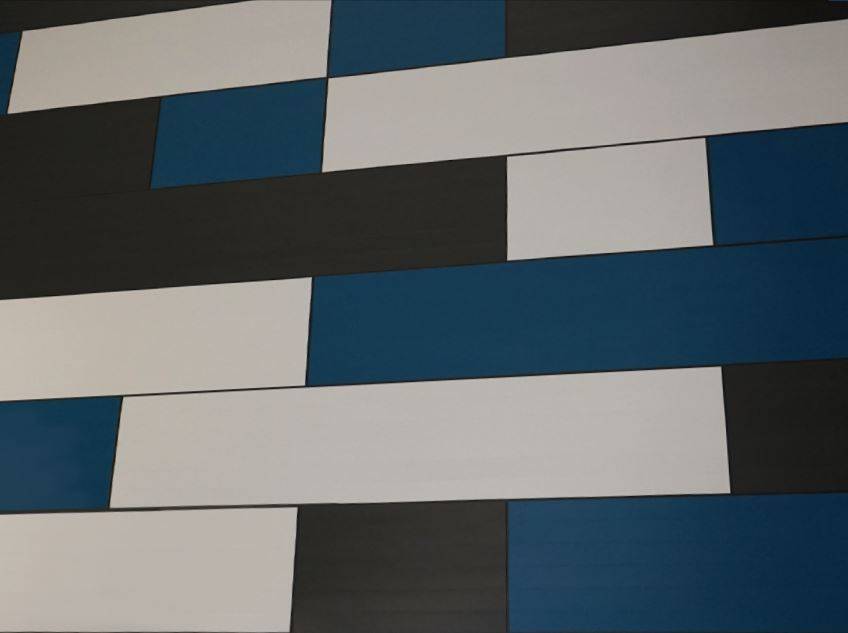

Smooth panelboard plank for horizontal applications.

Jump to:
+44 2039911138 Website

Application

For use as a closed joint rainscreen or facade panelized siding system.

Description

Made of 100% extruded architectural aluminum, the Longboard Tongue & Groove aluminum profile system is built to provide a simply stunning solution for both siding and soffit. Easy to install, non-combustible, and weather resistant, this system complements any interior or exterior building design whether long or short in length.


Manufactured in 24 foot lengths they are easily fabricated whether in a pre-fab facility or in the field to suit your project’s conditions. Click on a profile below to view more product details.

General information

Color

Bronze

Blue

Black

Brown

Grey

Show more

Finish

  • Woodgrain finish.
  • Solid colour finish.
  • Specialty finish.


Gloss

Powder-coated

Material

Aluminium

Extruded aluminium.

Shape

Rectangle

Horizontal orientation.

Length

7315.2 mm

Height

152.3 mm

Warranty description

15 year

Surface finish.

50 year

Aluminium material.

20 year

Uniclass

Pr_25_71_51_06 Aluminium traditional sheetsPrimary

CAWS

H72/3 Aluminium sheet fully supported roof covering

H72/130 Aluminium sheet fully supported wall covering

Specification data - Aluminium traditional sheets

Temper

T5.

Factory finishes

For Woodgrains, Solid and Specialty colour finishes, refer to colour specification.

Powder coated.

Thickness

Base metal thickness.

1.57 mm.

1/16".

Reaction to fire

-

External face

Class A Non-Combustible by ASTM E136 and ASTM E84.

Internal face

Class A Non-Combustible by ASTM E136 and ASTM E84.

Colour

  • Woodgrain, solid and specialty custom colours, with solid colour matching available (additional lead times apply).
  • Consult manufacturer for information.


Western cedar.

Woodgrain.

Dark cherry.

Woodgrain.

Light cherry.

Woodgrain.

Dark fir.

Woodgrain.

Light fir.

Woodgrain.

Show more

Accessories

Available in same material and finishes as siding.

Not required.

5/8" Starter J-track.

5/8" J-track.

5/8" two piece J-track.

1 3/8" two piece J-track.

Show more

Profile

152 mm.

6".

Length

7315.2 mm.

24 ft.

Material

Aluminium alloy 6063-T5.

Gloss level

30 (±5).

Fixing

Planks: Quick-Screen clips with eight screws at 845 mm (32") centers (standard), Trims: Hard fasten with eight screws at 634 mm (24") centers.

  • Screws by others.
  • Quick-Screen clips included: 90 pcs/box.

Orientation

Horizontal application.

Weight

7.32 kg/m² (approximate).

1.5 lbs/sq.ft.

Maximum wind loading

3352 Pa.

70 psf.

Sustainability data

Contains Red List materials

No

Country of material origin

Canada

Country of product manufacture

Canada

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.75 kg CO₂ eq/kg

Recyclability

100%

The extrusion does not contain any plastic elements.

Recycled content

50 %
