Application

  • Utilities and industrial units.
  • Perimeter fencing, high and medium security.
  • Airports.
  • Retail.

Description

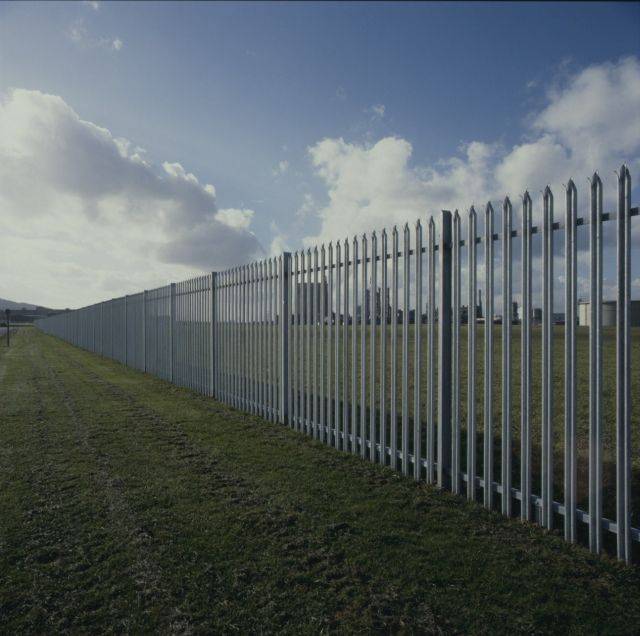

Palisade fencing is suitable for locations requiring a relatively high level of security and vandal resistance. It is especially suitable for industrial sites because it is highly resistant to damage and is difficult to climb. For greater security, toppings can be added or a pulse monitored system used.

Features and benefits:

  • Palisade can be installed on sloping terrain.
  • Palisade has no footholds, hence it is very difficult to climb.
  • Available in ‘W’ section for higher security applications and ‘D’ section for medium to low security applications. The fence can be supplied with a galvanized finish or galvanized and powder coated green or black, with a range of other colours available on request.

Applications:

  • Utilities and industrial units.
  • Perimeter fencing, high and medium security.
  • Airports.
  • Retail.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Uniclass 2015
Steel palisade panel fencing systems (Ss_25_14_63_85)Primary
Specification data - Steel palisade panel fencing systems
Product Reference

Palisade Fencing PCD16

Size

As drawing

Insert details.

As schedule

Insert details.

Colour/ Finish

Galvanized

Galvanized and powder coated black

Galvanized and powder coated green

Galvanized and RAL colour

Available on request; insert requirements.

Accessories

None

Extension for barbed wire

Extension for razor wire

Galvanized bolts with shear nuts

Stainless steel rivets

Support feet

For heights over 2.4 m.

Standard product features

Width:

2750 mm (17 pales per bay).

Post section:

102 x 44 mm.

Rails:

50 x 50 x 2.75 mm.

Product Options

Size:

  • Fence heights available include: 1.5, 1.8, 2, 2.1, 2.4, 3 and 3.6 m.
  • 'W' section: 2–3 mm, depending on fence height.
  • 'D' section: 2.5–3.5 mm, depending on fence height.

Colour/ Finish:

Hot dip galvanized to BS EN ISO 1461:2009 and additionally polyester coated to a range of RAL colours.

Fasteners:

Galvanized bolts with shear nuts or stainless steel rivets.
