Fencing system.

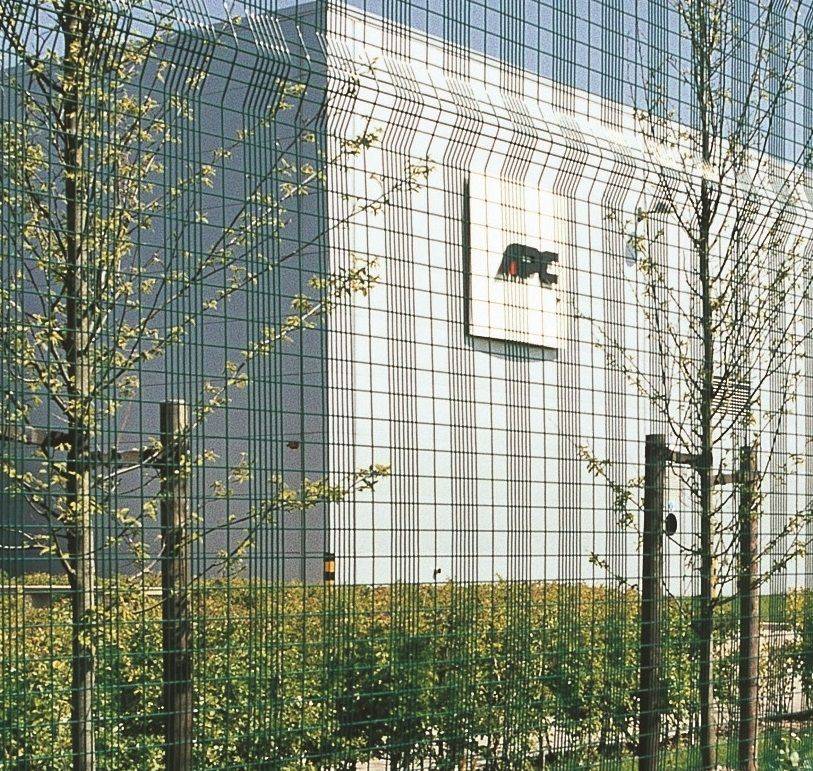

Weldmesh fence panel with mesh pattern and integral 'V' forms. Strong, lightweight construction having improved performance against 'cut-through' and climbing, whilst providing clear visibility along the fence line. Multi-lift panels to achieve fence heights in excess of 2400 mm.
Robusta gates available to provide additional security.
Suitable for airports, schools, parks, playground and sport stadia. Complies with BS 1722-14, category 1 and 2.
Paladin® FX:
As Paladin® but with 5 mm horizontal and 4 mm vertical diameter wire mesh.
All materials covered by a ten year guarantee.
Color | Green (RAL 6005), black (RAL 9005) |
Uniclass 2015 |
Product Reference | Paladin® ClassicPaladin® FX |
Gate | - |
Type | Single swing gatesDouble swing gatesR1650Cantilever sliding gates. R2000Cantilever sliding gates. R2800Cantilever sliding gates. Sliding gates on rail |
Size (w x h) | ___ x ___ mmMultiple width or height options also bespoke sizes available. W 900 - 8000 mm x H 900 - 3000 mm. |
Colour | RAL 6005Green. RAL 9005Black. RAL 7030Grey. RAL 9010White. RALOther colours available upon request. |
Operation | ManualMotorized |
Panel | - |
Height | 900 mm1200 mm1800 mm2000 mm2400 mm |
Colour | RAL 6005Green. RAL 9005Black. RALOther colours available upon request. |
Standard product features | Panel width: 3000 mm. Panel mesh and wire: - Paladin® Classic:
- Paladin® FX:
Post:
|
Product Options | Gate: - R1650 - Robusta cantilever sliding gates:
- R2000 - Robusta cantilever sliding gates:
- R2800 - Robusta cantilever sliding gates:
- Robusta double swing gates:
- Robusta sliding gates on rail:
- Robusta single swing gates:
Panel: - Colour: Galvanized and polyester powder coated in either green (RAL 6005) or black (RAL 9005). Other colours are available on request. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | - | 3 | 2.1 |
![]() | Revit 2017 | 3 | 2.1 |
