P50 System
Application

Suitable for use in office spaces and other large communal areas.

Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.

Description

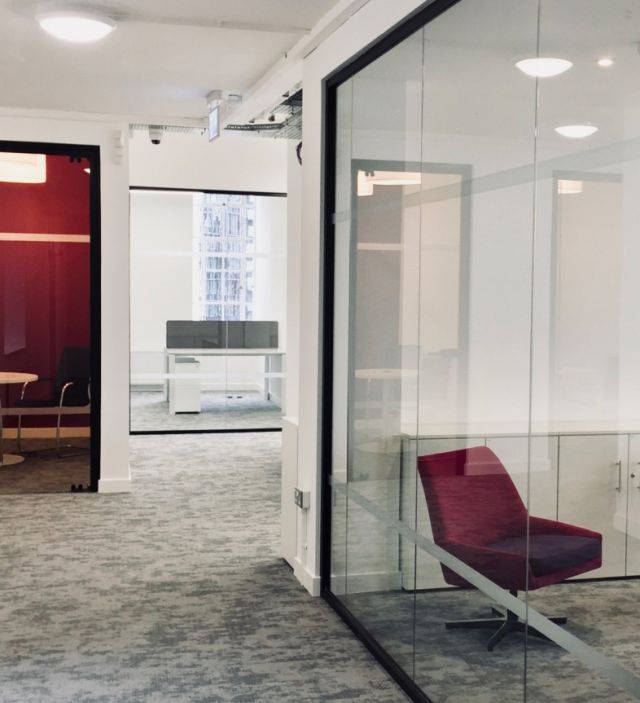

Single glazed demountable partition system.

Features and benefits:

  • Flush, frameless system.
  • Single glazed, but can be combined with double glazed doors. Glass thicknesses of 10–12.8 mm can be specified.
  • Supplied with minimal aluminium framework.
  • Quick and easy to install due to the small number of profiles.
  • Can be used in combination with or separate to the P50 Brooklyn - consult manufacturer for details.
  • Various door options are available.

Applications:

Suitable for use in office spaces and other large communal areas.

Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.

General information
Uniclass 2015
Ss_25_12_65_65 Plasterboard panel partition systemsPrimary
CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Plasterboard panel partition systems
Product Reference

P50 System

P50 Brooklyn System

Module size

Standard module size: 200–1200 mm. Maximum height: 3000 mm. Consult manufacturer and insert requirements.

Glazing -
Type

Single glazed

Thickness/ Material

10 mm clear float toughened

10 mm low iron toughened

10.8 mm acoustic laminated

12 mm clear float toughened

12 mm low iron toughened

12.8 mm acoustic laminated

Head/ Base channel -
Type

50 x 50 mm

Finish

Black

Door

44 mm timber door

Supplied with offset pivot hinge.

54 mm timber door

Supplied with offset pivot hinge.

Double glazed framed door

Supplied as a sealed unit with lever handle, offset pivot hinge and drop down seal. Achieves Rw 36 dB acoustic performance.

Single glazed door with over panel

Supplied with 12 mm toughened glass and offset pivot hinge.

Single glazed frameless door

Supplied with 12 mm toughened glass, lever handle and offset hinge.

Single glazed sliding door

Supplied with 12 mm toughened glass.

Solid door

Flush door, supplied with lever handle and offset pivot hinge.

Dry joints

Consult manufacturer and insert requirements.

Wall abutment

Consult manufacturer and insert requirements.

Standard product features

Thickness:

50 mm.

Acoustic performance:

  • 10 mm toughened glass: Rw 34 dB.
  • 12.8 mm acoustic laminated: Rw 38 dB.

Product Options

Module size:

Other glass sizes are available, consult manufacturer for details.

Head/ Base channel:

- Finish:

Different finishes are available on request, consult manufacturer for details.
