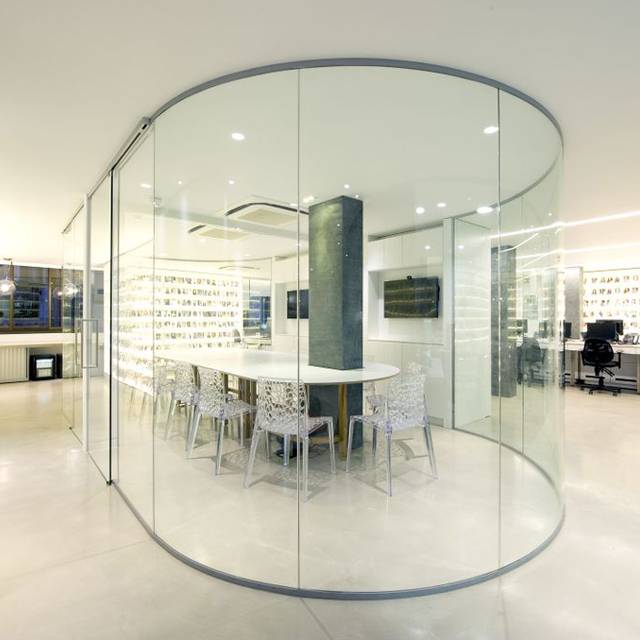

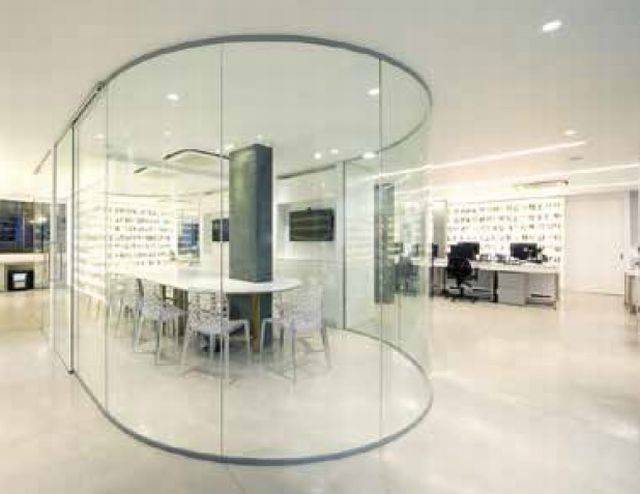

p20 System - Panel partitions
Application

With its slim frame and sleek look, p20 is suitable for many applications and aesthetics. It is ideal for clients who are looking to divide a room without disturbing the space and light. p20 can be either run from wall to wall, for a traditional glass partition, or if acoustics aren’t a priority, used to create free standing glass screens for an original look.

Description

Slimline single glazed partition system with 20 mm wide framework and frameless glass joints. It is available in a wide range of glazing joints - Vertex, Linea, Nova, Solar or silicone – providing a large range of design options. Doorsets can be swing or sliding, glass or timber, with the possibility of incorporating various types of ironmongery. Glass can be customized using acid etching, sandblasting, screen printing, switchable glass or simple applied film manifestation.

Two framing versions (standard and XL) allow a range of glass thicknesses, between 10–21.5 mm to be accommodated. The two-part pressure fit PVC gasket system ensures the glass is firmly gripped in place, providing superior performance compared to other methods. As a result, p20 can achieve glass storey heights of up to 4600 mm.

The p20 system has a range of purpose designed deflection heads to provide either ±15 mm, ±25 mm or ±40 mm tolerances. Using precision engineered two-part aluminium profiles, the deflection heads not only accommodate building movement, but also provide a tolerance when the partition is being relocated.

Can be manufactured to conform with BREEAM, SKA and LEED requirements, contact manufacturer for more information.

Applications:

With its slim frame and sleek look, p20 is suitable for many applications and aesthetics. It is ideal for clients who are looking to divide a room without disturbing the space and light. p20 can be either run from wall to wall, for a traditional glass partition, or if acoustics aren’t a priority, used to create free standing glass screens for an original look.

General information

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels

Product Reference

p20 Glazed Frameless Partition System

20 mm wide framework.

p20 XL Glazed Frameless Partition System

27 mm wide framework.

Partition

-

Size (w x h)

As drawing

Insert reference.

Strength grade

Not applicable

For non-load bearing applications.

0.74 kN/m

1.5 kN/m

3.0 kN/m

Sound insulation (to BS EN ISO 10140-2 and ISO 717-1)

35 dB (Rw)

36 dB (Rw)

37 dB (Rw)

38 dB (Rw)

40 dB (Rw)

41 dB (Rw)

For p20 XL only.

42 dB (Rw)

For p20 XL only.

43 dB (Rw)

For p20 XL only.

Finish/ Colour

Etched and anodized

Insert requirement.

Linished and chemically brightened

Insert requirement.

Polished and chemically brightened

Insert requirement.

Polyester powder coated, RAL

Insert colour requirement.

Glazing

-

Type

Single, offset glazed heat soaked toughened glass

Single, offset glazed laminated glass

Single, offset glazed toughened glass

Junctions/ corners

Linea dry joint

Nova aluminium dry joint

Silicone joint

Vertex dry joint

Head detail

No deflection

27 x 20 mm (d x w) aluminium channel (K201–K204 to suit).

±15 mm deflection

60 x 35 mm (d x w) two-part aluminium channel (K205–K208 to suit).

±25 mm deflection

90 x 35 mm (d x w) two-part aluminium channel (K209–K212 to suit).

±40 mm deflection

145 x 35 mm (d x w) two-part aluminium channel (K623–K626 to suit).

Doorset

-

Type

Insert requirement from 'Options' below.

Size (w x h)

As drawing

Insert reference.

As Schedule

Insert reference.

Finish/ Colour

Etched and anodized

Insert requirement.

Linished and chemically brightened

Insert requirement.

Polished and chemically brightened

Insert requirement.

Polyester powder coated, RAL

Insert colour requirement.

Vision panels

Not applicable

For glazed doors.

Required

Insert requirements, for timber doors.

Ironmongery

Insert requirements from Planet's standard ironmongery suite.

Manifestation

Two rows of 50 mm dots, opal frost

Two rows of 50 mm squares, opal frost

Special order

Insert requirement, artwork and custom manifestations are available, contact manufacturer for information.

Accessories

Insert requirements, contact manufacturer for information.

Standard product features

Framing:

Extruded aluminium sections.

Floor detail, wall abutments, skirtings and sills (p20):

27 x 20 mm (d x w) two-part aluminium channel.

Fire resistance of complete system (to BS 476-22):

Non-fire rated.

Product Options

Partition size:

Available up to 4600 in height (for partitions over 3000 mm in height, please consult manufacturer for further information).

Doorset type:

- Frameless (no door frame) opening with:

  • Planet frameless 12 mm single door leaf - non-acoustic.
  • Planet frameless 12 mm double door leaf - non-acoustic.
  • Planet EclipseClear sliding 12 mm single door leaf, top hung - non-acoustic.
  • Planet EclipseTec sliding 12 mm single door leaf, top hung - 27 dB (Rw).

- Planet K517 aluminium door frame, with single leaf set:

  • Planet IsoClear 12 mm door leaf - non-acoustic.
  • Planet IsoClear 12 mm door leaf - 34 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf - 39 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf - 42 dB (Rw).
  • Planet IsoPro single glazed metal framed door leaf - 34 dB (Rw).
  • Planet IsoTec 12 mm door leaf - non-acoustic.
  • Planet IsoTec 12 mm door leaf - 34 dB (Rw).
  • Planet Sonotec double glazed metal framed door leaf - 39 dB (Rw).
  • Planet Sonotec double glazed metal framed door leaf - 42 dB (Rw).
  • Planet Sonotec single glazed metal framed door leaf - 34 dB (Rw).

- Planet K518 aluminium door frame, with single leaf set:

  • Timber 44 mm leaf on hinges - 32 dB (Rw) with threshold seal.
  • Timber 54 mm leaf on hinges - 33 dB (Rw) with threshold seal.

- Planet K521 aluminium door frame, with hospital door:

  • Planet IsoClear 12 mm door leaf - non-acoustic.
  • Planet IsoPro double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf (rebated) - 33 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf (rebated) - 35 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf (rebated) - 36 dB (Rw).
  • Planet IsoTec 12 mm door leaf - non-acoustic.
  • Planet Sonotec double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).

- Planet K521 aluminium door frame, with double door:

  • Planet IsoClear 12 mm door leaf on hinges - non-acoustic.
  • Planet IsoClear 12 mm door leaf on offset pivot - non-acoustic.
  • Planet IsoPro double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).
  • Planet IsoPro single glazed metal framed door leaf (non-rebated) - non-acoustic.
  • Planet IsoTec 12 mm door leaf on hinges - non-acoustic.
  • Planet Sonotec double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).
  • Planet Sonotec single glazed metal framed door leaf (non-rebated) - non-acoustic.

- Planet K523 aluminium door frame, with double door:

  • Timber 44 mm leaf on hinges - non-acoustic.
  • Timber 54 mm leaf on hinges - non-acoustic.

Glazing manifestation:

Should be in accordance with the requirements of Approved Document K.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
