P Series Automatic Arm Barrier
Description

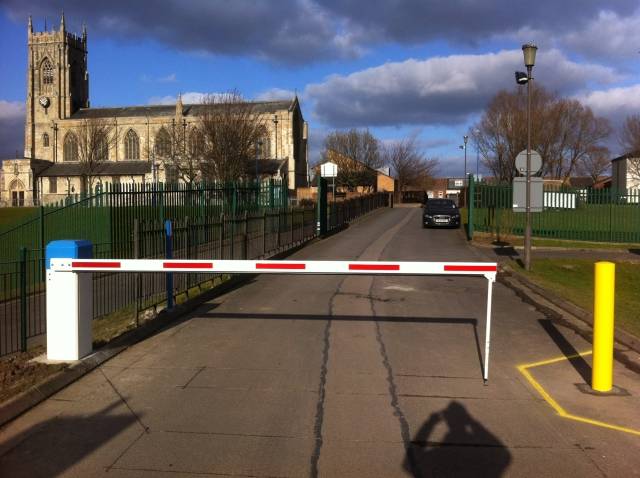

With fast operating speeds, the AUTOPA P Series Automatic Arm Barrier is ideal for controlling access to car parks and commercial sites. Designed for entrances up to 5 m wide, the barrier is compatible with a variety of different control mechanisms including remote controls, keypads and swipe cards. Manufactured from high quality aluminium, this system has an IP54 protection rating.

Features:

  • Main body manufactured from aluminium.
  • Boom manufactured from aluminium with a rubber tube underside.
  • Available flanged for bolting down only.
  • Boom lengths available at 2.5, 3.0, 3.5, 4.0, and 5.0 m.
  • Compatible with a variety of different control mechanisms.
  • IP54 rated.

General information
Features

Main body manufactured from aluminium

Boom manufactured from aluminium with a rubber tube underside

Available flanged for bolting down only

Boom lengths available at 2.5, 3.0, 3.5, 4.0, and 5.0 m

Compatible with a variety of different control mechanisms

IP54 rated

Uniclass 2015
Pr_30_59_59_72 Rising arm vehicular barriersPrimary
CAWS

Q41/190 Vehicle access point barriers

Specification data - Rising arm vehicular barriers
Product Reference

2.5 m Automatic Arm Barrier: 138105025

2.5 m boom.

3.0 m Automatic Arm Barrier: 138105030

3.0 m boom.

3.5 m Automatic Arm Barrier: 138105035

3.5 m boom.

4.0 m Automatic Arm Barrier: 138105040

4.0 m boom.

5.0 m Automatic Arm Barrier: 138105050

5.0 m boom.

Reinforcement

Not required

Required

Accessories

See 'Options' and insert requirements.

Standard product features

Main body dimensions:

  • Height: 1100 mm.
  • Width: 300 mm.
  • Depth: 360 mm.

Weight:

  • 2.5 m Automatic Arm Barrier: 57.0 kg.
  • 3.0 m Automatic Arm Barrier: 58.0 kg.
  • 3.5 m Automatic Arm Barrier: 58.0 kg.
  • 4.0 m Automatic Arm Barrier: 59.0 kg.
  • 5.0 m Automatic Arm Barrier: 60.0 kg.

Product Options

Accessories:

  • Fixed catch post: 138105930.
  • Replacement booms are available.
  • A range of control options are available extra, including remote controls, swipe cards and keypads.

Colour/ Finish:

Galvanized finish as standard. Colour coated options are available (please state RAL/BS numbers).
