Overhead Door Closer With Guide Rail With Semi-Radius Cover EN 2-4 (HUKP-0204-03) - Door accessories
Verified by manufacturer 2 months ago

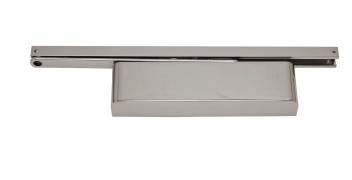

Door closer with guide rail with semi-radius cover.
Application
Suitable for high use traffic, timber door sets (not suitable for steel doors and frames).
Description
Door closer with guide rail with semi-radius cover.
Features and benefits:
- Variable rack and pinion power closer for high use traffic.
- Slimline design (shown with with semi-radius cover).
- Power adjustable closing speed, backstop and latch action.
- Maximum opening angle 110° - single action.
- Power size EN 2-4 (Pull side) EN 3-4 (Push side).
- Maximum door weight 80 kg.
- Maximum door width 1100 mm.
General information
Color | Bronze Black Silver White Manufacturer guidanceRAL colour available to special order. |
Finish | Polished Satin Matt |
Material | Stainless steel |
Shape | Rectangle |
Length | 260 mm |
Width | 38 mm |
Height | 55 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | 4. |
Safety | 1. |
Closer functions | Latching. |
Materials and finishes | |
Bodies | Stainless steel.Polished.Satin.Matt. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Polished stainless steel.Satin stainless steel.Silver sprayed.Light bronze.Dark bronze.Hafele black.Matt black.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 689. |
Dimensions | 220 x 38 mm. Guidance for specification option: Length x width. |
Maximum weight | 80 kg. Guidance for specification option: Maximum door weight. |
Opening | 110°. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Literature
7. Project - Architectural Door Controls
