Overflow Drains
Description

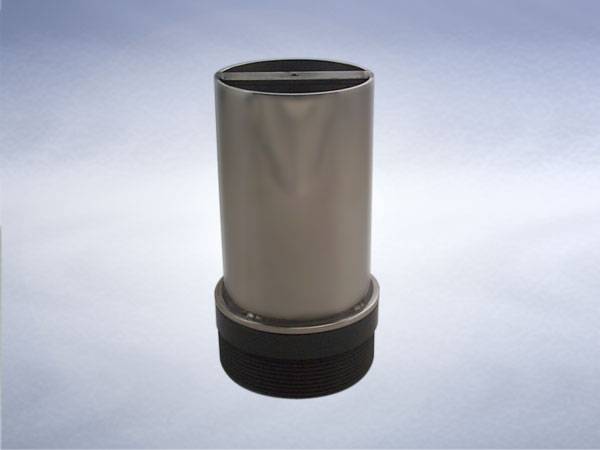

Drain top stand pipes and outlets, to prevent the depth of water exceeding the required maximum. A polished, stainless steel standpipe receives excess or surges of water for discharge via any Vari-Level body. The standpipe is easily removed when the pool/ font is required to be emptied.

General information

Material

Stainless steel

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Overflow Drains

Type

K3201

Stainless steel standpipe for use with vari-level bodies, without cap.

K3202

Stainless steel standpipe for use with vari-level bodies, with cap.

K3211

Stainless steel standpipe for use with vari-level bodies, for tiles etc.

K3212

Stainless steel standpipe for use with vari-level bodies, for vinyl etc.

Stand pipe length

___ mm

Standard product features

Material:

Stainless steel.

Product Options

Type:

  • K3201 and K3202: For screed finishes.
  • K3211: For marble, ceramic tiles etc. floor finishes.
  • K3212: For sheet floor covering such as vinyl and certain trowel applied resins.

Length:

Stand pipes are manufactured to specific requirements; minimum 100 mm.
