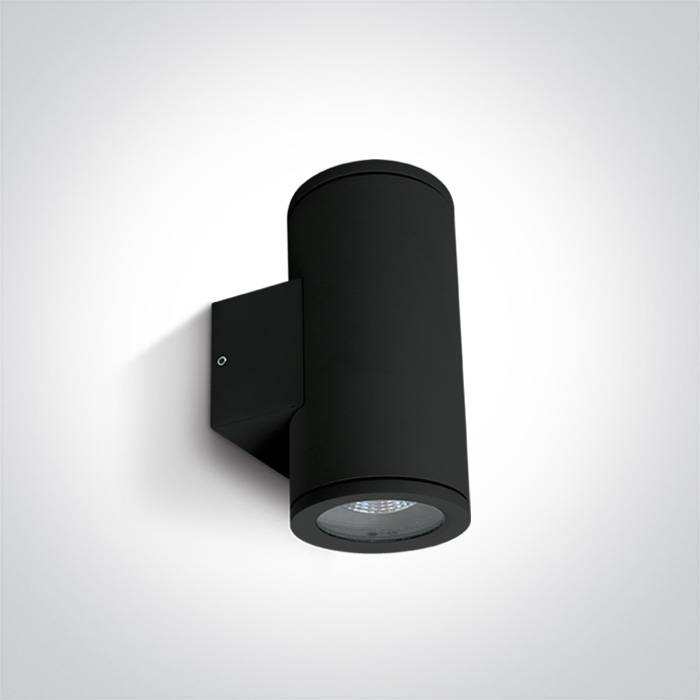

Outdoor Up and Down Wall Light GU10 67400B
Verified by manufacturer 7 months ago

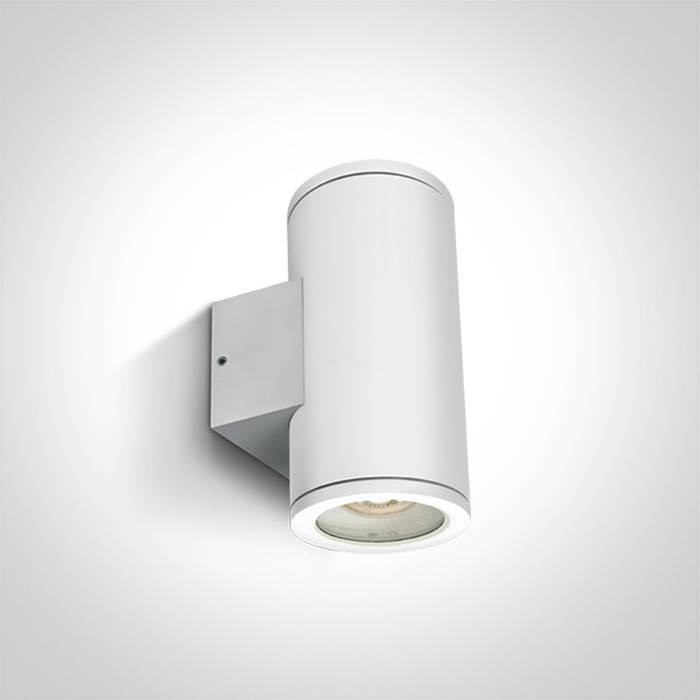

67400B/W White 2x10W GU10 die cast outdoor wall light
67400B/W White 2x10W GU10 die cast outdoor wall light
Certificate of Approval
Certificate type
2 x 10W MR16 GU10 outdoor wall light.
Application
Wall luminaire, indoor or outdoor use.
Description
2 x 10 W MR16 GU10 outdoor wall light.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- IP54.
- Two lamps, one on each end of the unit.
- For mounting on walls, indoors or outdoors.
- Die cast housing available in five colours.
- Single lamp version available, specified separately.
General information
Color | White Black Grey Guidance for specification option: Including Anthracite. Brown Guidance for specification option: Rust brown. |
Material | Aluminium |
Shape | Circle |
Width | 80 mm Guidance for specification option: LED housing diameter (not including bracket). |
Height | 173 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/510 Luminaires V90/510 General purpose luminaires |
Specification data - Surface luminaires
Standard | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | White die cast outdoor wall light, 2 x GU10, MR16.Guidance for specification option: Replaceable lamps. |
Classification | |
Circumstances of use | Normal. |
Nominal voltage | 100–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
Non-LED luminaires | |
Number of lamps | 2. |
Lamp properties | |
Wattage | 10 W. |
Beam angle | Manufacturer's standard. |
Third party certifications
Certificate of Approval
DECLARATION OF CONFORMITY 67400B
Literature
Installation Instructions 67400B
