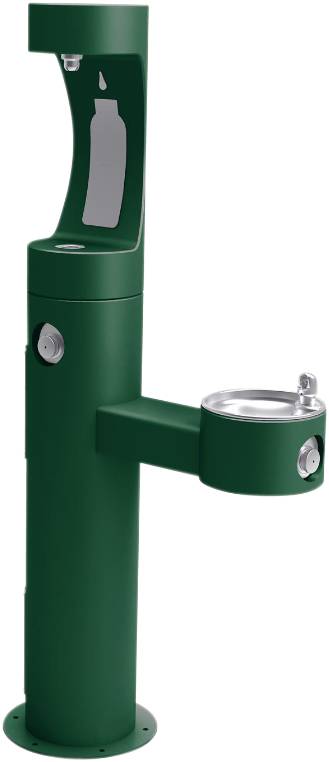

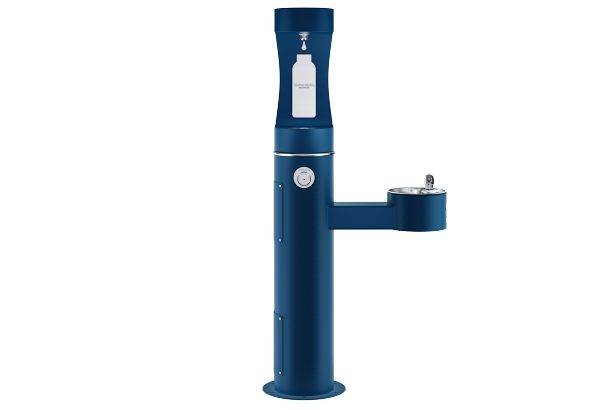

Outdoor bi-level HydroBoost bottle filling station with floor mounted pedestal.

Jump to:
+44 (0)1207 572 000 www.miw.co.uk

Application

Suitable for outdoor use. Can also be used indoors.

Description

Outdoor bi-level bottle filling station with pedestal. Non-filtered and non-refrigerated.

Heavy-gauge steel panels and a one-piece bubbler tap make the unit suitable for outdoor installation. It has an attractive powder-coat finish, applied by E-coat immersion technology.

It has a bubbler tap and a bottle filling station, and meets the requirements of the Americans with Disabilities Act (ADA). The bottle filler delivers water at a rate of one gallon per minute, utilizing laminar flow for a smooth, mess-free drinking experience. The softly rounded corners and a contoured basin mean that water also drains quickly, preventing any splashing or stagnation despite this fast water flow.

The bubbler is chrome-plated and cast from a one-piece design, providing it with the strength and durability to be suitable for outdoor use as well as indoor. On top of this, the unit features a vandal-resistant push button actuation system, whereby a simple button releases the water, as opposed to a switch or handle which could be twisted or snapped off. A heavy-gauge steel access panel also offers protection against impact from vandals or extreme weather, and anti-vandal screws mean that while access to plumbing connections is easy for authorised persons, it is impossible for anyone else.

The E-coat immersion covering prevents any corrosion or rusting, which could affect the physical appearance of the bottle filling station, and even compromise the cleanliness of the water. E-coat immersion involves an even thickness of paint being applied using electrical charges, both on the inside and outside of the product. This reduces the risk of rust developing and keeps the water pure and free from contamination.

The in-line strainer also helps to keep water clean, and due to this the unit meets the strict criteria of the American NSF/ANSI 61 water hygiene regulations. The strainer, located inside a 10 mm water inlet, prevents any dirt or other contaminants of 0.14 mm or larger form entering the waterways or the drinking bottle. Furthermore, an integral hood design on the one-piece bubbler tap prevents the spread of infections or germs through the close contact involved in everyday drinking from a shared fountain.

Features and benefits:

  • Includes one upper bottle filler station and one lower bubbler station.
  • Laminar flow provides clean fill with minimal splash.
  • Base material constructed from marine-grade 1.4401 (316) stainless steel providing corrosion protection from even the most corrosive elements.
  • Vandal-resistant bubblers are one-piece, chrome plated with integral hood guard design to prevent contamination from other users, airborne deposits and tampering.
  • Available in 12 colours.
  • WRAS and BREEAM approved, and Greenspec® listed.

Applications:

Suitable for outdoor use. Can also be used indoors.

General information

Finish

Powder coated

Material

Marine-grade 1.4401 (316) stainless steel

Uniclass 2015

Pr_40_70_15_96 Water coolersPrimary

CAWS

N13/379 Drinking fountains

Specification data - Water coolers

Product Reference

Halsey Taylor 4420BF1U

Colour

Beige (BGE)

Black (BLK)

Blue (BLU)

Brown (BRN)

Evergreen (EVG)

Grey (GRY)

Orange (ORN)

Purple (PUR)

Red (RED)

Terracotta (TER)

Yellow (YLW)

White (WHT)

Filtration

Not required

Required

Consult manufacturer for information.

Accessories

None

4471LHB

Locking hose bib.

97890C

Direct bury adaptor.

Standard product features

Size (h x w x d):

737 x 254 x 1626 mm.

Weight:

86 kg.

Material:

Marine-grade 1.4401 (316) stainless steel.

Finish:

Powder coated.

Fixing:

Floor mounted or free standing. Single pedestal included.

Water temperature:

Non-refrigerated, ambient.

Drain:

32 mm standard waste required.

Bubbler:

Vandal resistant.

Activation:

Front button.

Rated power input:

None.

Nominal voltage:

None.

Third party certifications

  • WRAS: Certificate: 1707102 - Approved
  • GreenSpec: Listed
  • BREEAM: Approved
  • WQA: Certificate: NSF/ANSI 61, 372 - Approved
