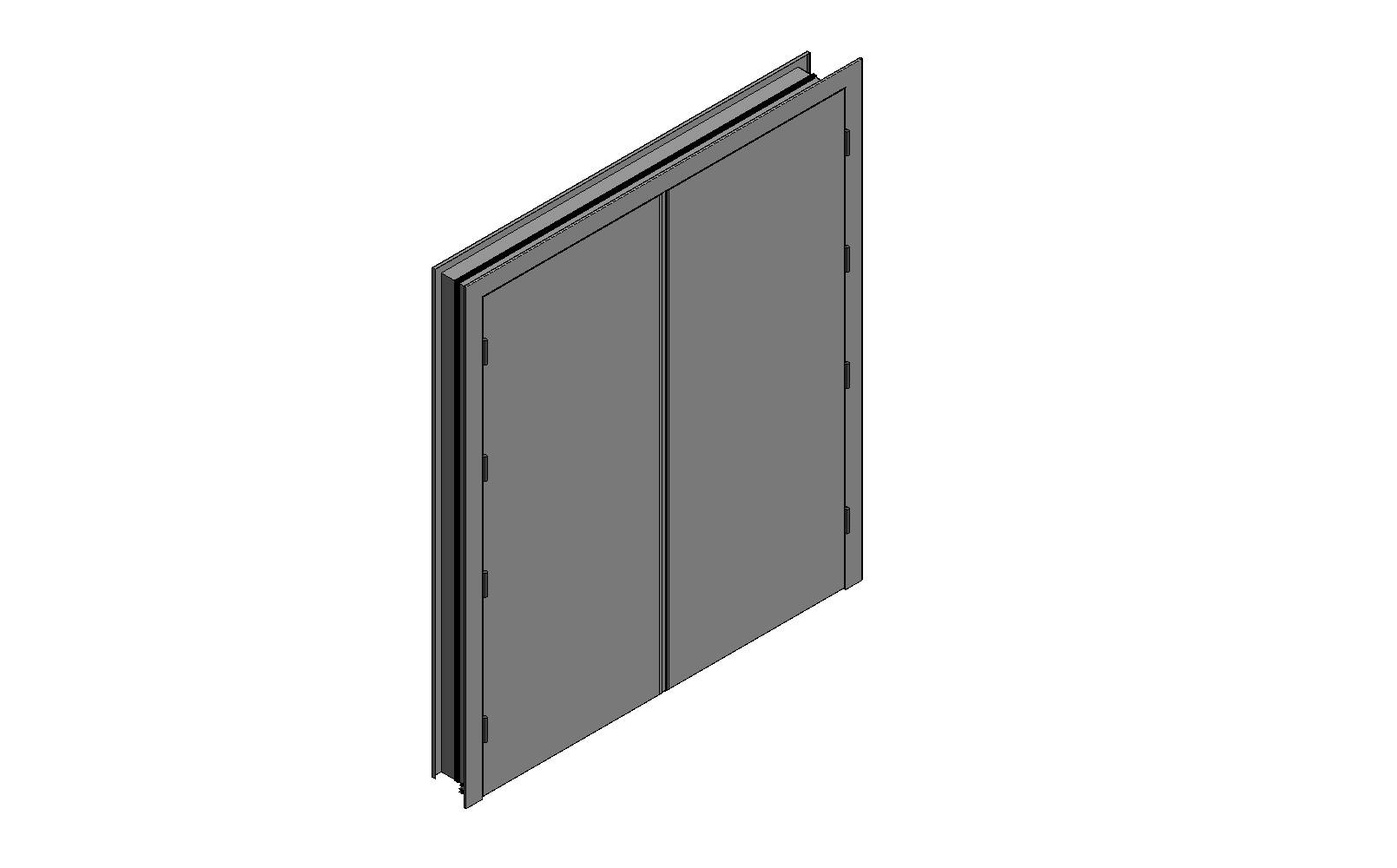

OUTA-DOR STD C - Equal Frame

Name: OUTA-DOR STD C - Equal Frame
Brand: Robust UK Ltd
SKU: puemvwT5SYVh5DHFzTr7N1

Verified by manufacturer over a year ago

External steel door.

Jump to:

Application

Suitable for use in a wide range of external applications – from schools and offices to multi-storey car parks and supermarkets.

External steel door.

Features and benefits:

Strong, durable and versatile.
Manufactured from corrosion resistant Magnelis© steel as standard, this can be upgraded to 1.5 mm or 2.0 mm sheets to increase the toughness of the door skin.
OUTA-DOR is well protected from the elements.
All our doorsets are supplied fully assembled with hardware fitted, which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site – adding value to a project.

Shape	Rectangular
Finish	Polyester powder coated Stainless steel Unfinished Woodgrain
Material	Steel
Size	1804 x 2110 mm
Finish	Polyester powder coated Stainless steel Unfinished Woodgrain

Uniclass	Ss_25_30_20_25 Doorset systemsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	External

Doorset	-
Type	Metal doorsets.
Glazing	Not required. 6 mm thick GWPP. Georgian wire polished glass. 19 mm thick double glazed unit. 6.4/ 6/ 6.4 mm laminate. Double glazed. As standard. Special order.
Thresholds	-
Weather or seal stripping	Aluminium threshold strip. Weather bar with rain deflector. For inward opening doorsets as standard.
Execution	Fixing hardware.

Product Reference	OUTA-DOR STD C - Equal Frame
Material Door frame.	Magnelis©. Folded from 1.6 mm thick Magnelis© sheets.
Coating Frame finish.	[-] - Insert requirements.
Colour Frame finish.	[-] - Insert requirements.
Core Door leaf.	Mineral wool. With steel strengtheners: 2.4 W/m²K U-value; lamella: 2.4 W/m²K U-value. Polyurethane. 1.6 W/m²K U-value. Self-supporting resin-impregnated honeycomb. Standard, 3.1 W/m²K U-value. Solid timber. 2.9 W/m²K U-value.
Coating Door leaf finish.	Polyester powder coated, non-standard colour range. Insert colour requirement. Polyester powder coated, standard colour range. Insert colour requirement. PVC laminate, standard range. Insert colour requirement. Stainless steel, brushed. Stainless steel, patterned. Stainless steel, polished. Woodgrain PVC laminate. Insert requirement. Unfinished. For site finishing. Show more
Material Door leaf material.	Magnelis© steel. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316).
