OUTA-DOR - Double - Solid Panel - External Double Leaf Steel Doorset

Verified by manufacturer over a year ago

Robust UK Ltd

External double leaf steel doorset without vision panels.

Jump to:
BIM object icon
+44 (0)1782 592900 Website

Application

For external use.

Description

Double leaf steel external doorset without vision panels.


Features and benefits:

  • 55 mm door leaf, with a choice of infill offering up to 1.6 W/m²K thermal value.
  • U channel adjustment sections allow greater tolerance in opening whilst also cloaking fixing points and minimizing mastic gaps.
  • Strong, durable and versatile.
  • Aluminium threshold strip/ weather bar with rain deflector for inward opening doorsets as standard.
  • Four stainless steel dog bolt hinges per leaf.
  • Fully CE marked.
  • Hardware is factory fitted, saving time and effort on site.
  • Locks are fitted into a purpose made internal reinforcement box not hung from the fore end plate loose into the leaf.
  • Self-cutting frame fixings and cover caps are provided along with spare hinge screws and driver bits.
  • A full fitting kit is supplied, including 12 mm Allen key to make frame adjustment easy, and a selection of drills for fitting into concrete or steel.
  • Ten year anti-corrosion warranty as standard.

General information

Finish

Unfinished

Woodgrain

Powder-coated

Guidance for specification option:

Polyester.

Material

Steel

Guidance for specification option:

Magnelis© steel or stainless steel.

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Outa-Dor

Specification data - Carbon steel doorsets

Configuration

Double leaf.

Doorset size

Guidance for specification option:

Insert requirements, maximum 1290–2600 x 2900 mm in 10 mm increments, or As drawing or As schedule.

Frame

-

Material

Magnelis©, profile type A.

Guidance for specification option:

100 mm depth.

Magnelis©, profile type B.

Guidance for specification option:

95 mm depth.

Magnelis©, profile type C.

Guidance for specification option:

Standard, 95 mm depth.

Magnelis©, profile type D.

Guidance for specification option:

145 mm depth.

Manufacturer guidance

Folded from 1.6 mm thick Magnelis© sheets. Screw and tab construction with four adjustable fixing feet per jamb A variable subframe is supplied as standard, which accommodates site tolerance of -0 mm/ +30 mm.

Threshold

Aluminium threshold strip.

Weather bar with rain deflector.

Guidance for specification option:

For inward opening doorsets as standard.

Finish

-

Coating

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Texture

Manufacturer’s standard.

Colour

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Installation fasteners

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Door leaf

-

Thickness

55 mm.

Core

Mineral wool.

Guidance for specification option:

With steel strengtheners: 2.4 W/m²K U-value; lamella: 2.4 W/m²K U-value.

Polyurethane.

Guidance for specification option:

1.6 W/m²K U-value.

Self-supporting resin-impregnated honeycomb.

Guidance for specification option:

Standard, 3.1 W/m²K U-value.

Solid timber.

Guidance for specification option:

2.9 W/m²K U-value.

Panel details

Solid panels.

Material

Magnelis© steel.

Guidance for specification option:

As standard.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Glazing

-

Type

Not required.

Finish

-

Coating

Polyester powder coated, non-standard colour range.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, standard colour range.

Guidance for specification option:

Standard, insert colour requirement.

PVC laminate, standard range.

Guidance for specification option:

Insert colour requirement.

Stainless steel, brushed.

Stainless steel, patterned.

Stainless steel, polished.

Woodgrain PVC laminate.

Guidance for specification option:

Insert requirement.

Unfinished.

Guidance for specification option:

For site finishing.

Texture

Manufacturer’s standard.

External colour

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Internal colour

As External.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Film thickness (minimum)

Manufacturer’s standard.

Hardware

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

Vision panels

Not required.

254 x 254 mm.

254 x 559 mm.

254 x 762 mm.

254 x 1219 mm.

Show more

Manufacturer guidance

Glazing type specified separately below.

Glazing

Not applicable.

6 mm thick GWPP (Georgian wire polished glass).

19 mm thick double glazed unit.

Guidance for specification option:

6.4/ 6/ 6.4 mm laminate.

Double glazed.

Guidance for specification option:

Standard.

Special order.

Guidance for specification option:

Insert requirement, contact manufacturer for information.

Manufacturer guidance

Louvre panels only.

Louvre panels

Not required.

457 x 457 mm, bottom, with fly mesh.

457 x 457 mm, bottom, without fly mesh.

457 x 457 mm, upper, with fly mesh.

457 x 457 mm, upper, without fly mesh.

Show more

Side/ over panels

Not required.

Flush, glazed.

Flush, louvred.

Flush, solid.

Hinged, glazed.

Show more

Manufacturer guidance

Insert drawing/ schedule reference as required.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

98%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

New materials only.

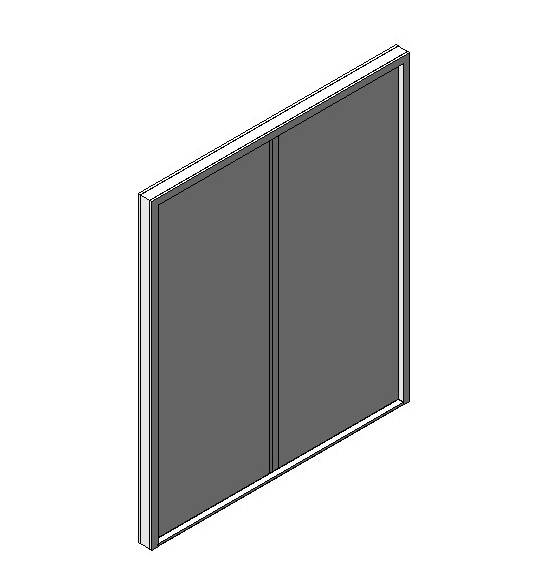

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017
