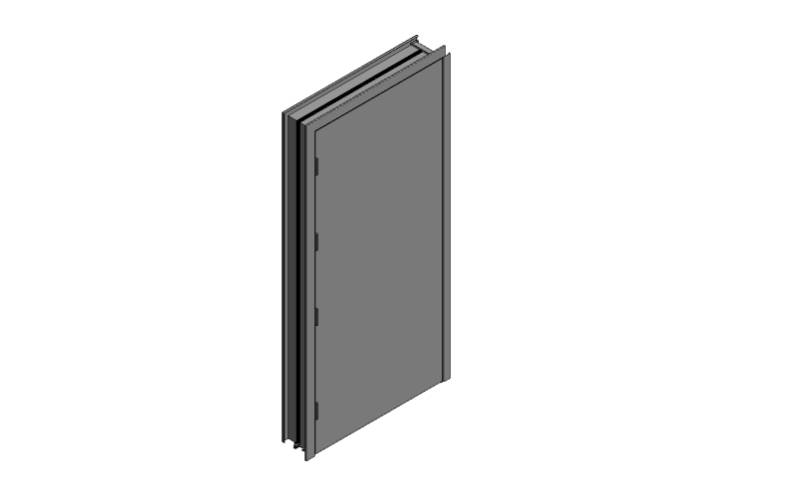

OUTA-DOR Double Rebate - Single Frame
Verified by manufacturer over a year ago
External steel door with double rebate frame.
Application
Suitable for use in a wide range of external applications – from schools and offices to multi-storey car parks and supermarkets.
Description
External steel door with double rebate frames.
Features and benefits:
- Strong, durable and versatile.
- Manufactured from corrosion resistant Magnelis© steel as standard, this can be upgraded to 1.5 mm or 2.0 mm sheets to increase the toughness of the door skin.
- OUTA-DOR is well protected from the elements.
- All our doorsets are supplied fully assembled with hardware fitted, which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site – adding value to a project.
General information
Shape | Rectangular |
Material | Steel |
Warranty description | Ten years |
Size | 1004 x 2110 mm |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Doorset systems
Doorset | |
Type | Metal doorsets. |
Glazing | Not required.6 mm thick GWPP.Guidance for specification option: Georgian wire polished glass. 19 mm thick double glazed unit.Guidance for specification option: 6.4/ 6/ 6.4 mm laminate. Double glazed.Guidance for specification option: As standard. Special order. |
Thresholds | |
Weather or seal stripping | Aluminium threshold strip.Weather bar with rain deflector.Guidance for specification option: For inward opening doorsets as standard. |
Execution | Fixing hardware. |
Product Reference | OUTA-DOR Double Rebate - Single Frame |
Material | Magnelis©. Guidance for specification option: Folded from 1.6 mm thick Magnelis© sheets. Manufacturer guidanceDoor frame. |
Coating | Guidance for specification option: [-] - Insert requirements. Manufacturer guidanceDoor frame finish. |
Colour | Guidance for specification option: [-] - Insert requirements. Manufacturer guidanceDoor frame. |
Core | Mineral wool. Guidance for specification option: With steel strengtheners: 2.4 W/m²K U-value; lamella: 2.4 W/m²K U-value. Polyurethane. Guidance for specification option: 1.6 W/m²K U-value. Self-supporting resin-impregnated honeycomb. Guidance for specification option: Standard, 3.1 W/m²K U-value. Solid timber. Guidance for specification option: Standard, 3.1 W/m²K U-value. Manufacturer guidanceDoor leaf. |
Coating | Polyester powder coated, non-standard colour range. Guidance for specification option: Insert colour requirement. Polyester powder coated, standard colour range. Guidance for specification option: Insert colour requirement. PVC laminate, standard range. Guidance for specification option: Insert colour requirement. Stainless steel, brushed. Stainless steel, patterned. Manufacturer guidanceDoor leaf. |
Material | Magnelis© steel. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). Manufacturer guidanceDoor leaf. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | 98% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceNew materials only. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
