OsmaSoil

Description

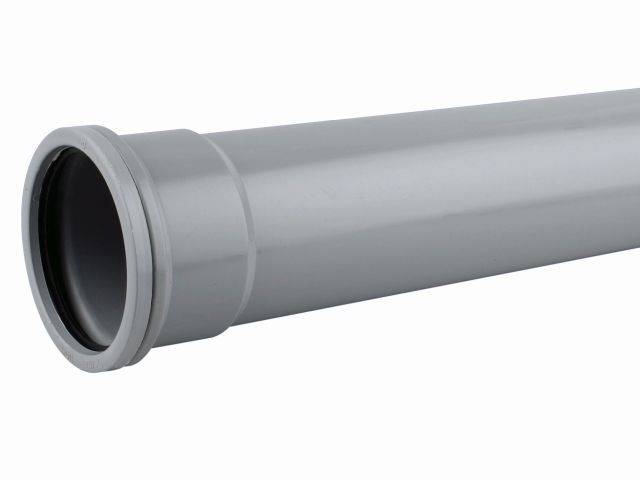

Polyvinyl chloride un-plasticized (PVC-U) soil systems. The OsmaSoil and vent range offers a choice of pipe and fittings including brackets, bends, junctions, access fittings, terminations and problem solvers.

Available in a choice of colours (black, grey and white) and connection methods: Ring-Seal (push-fit) and Solvent Weld to give maximum installation flexibility.

  • Ring-Seal (push-fit) pipe and fittings are available in 82/ 110/ 160 mm sizes.
  • Solvent weld pipe and fittings are available in 110/ 160 mm sizes.

General information

Material

PVC-U, unless otherwise stated

CAWS

R10/425 PVC-U pipework - sealed

R11/21 PVC-U soil/ vent pipework and wc branches

R11/365 PVC-U pipework

R11/366 PVC-U pipework, 82.4 mm od

Specification data

Product Reference

OsmaSoil

Type

Insert product reference from 'Options' below.

Colour

Black

Brown

Grey

White

Accessories

None

3S116

3S130

82 mm 'T' ring seal.

3S292

P/E access plug. 82 mm nominal size.

4S116

110 mm snap cap.

4S130

110 mm 'T' ring seal.

4S292

P/E access plug. 110 mm nominal size.

4S296

P/E socket plug.

4S296

P/E socket plug.

4S416

Expansion cap. 110 mm nominal size.

6S130

160 mm 'T' ring seal

6S292

P/E access plug. 160 mm nominal size.

6S416

Expansion cap. 160 mm nominal size.

4S492

SW/S access plug. 110 mm nominal size.

Standard product features

Material:

PVC-U, unless otherwise stated.

Product Options

Type:

- PVC-U Ring-Seal Soil:

Socketed pipe (with rubber seals):

  • One plain end, one ring-seal socket.
  • 110/ 160 mm sizes are made with Wavin Recycore technology – a multi-layer construction with over 50% recycled material in solid core.
  • 110/ 160 mm pipe sizes are BS EN 1453-1:2000 kitemarked but have exactly the same performance characteristics as BS EN 1329-1:2000.
  • 82 mm pipe is standard PVC-U pipe, kitemarked to BS EN 1329-1.

The range includes:

  • 3S042 – 2 m long. 82 mm nominal size.
  • 3S043 – 3 m long. 82 mm nominal size.
  • 3S044 – 4 m long. 82 mm nominal size.
  • 4S042 – 2 m long. 110 mm nominal size.
  • 4S050 – 2.5 m long. 110 mm nominal size.
  • 4S043 – 3 m long. 110 mm nominal size.
  • 4S044 – 4 m long. 110 mm nominal size.
  • 6S043 – 3 m long. 160 mm nominal size.
  • 6S044 – 4 m long. 160 mm nominal size.

Plain ended pipe:

  • 110/ 160 mm sizes are made with Wavin Recycore technology – a multi-layer construction with over 50% recycled material in solid core.
  • 110/ 160 mm pipe sizes are BS EN 1453-1:2000 kitemarked but have exactly the same performance characteristics as BS EN 1329-1:2000.
  • 82 mm pipe is standard PVC-U pipe, kitemarked to BS EN 1329-1.

The range includes:

  • 3S074 – 4 m long. 82 mm nominal size.
  • 4S073 – 3 m long. 110 mm nominal size.
  • 4S074 – 4 m long. 110 mm nominal size.
  • 6S074 – 4 m long. 160 mm nominal size.

- PVC-U Solvent Weld Soil:

  • 4S073 – 110 mm P/E pipe. 3 m.
  • 4S074 – 110 mm P/E pipe. 4 m.
  • 6S074 – 160 mm P/E pipe. 4 m.

- Brackets:

Pipe brackets:

  • 3S082 – Fixing hole diameter: 6.5 mm. 82 mm nominal size.
  • 4S082 – Fixing hole diameter: 6.5 mm. 110 mm nominal size.
  • 6S082 – Fixing hole diameter: 8 mm. 160 mm nominal size.

Socket brackets:

  • 3S083 – Fixing hole diameter: 6.5 mm. 82 mm nominal size.
  • 4S083 – Fixing hole diameter: 6.5 mm. 110 mm nominal size.

Pipe or socket bracket:

  • 3S084 – Fixing hole diameter: 7 mm. 82 mm nominal size.
  • 4S084 – Fixing hole diameter: 7 mm. 110 mm nominal size.
  • 6S084 – Fixing hole diameter: 7 mm. 160 mm nominal size.

Adjustable pipe bracket assembly:

  • 4S086 – 110 mm nominal size.
  • 6S086 – 160 mm nominal size.

Adjustable socket bracket and brace assembly:

  • 4S085 – 110 mm nominal size.
  • 6S085 – 160 mm nominal size.

- Sockets (PVC-U, with rubber seals):

  • 4S104 – D/SW double socket. 110 mm nominal size. No seal.
  • 6S104 – D/SW double socket. 160 mm nominal size. No seal.
  • 3S105 – D/S double socket. 82 mm nominal size.
  • 4S105 – D/S double socket. 110 mm nominal size.
  • 6S105 – D/S double socket. 160 mm nominal size.
  • 3S124 – S/SW single socket. 82 mm nominal size.
  • 4S124 – S/SW single socket. 110 mm nominal size.
  • 6S124 – S/SW single socket. 160 mm nominal size.
  • 4S205 – D/S double socket. 110 mm nominal size.
  • 4S125 – Acoustic socket. 110 mm nominal size.

- Connectors:

  • 4S106 – S/S Connector to cast-iron soil socket. 110 mm nominal size. PVC-U with rubber seals.
  • 4S206 – Connector to cast-iron socket. 110 mm nominal size. Neoprene synthetic rubber.
  • 4S298 – Internal drain connector. 110 x 32/40 mm nominal size. Neoprene synthetic rubber.
  • 4S299 – Internal drain connector. 110 x 50 mm nominal size. Neoprene synthetic rubber.

- Reducers (PVC-U, with rubber seals):

  • 3S094 – S/S reducer. 82 x 50 mm nominal size.
  • 4S098 – 110 x 32 mm nominal size.
  • 4S097 – 110 x 40 mm nominal size.
  • 4S096 – S/S reducer. 110 x 50 mm nominal size.
  • 4S095 – S/S reducer. 110 x 82 mm nominal size.
  • 4S094 – Level invert reducer, rubber. 110 x 82 mm nominal size.
  • 6S099 – S/S reducer. 160 x 110 mm nominal size.
  • 4S496 – SW/S reducer. 110 x 50 mm nominal size. No seal.
  • 6S499 – SW/S reducer. 160 x 110 mm nominal size. No seal.

- Bends:

  • 3S161 – S/S bend – 87.5°. 82 mm nominal size.
  • 4S161 – S/S bend – 87.5°. 110 mm nominal size.
  • 6S161 – S/S bend – 87.5°. 160 mm nominal size.
  • 4S361 – S/SW bend – 87.5°. 110 mm nominal size.
  • 4S160 – S/S tight radius bend – 87.5°. 110 mm nominal size.
  • 4S561 – D/S tight radius bend – 87.5°. 110 mm nominal size.
  • 4S164 – S/S bend – 76°. 110 mm nominal size.
  • 3S162 – S/S bend – 67.5°. 82 mm nominal size.
  • 4S162 – S/S bend – 67.5°. 110 mm nominal size.
  • 3S163 – S/S bend – 45°. 82 mm nominal size.
  • 4S163 – S/S bend – 45°. 110 mm nominal size.
  • 6S163 – S/S bend – 45°. 160 mm nominal size.
  • 4S363 – S/SW bend – 45°. 110 mm nominal size.
  • 4S166 – S/S bend – 30°. 110 mm nominal size.
  • 4S167 – S/S bend – 15°. 110 mm nominal size.
  • 4S461 – D/SW bend – 87.5°. 110 mm nominal size.
  • 6S461 – D/SW bend – 87.5°. 160 mm nominal size.
  • 4S462 – D/SW bend – 67.5°. 110 mm nominal size.
  • 4S463 – D/SW bend – 45°. 110 mm nominal size.
  • 6S463 – D/SW bend – 45°. 160 mm nominal size.
  • 4S263 – SW/S bend – 45°. 110 mm nominal size.
  • 4S268 – SW/S bend – 11.25°. 110 mm nominal size.
  • 4S260 – SW/S long-tail bend – 87.5°. 110 mm nominal size.

- Adjustable bends (Polypropylene, with rubber seals):

  • 4S173 – Adjustable bend – 30°. 110 mm nominal size.
  • 4S179 – Adjustable bend – 90°. 110 mm nominal size.

- Offset bends (PVC-U, with rubber seals):

  • 3S435 – SW/S offset bend – 67.5°. 82 mm nominal size. No seal.
  • 4S435 – SW/S offset bend – 67.5°. 110 mm nominal size. No seal.
  • 3S440 – S/SW offset bend – 67.5°. 82 mm nominal size.
  • 4S440 – S/SW offset bend – 67.5°. 110 mm nominal size.
  • 6S440 – S/SW offset bend – 67.5°. 160 mm nominal size.
  • 4S444 – S/S offset bend – 67.5°. 110 mm nominal size.
  • 4S445 – D/S offset bend – 67.5°. 110 mm nominal size. No seal.
  • 4S450 – D/SW offset bend – 67.5° (Top). 110 mm nominal size. No seal.

- Manifolds:

  • 4S597 – Six boss manifold. 110 mm nominal size.
  • 4S595 – OsmaLink soil manifold. 110 mm nominal size. With rubber seals.
  • 4Z124 – Polypropylene all-fit reducer – 40:32 mm.
  • 2S355 – Polypropylene all-fit reduction bend – 50:40 mm.
  • 2S356 – ABS all-fit 90˚ spigot bend – 50 mm.

- Single branches (PVC-U, with rubber seals):

  • 3S190 – S/S single branch – 87.5°. 82 mm nominal size.
  • 4S190 – S/S single branch – 87.5°. 110 mm nominal size.
  • 6S190 – S/S single branch – 87.5°. 160 mm nominal size.
  • 4S395 – S/SW single 5-boss branch – 87.5°. 110 mm nominal size.
  • 6S198 – S/S unequal single branch – 87.5°. 160 mm nominal size.
  • 4S220 – S/S single branch – 76°. 110 mm nominal size.
  • 4S200 – S/S single branch – 67.5°. 110 mm nominal size.
  • 4S210 – S/S single branch – 45°. 110 mm nominal size.
  • 4S490 – D/SW single branch – 87.5°. 110 mm nominal size. No seal.
  • 6S490 – D/SW single branch – 87.5°. 160 mm nominal size. No seal.
  • 4S290 – SW/S single branch – 87.5°. 110 mm nominal size.
  • 4S495 – D/SW single 5-boss branch – 87.5°. 110 mm nominal size. No seal.
  • 6S498 – D/SW unequal single branch – 87.5°. 160 mm nominal size. No seal.
  • 4S410 – D/SW single branch – 45º. 110 mm nominal size. No seal.

- Double branches:

  • 4S230 – S/S double branch – 87.5°. 110 mm nominal size. With rubber seal.
  • 6S238 – S/S unequal double branch – 87.5°. 160 mm nominal size. With rubber seal.
  • 4S250 – S/S double branch – 45º. 110 mm nominal size. With rubber seal.
  • 4S430 – D/SW double branch – 87.5°. 110 mm nominal size.

- Corner branch:

  • 4S291 – S/S corner branch – 87.5°. 110 mm nominal size. With rubber seal.
  • 4S491 – SW/S corner branch – 87.5°. 110 mm nominal size.

- Boss socket adaptors:

  • 2S398 – S/S ring-seal boss adaptor. 32 mm nominal size.
  • 2S399 – S/S ring-seal boss adaptor. 40 mm nominal size.
  • 2S402 – S/S ring-seal boss adaptor. 50 mm nominal size.
  • 2S360 – S/S ring-seal boss adaptor – 90°. 50 mm nominal size. ABS.
  • 2S404 – S/S transition adaptor. 50 mm nominal size. No seal.
  • 2S298 – SW/S Solvent Weld Boss Adaptor. 32 mm nominal size.
  • 2S299 – SW/S Solvent Weld Boss Adaptor. 40 mm nominal size.
  • 2S403 – SW/S Solvent Weld Boss Adaptor. 50 mm nominal size.

- Boss pipes (PVC-U, with rubber seals):

  • 3S649 – S/S bossed pipe. 82 mm nominal size.
  • 4S581 – S/S bossed pipe. 110 x 32 mm nominal size.
  • 4S582 – S/S bossed pipe. 110 x 40 mm nominal size.
  • 4S583 – D/SW ring-seal bossed pipe. 110 x 32 mm nominal size.
  • 4S584 – D/SW ring-seal bossed Pipe. 110 x 40 mm nominal size.
  • 4S588 – D/SW short bossed pipe. 110 mm nominal size. No seal.
  • 4S589 – S/S bossed pipe. 110 mm nominal size.
  • 4S590 – S/SW bossed pipe. 110 mm nominal size. No seal.
  • 3S319 – Strap boss. 82 mm nominal size.
  • 4S319 – Strap boss. 110 mm nominal size.
  • 4S322 – Clip boss. 110 x 32 mm nominal size.
  • 4S321 – Clip boss. 110 x 40 mm nominal size.
  • 3S323 – Patch boss. 82 x 50 mm nominal size.
  • 4S323 – Patch boss. 110 x 50 mm nominal size.
  • 6S323 – Patch boss. 160 x 50 mm nominal size.
  • 4S483 – D/SW bossed pipe. 110 x 32 mm nominal size. No seal.
  • 4S484 – D/SW bossed Pipe. 110 x 40 mm nominal size. No seal.
  • 4S586 – D/SW bossed pipe. 110 mm nominal size. No seal.
  • 4S585 – SW/S bossed pipe. 110 mm nominal size. No seal.

- Access fittings:

  • 4S169 – S/S access bend – 87.5°. 110 mm nominal size.
  • 4S369 – S/SW access bend – 87.5°. 110 mm nominal size.
  • 4S502 – S/S access branch – 87.5°. 110 mm nominal size.
  • 3S274 – S/S access pipe. 82 mm nominal size.
  • 4S274 – S/S bossed access pipe. 110 mm nominal size.
  • 6S274 – S/S bossed access pipe. 160 mm nominal size.
  • 4S374 – S/SW bossed access pipe. 110 mm nominal size.
  • 4S275 – Access saddle. 110 mm nominal size.
  • 4S469 – D/SW Access Bend – 87.5°. 110 mm nominal size.
  • 4S493 – D/SW Access Bend – 87.5°. 110 mm nominal size.
  • 4S574 – SW/S Bossed Access Pipe. 110 mm nominal size.
  • 6S474 – SW/S Bossed Access Pipe. 160 mm nominal size.
  • 4S474 – D/SW Bossed Access Pipe. 110 mm nominal size.

- Flexible soil:

  • S170 – Flexible pan connector – long. 110 mm nominal size.
  • S171 – Flexible pan connector – short. 110 mm nominal size.
  • S172– Flexible pan connector – extra short. 110 mm nominal size.
