OSB SIP Panel - Structural Insulated Panel (SIP)
Verified by manufacturer 4 months ago
95 mm thickness
95 mm thickness
UKAS
Certificate type

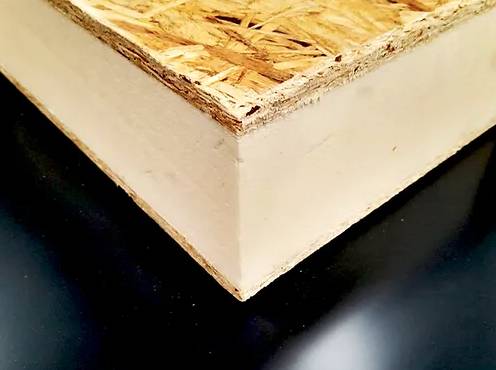

Structural insulated panel with polyurethane insulation core and two layers of 11 mm oriented strand board.
Application
Structural insulated panels (SIPs) that can be used in domestic and commercial construction. Can be used as as insulated wall panels or insulated roof panels.
Applications include:
- Sustainable Passive House.
- Schools.
- Offices.
Description
Polyurethane (PU) insulation core, SIP panel, with two layers of 11 mm OSB.
Features and benefits:
- 245 mm thickness with U value: 0.10 W/m2k.
- Polyurethane (PU) insulation core.
- Weight: 64 kg.
- Other sizes available.
General information
Color | Beige Yellow |
Finish | Smooth |
Material | Oriented strand board (OSB) Polyurethane Timber |
Shape | Rectangle |
Length | 2397 mm 2697 mm 2997 mm |
Width | 1197 mm |
Height | 95 mm 120 mm 145 mm 170 mm 195 mm |
Warranty description | One year Guidance for specification option: Standard warranty. Other Guidance for specification option: Builder warranty. Please consult manufacturer for details. |
Uniclass | |
CAWS | B14/110 Prefabricated panelled G20/347 Structural insulated roof panels G20/348 Structural insulated wall panels |
Specification data - Timber structural insulated panels (SIPs)
General requirements | Timber sourcing. |
Dimensions | |
Panel height | 2397 mm.2697 mm.2997 mm. |
Panel width | 1197 mm. |
Insulation | |
Material | Polyurethane (PU). |
Thickness | 95 mm.Manufacturer guidanceIncluding two layers of 11 mm OSB. |
Panel facings | Oriented strand board (OSB). |
Perforations | Bespoke.Guidance for specification option: please consult manufacturer for more details and then insert requirements. Window/ door openings available. |
U-value | 0.27 W/m2k. |
Sustainability data
Contains Red List materials | Yes Guidance for specification option: Isocynate. |
Country of material origin | United Kingdom Guidance for specification option: OSB. Polyurethane is sourced from Belgium. |
Country of product manufacture | United Kingdom |
Material | Oriented strand board (OSB) Polyurethane Timber |
Manufacturing plant location | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
Expected Life | 60 year |

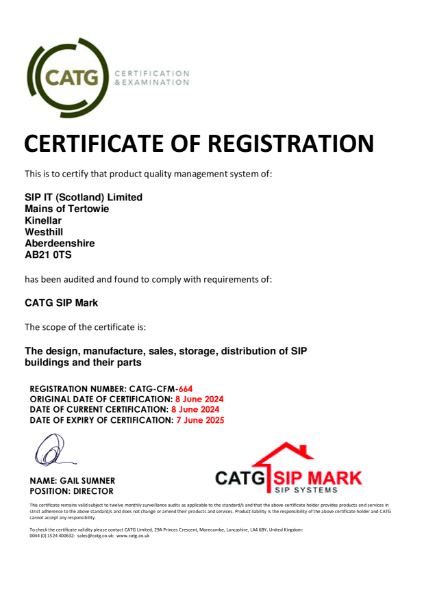

Third party certifications
UKAS
CATG / SIPmark
UKAS
CATG SIPmark
UKAS
CATG - ISO 9001
Literature
SIPit Test summary
Case studies
New build SIP house

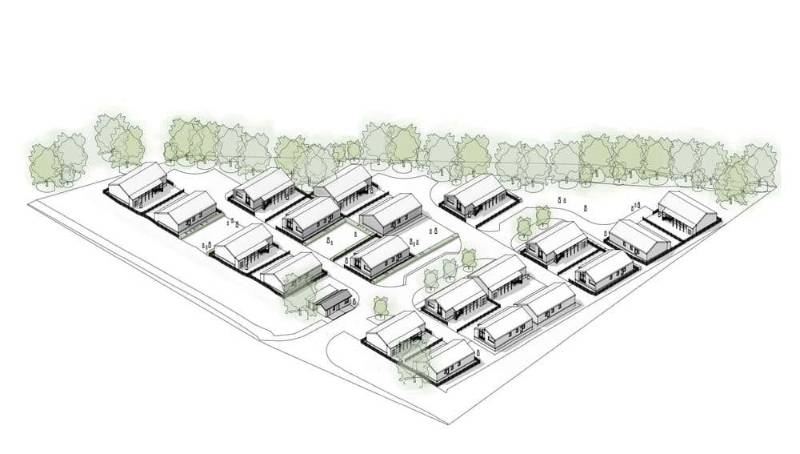

Passive house development
