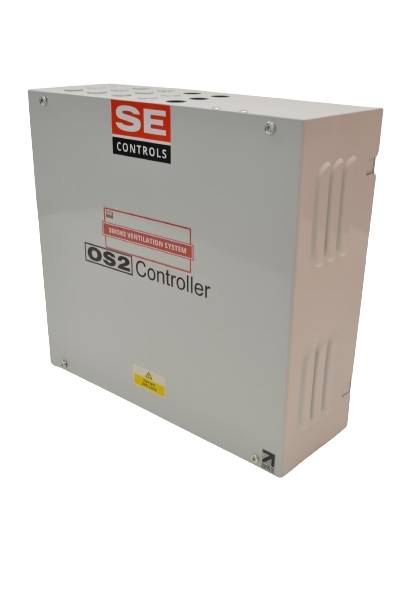

OS2 SHEVTEC Control Panel - Intelligent 24 V d.c. Control System
Verified by manufacturer 21 days ago
The OS2 SHEVTEC Controller is an intelligent 24 V d.c. control system designed to drive 2-wire 24 V d.c. actuators in a smoke control and/ or environmental ventilation system.
Application
Smoke and Environmental Ventilation
Description
The OS2 SHEVTEC Controller is an intelligent 24 V d.c. control system designed to drive 2-wire 24 V d.c. actuators in a smoke control and/ or environmental ventilation system.
Features and benefits:
- Operating from a 230 V a.c. 5 A supply, the OS2 SHEVTEC Controller can deliver up to 8 A to drive 24 V motorised actuators and magnetic catches.
- Battery backup is provided for continued operation after mains supply interruption.
- The OS2 SHEVTEC Controller can be mounted locally to the devices to be operated or in a centralised location.
- Each SHEVTEC Controller can operate independently or can be linked to others to produce a networked control system. The networked control system in turn can operate standalone or be linked to a building management system.
General information
Color | Beige |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 337.8 mm |
Width | 128.4 mm |
Height | 364.5 mm |
Uniclass | |
CAWS | S92/410 Control panels |
SKU Code | FCS12250000 |
Product range |
Specification data - Mechanical services control panels
Description | Intelligent 24 V d.c. control system. |
Manufacturer | SE Controls. |
Ingress protection (minimum) | IP 30. |
Material | Steel. |
Finish | Powder-coated. |
Colour | White. |
Form | Right-angle return construction with rounded edges and corners, concealed hinges and internal gaskets. |
Swing | 180°. |
Rated operational current (In) | 8 A. |
Rated operational voltage (Ue) | 230 V. |
Rated operational frequency | 50/ 60 Hz. |
Number of poles | Two. Guidance for specification option: Output nominal 24 V d.c. two channels, output not to exceed 8 A per channel. |
Cable entry | Via 15 x 20 mm end mounted cable glands and/ or one rear entry slot for concealed connection. |
Battery back-up | 2 x 12 V d.c. 7.0 Ah sealed lead-acid batteries. Guidance for specification option:
|
Mass | 13 kg. Guidance for specification option: Approximate. |
RelativeHumidity | 10–90% (non-condensing). |
TemperatureRange | Storage: -20 to +50°C, Operating: -5 to +40°C. Guidance for specification option: Operating temperature for control panel (not including batteries. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
