Description

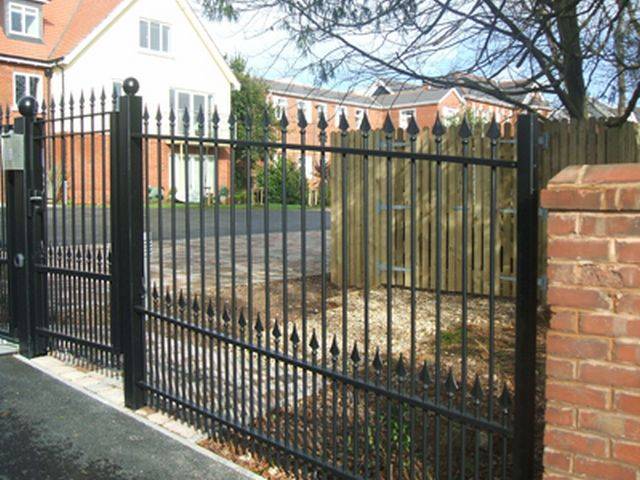

Designed to provide the aesthetic grace and form of traditional wrought iron railings with the strength and durability of galvanized or galvanized and powder coated steel. Whether in a parkland, corporate HQ or gated community, the Ornamental Fencing adds high levels of security to a classical design theme.

Features:

  • Seamless welded tubular pale through rail construction for structural integrity.
  • 100 mm spacing complying with Building Regulations for anti-trap.
  • Choice of finials.

Benefits:

  • Stronger and more durable than traditional wrought iron railings.
  • Inherently safe for use in most applications.
  • Can be adapted in size and fixings to suit specific requirements.
  • Twenty five year service life guarantee.

Gates:

Matching gates are also available.

Guarantee:

The exclusive Jacksons 25-year Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. If any problems occur during the lifetime of the guarantee, which are not the result of acts of vandalism, accidental damage, operator misuse or unsuitable operating environments, they will replace the item free of charge (excludes locks, bearings, rollers and other parts subject to wear and tear).

General information
Features

Seamless welded tubular pale through rail construction for structural integrity

100 mm spacing complying with Building Regulations for anti-trap

Choice of finials

Uniclass 2015
Metal vertical pale fencing systems (Ss_25_14_63_52)Primary
Specification data - Metal vertical pale fencing systems
Product Reference

Ornamental Fencing

Type

Standard

Finials and bottom rings; supplied with row of 100 mm diameter bottom rings and Saxon finials.

Style A

Top and bottom finials - supplied with two rows of Saxon finials.

Style B

Top and bottom rings; supplied with 1 row of Saxon finials and 2 rows of 100 mm diameter rings top and bottom.

Height

1000 mm

1200 mm

1500 mm

1800 mm

2000 mm

2500 mm

3000 mm

Gates -
Type

Double Gates, 1000 mm high

Double Gates, 1200 mm high

Double Gates, 1500 mm high

Double Gates, 1800 mm high

Double Gates, 2000 mm high

Double Gates, 2500 mm high

Double Gates, 3000 mm high

Single Gate, 1000 mm high

Single Gate, 1200 mm high

Single Gate, 1500 mm high

Single Gate, 1800 mm high

Single Gate, 2000 mm high

Single Gate, 2500 mm high

Single Gate, 3000 mm high

Form

Cantilevered sliding

Swing

Tracked sliding

Telescopic

Operation

Automatic

Manual

Rear mounted operator

Underground operator

Control

Card system

Ground Loops

Hard-wired audio intercom

Hard-wired video intercom

Key fob

Key pad

Key switches

Photocells

Push button

Safety edges

Time Clocks

Token reader

Traffic lights

Finish/ Colour -
Fencing

Manufacturer’s standard

Hot dipped galvanized to BS EN 1461.

Black RAL 9005

Blue BS 20-C-40

Blue RAL 5010

Brown RAL 8017

Green RAL 6005

Grey RAL 7012

Red RAL 3020

White RAL 9010

Yellow RAL 1018

Marine coat

For installations near sea water.

Gates

Manufacturer's standard

Black RAL 9005

Blue BS 20-C-40

Blue RAL 5010

Brown RAL 8017

Green RAL 6005

Grey RAL 7012

Red RAL 3020

White RAL 9010

Yellow RAL 1018

Finials

Various to suit fence.

Standard product features

Post spacing/ Panel width:

3040/ 2980 mm.

Rails:

Three horizontal rectangular hollow section rails 50 x 25 mm with 2 mm wall thickness and 50 x 6 mm flat bar.

Pales:

Vertical round hollow section 19 mm diameter pales at 119 mm centres.

Posts:

Rectangle hollow section posts with anti-tamper fixings with internal connectors and no visible bolts.

  • Fence height ≤ 2000 mm: 60 x 60 mm. Flat top or ball top.
  • Fence height > 2000 mm: 80 x 60 mm. Flat top or ball top.

Gates:

Jacksons Fencing automated gates are CE marked according to the European directive: Construction products directive (89/106/EC), low voltage directive (73/23/EEG), EMC directive (2004/108/EG) and type tested according to standard EN 13241-1 for industrial, commercial and garage doors and gates.

Product Options

Type:

  • Standard: Saxon finials and rings.
  • Style A: Double row Saxon finials.
  • Style B: Saxon finials and double row of rings.

Height:

Available in six standard heights.

Colour/ Finish:

Galvanized to BS EN 1461 as standard or can be powder coated to BS EN 13438 in any BS or RAL colour extra cost.

Finials:

A range of finial options are available, please consult manufacturer for exact details and product codes.
