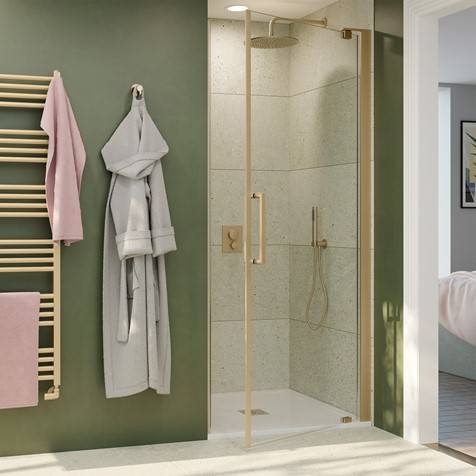

Optix 10 Pivot Door - Shower Door
Verified by manufacturer 3 months ago
OXWPFC0800 – Brushed Brass 800 mm
OXWPFC0800 – Brushed Brass 800 mm
Modern pivot shower door.
Application
Suitable for dwellings and commercial applications.
Description
Outward opening modern pivot shower door with magnetic seal.
Features and benefits:
- Pivot hinge position reduces door overhang.
- Reversible door for left or right hand entry.
- Outward opening pivot hinges.
- Suitable for tray or tiled floors (wet room).
- Stainless steel double handle.
- Breakwater bar.
- Super clear PVC seals.
General information
Color | Gold Silver Bronze Black |
Finish | Brushed Polished Glazed |
Material | Brass Stainless steel Bronze Slate |
Shape | Rectangle |
Length | 800 mm 900 mm |
Width | 800 mm 900 mm |
Height | 2020 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower doors
Standard | To BS EN 14428. |
Form | Pivoted door. |
Materials | |
Frame | |
Body | 304 stainless steel. |
Finish and colour | Brushed brass. |
Glazing | |
Glazing type | 10 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | 800 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
