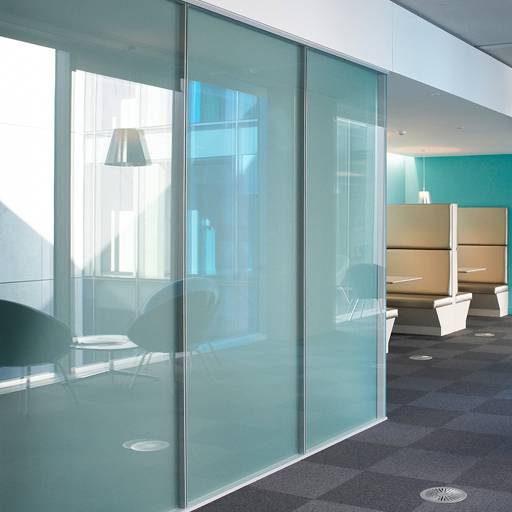

Double-glazed slimline partition system.
Partition offering a range of double glazing configurations within a single slimline system. It has the added flexibility of being able to incorporate integral blinds for privacy due to an aluminium hidden mullion that sits within the glazing cavity.
Uniclass 2015 | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Product Reference | Optima 217 Plus Double Glazed Partition |
StrengthGrade | - |
Duty rating (to BS 5234-2) | Congested office space – 0.74 kN/m line loadUncongested office space – 0.36 kN/m line load |
Maximum allowable deflection under the line load | L/65 or 50 mmWhichever is least. L/120 or 25 mmWhichever is least. |
Partition height | Insert floor to ceiling requirement, available up to 3000 mm. |
Finish/ Colour | Anodized25 microns thickness. Grained, brightened and protective anodizedPolished, brightened and protective anodizedPowder-coated, RALInsert requirement, contact manufacturer for more information. Powder-coated, RAL 9006 Silver50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White50 microns, 30% gloss (nominal). |
Glazing | - |
Type | 6 mm toughened glass + 10 mm toughened glass40 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 6.4 mm acoustic laminate glass + 10 mm toughened glass42 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 6.4 mm acoustic laminate glass + 10.8 mm acoustic laminate glass43 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 6.4 mm laminate glass + 10.8 mm laminate glass41 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. |
Manifestation | Insert requirements. |
Junctions/ corners | 217008-01In-line modular junction. 217008-02In-line modular junction with interstitial blind. 217009-0190° corner junction. 217009-02Three-way junction. |
Partition abutments | - |
Head detail | 217002-0190 mm deep (±25 mm deflection - internal). 217002-0290 mm deep (±25 mm deflection - internal). 217002-0325 mm deep (no deflection). 217002-0425 mm deep with interstitial blind (no deflection). 217002-05Door head. 217002-06Door head. |
Floor detail | 217003-0125 mm deep. 217003-0225 mm deep with interstitial blind. |
Wall detail | 217004-0125 mm deep. 217004-0225 mm deep with clip-on bead. 217004-03Door frame spacer for D450 frame. 217007-01Tapeable glazing bar to 100 mm generic drywall. 217007-02Tapeable glazing bar to 122 mm generic drywall. |
Doorset | - |
Leaf | AXILE Clarity frameless single-glazed leaf on lift-off hinges32 dB (Rw). AXILE Clarity frameless single-glazed leaf on offset quad pivots32 dB (Rw). EDGE Affinity double-glazed leaf on offset pivots/ hinges42 dB (Rw). EDGE Affinity single-glazed leaf on offset pivots/ hinges39 dB (Rw). EDGE Flush double-glazed leaf on offset pivots37 dB (Rw). EDGE Symmetry double-glazed leaf on offset pivots/ hinges41 dB (Rw). EDGE Symmetry single-glazed leaf on offset pivots/ hinges35 dB (Rw). Timber 44 mm leaf on offset pivots/ hinges31 dB (Rw). Timber 54 mm rebated leaf on offset pivots/ hinges33 dB (Rw). |
Manifestation | Insert requirements. |
Ironmongery | Insert requirements from Optima standard ironmongery suite. |
Locking | Insert requirements; contact manufacturer for information. |
Blinds | Not required25 mm-wide slat interstitial venetian blinds, tilt only by mullion mounted rotary control |
Sustainability requirements | Not requiredBREEAM 'A' ratingSKA Good Practice Measure M09 compliant |
Accessories | Insert requirements; contact manufacturer for more information. |
Standard product features | Framing: Aluminium extruded track sections. |
Product Options | Glazing: Glazing is full height, dry jointed and dry glazed. Doorset: Integral Microflush D450 aluminium door frame with 50 mm face and leaf set. |
