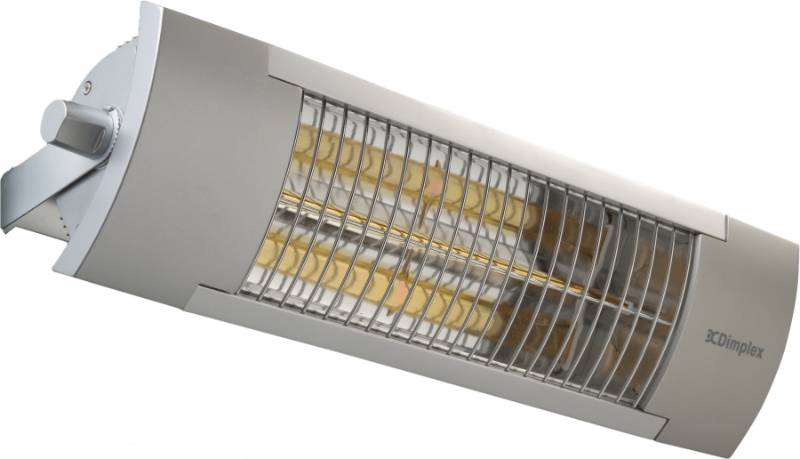

OPH Radiant Patio Heater
Application

Hospitality, commercial and industrial buildings - gyms, hotels, restaurants, leisure, sports halls, churches, airports, hospitals, workstations and warehouses.

Description

The OPH13 outdoor patio heater features a high-quality aluminium case and a choice of outputs, these outdoor patio heaters provide long-lasting performance with an attractive modern design, perfect for outdoor dining or smoking areas.

Features and benefits:

  • High quality aluminium case finished in two-tone silver.
  • Designed and rated for permanent external installations.
  • Instant heat - avoiding the need for expensive pre-heating.
  • 'In-situ' lamp replacement for easy maintenance.
  • Fitted guard included.
  • An optional mounting kit for hanging or pole/mast mounting (OPHMK1) available.
  • Energy efficient heaters that heat people without heating the air around them for a cost-effective solution.
  • Low energy giving substantially reduced emissions compared to gas heaters.
  • Optional passive infra-red switch.
  • Additional PIR switch saves energy by switching the heat off when not needed.
  • CE marked.

Applications:

Hospitality, commercial and industrial buildings - gyms, hotels, restaurants, leisure, sports halls, churches, airports, hospitals, workstations and warehouses.

General information

Color

Silver

Features

Weatherproof design for permanent external installations with IPX4 water ingress rating, high quality aluminium construction, rugged design for commercial or domestic settings

Finish

Mill

Material

Aluminium

Shape

Rectangular

Size

159 x 594 x 144 mm

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

OPH13

Accessories

None

DX4131 Passive infrared detector

OPHMK1 mounting kit

Includes parasol and hanging mounts.

Standard product features

Size (w x h x d):

594 x 159 x 144 mm.

Colour:

Two-tone silver.

Technical characteristics:

  • Weight: 4 kg.
  • Heat output: 1.3 kW.
  • Installation: Horizontal wall mounting via the supplied mounting plate.
  • Ingress protection (IP) rating: IPX4.
  • Location of heat output: Front from the elements.
  • Recommended mounting height: 2.0–2.3 m. Minimum: 1.8 m.
  • Cable exit point: Right.
  • Construction: Aluminium case with strong steel wall brackets.
  • Element type: Quartz infrared spiral element in transparent silica sleeve.
  • Lamp type: Quartz infra-red.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 2.0
IFC
- 1 2.0
Download now from NBS National BIM Library
