Opensky Roof AOV - Louvred Smoke & Natural Ventilator NSHEV
Verified by manufacturer 5 months ago
Aluminium Louvre
Aluminium Louvre
ISO 9001 Quality Management
Certificate type
A louvred ventilator suitable for natural ventilation or smoke control.
Application
A dual purpose ventilator, suitable for natural day-to-day ventilation and smoke control applications.
Description

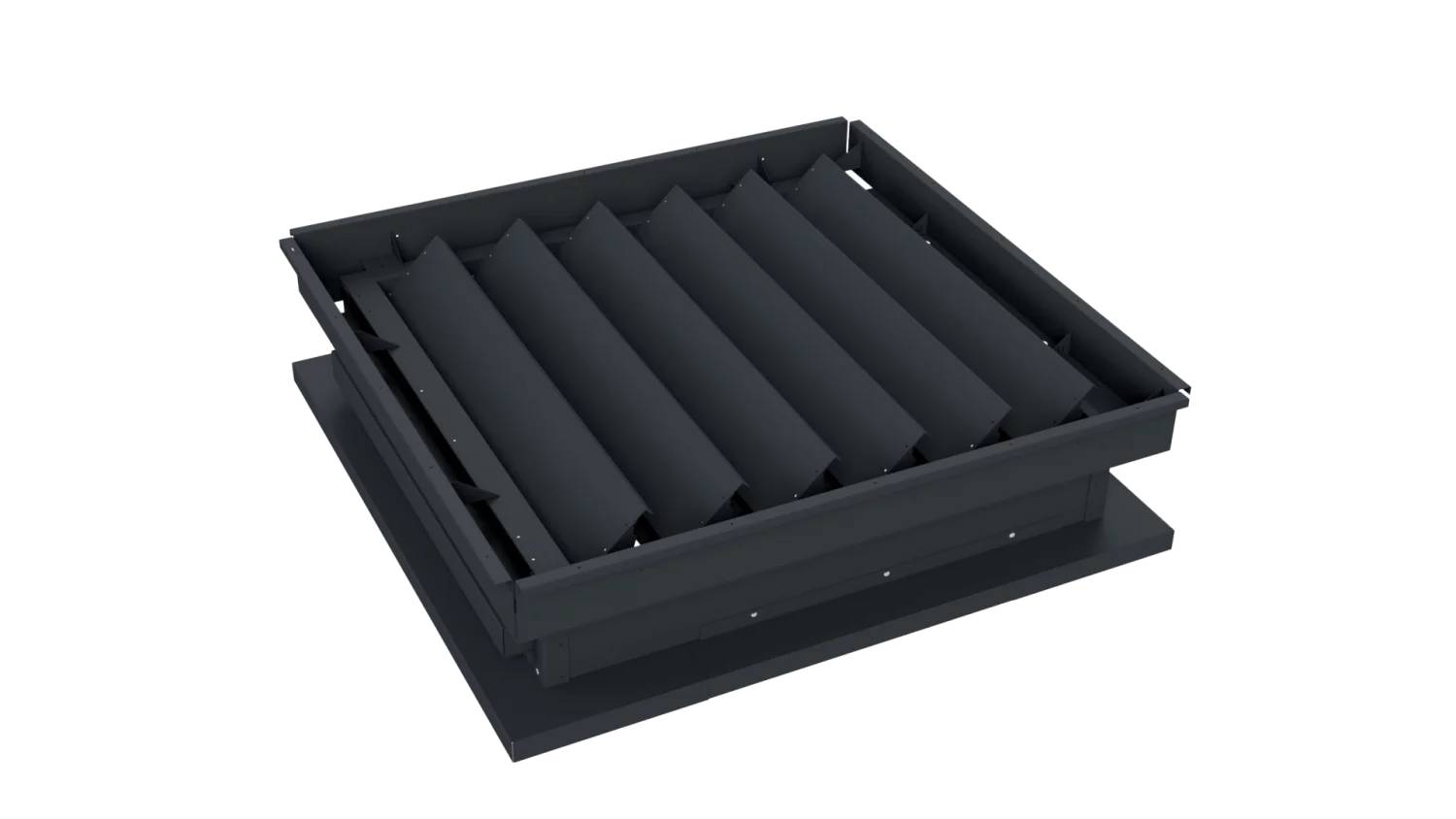

AOV louvred smoke & natural ventilator is suitable for comfort ventilation or as part of a SHEV (smoke and heat exhaust ventilation) system. The Opensky AOV is available in a range of dimensions, control operations and finishes making it suitable for a wide range of applications including both wall and roof.
Features and benefits:
- High free area performance.
- Meets 1.0 m² and 1.5 m² Free Area requirements.
- Opens within 60 seconds.
- Low maintenance and cost-effective smoke vent.
- 0.67 W/m2ºk U-value capability.
- Mill finish or custom BS Standard or RAL colour.
- Customisable Base to suit most structural openings.
- Ease of install.
- Tested and Certified to EN 12101-2.
General information
Color | Other Grey White |
Finish | Mill Powder-coated |
Material | Aluminium Polycarbonate |
Shape | Rectangle |
Length | 690 mm 890 mm 1090 mm 1290 mm 1490 mm Manufacturer guidanceThroat (Vent Length = Throat Dimension +180mm) |
Width | 410 mm 510 mm 610 mm 710 mm 810 mm Manufacturer guidanceThroat (Vent Width = Throat Dimension + 90mm) |
Height | 250 mm |
Warranty description | One year |
Uniclass | |
CAWS | L10/490 Roof ventilators L10/47 Roof ventilators |
Specification data - Natural smoke and heat exhaust ventilators
Standard | To BS EN 12101-2. |
Mounting | Roof-mounted, turndown base.Guidance for specification option: Mounting onto weathered roof upstand. Roof-mounted, flat base.Guidance for specification option: Mounting directly onto roof sheeting. Roof-mounted, glazing base.Guidance for specification option: Integrating into glazing systems. |
Aerodynamic free area | Manufacturer's standard.Guidance for specification option: Consult manufacturer's literature for details, based on throat length and width. |
Reliability classification | Re 1000. |
Snow load classification | Pneumatic: SL 500; Electric: SL 125. |
Low ambient temperature classification | T (-05). |
Wind load classification | WL 1500. |
Resistance to heat classification | B 300. |
Arrangement | Louvred. |
Dimensions | |
Length | 690 mm.890 mm.1090 mm.1290 mm.1490 mm.1690 mm.1890 mm.2090 mm.2290 mm.2490 mm.2690 mm.2890 mm.3090 mm.3290 mm.Manufacturer guidanceThroat length (vent length = throat length + 180 mm). |
Width | 410 mm.510 mm.610 mm.710 mm.810 mm.910 mm.1010 mm.1110 mm.1210 mm.1310 mm.1410 mm.1510 mm.1610 mm.1710 mm.1810 mm.1910 mm.Manufacturer guidanceThroat width (vent width = throat width + 90 mm). |
Height | 250 mm. |
Controls | Electric.Pneumatic.Manual.Thermal release. |
Initiation | Drive Open/ Drive Closed.Fail Safe Open.Fail Safe Closed.Manual. |
Materials | |
Ventilator | |
Frame | 1.5 mm press formed aluminium. |
Louvres | Single skin aluminium (1.5 mm). |
Finish | Mill finish.Principal components polyester powder-coated. |
Colour | Natural.RAL/ BS Standard.Guidance for specification option: Insert requirements. |
Accessories | None.Bird guards.Security bars.Mansafe bars.Insect mesh. |
U-value | 6 W/m²K. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001 - FM 00414
Literature
Opensky Roof Ventilator Product Specification Sheet

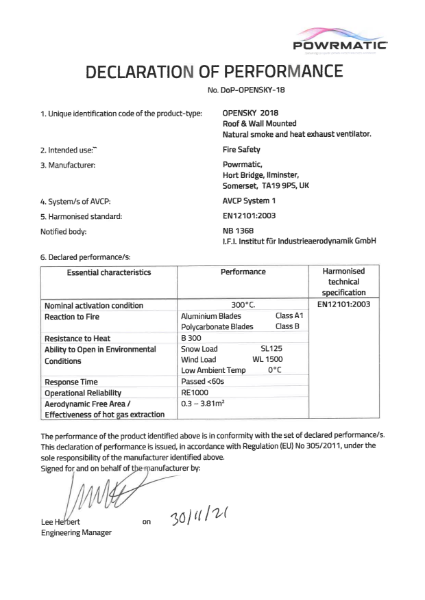

Opensky DoP

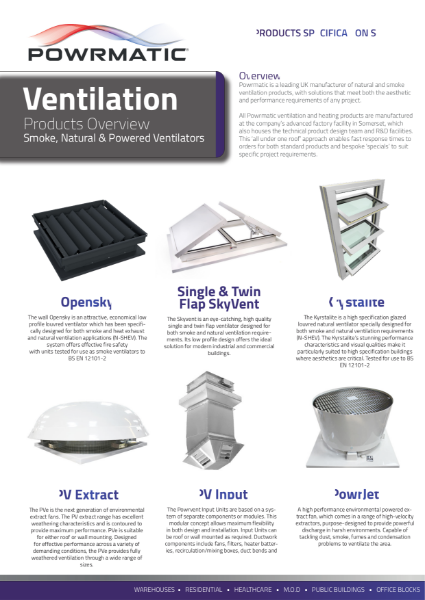

Powrmatic Ventilation Products Overview
Case studies

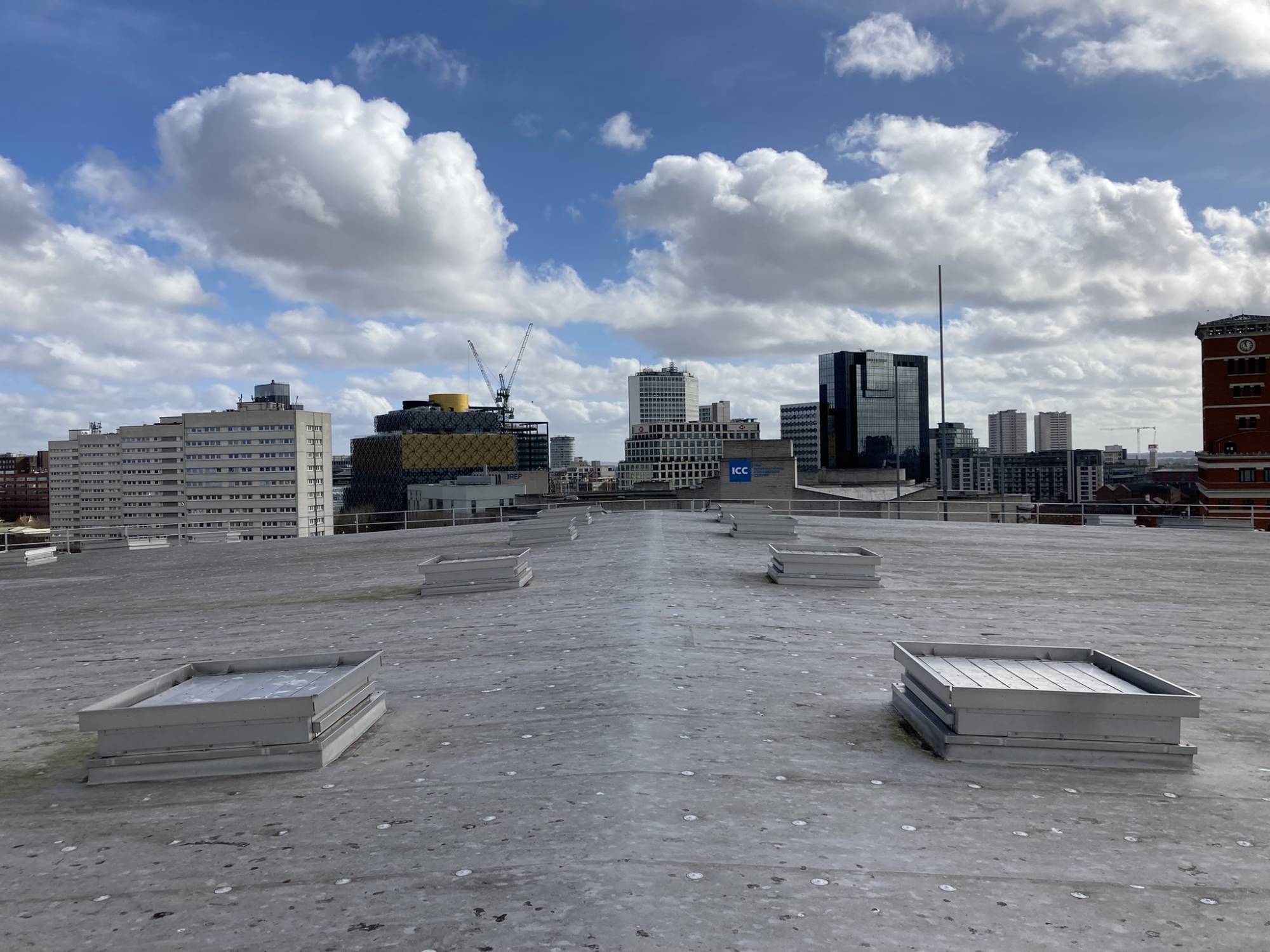

Ikea, Dublin - Smoke Ventilation
