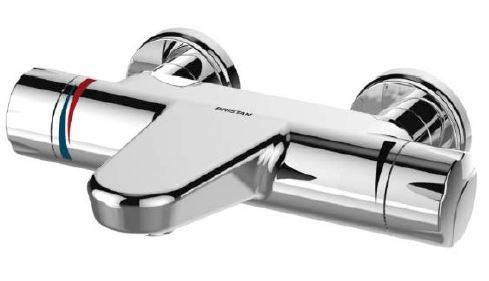

OP THBF WMH C Opac Wall Mount Bath Filler with Chrome Handles
Description

OPAC thermostatic wall mounted bath filler with chrome handle.

Features:

  • Cool touch body for user safety.
  • Easy installation with first/ second fixing kit.
  • Integral isolator and flushing mechanism for easy maintenance.
  • High performance at low pressures.
  • Automatic shut-off in the event of hot or cold supply failure.
  • TMV3 approved.
  • Complies with D08 specification.

Approvals:

WRAS certified.

General information

Color

Polished

Features

Cool touch body for ultimate user safety, easy installation with first/ second fix fixing kit, integral isolator and flushing mechanism for easy maintenance, high performance at low pressures, automatic shut-off in the event oh hot or cold supply failure

Finish

Chrome

Material

Chrome plated brass

Size

19.1

WarrantyDescription

PARTS & LABOUR

Uniclass 2015

Pr_40_20_87_07 Bath mixer taps with shower hose and hand spraysPrimary

CAWS

N13/35 Baths

N13/355 Baths

N13/358 Assisted access baths

N13/361 Whirlpool baths

Specification data - Bath mixer taps with shower hose and hand sprays

Product Reference

OP THBF WMH C

Standard product features

Finish:

Chrome.

Guarantee:

One year covering manufacturing faults.

Technical characteristics:

  • Construction: Body is of brass construction and is designed to conform to BS EN 1111 and BS EN 1287.
  • Valve type: Thermostatic cartridge.
  • Supply: Suitable for all plumbing systems (preferably balanced).
  • Inlet connections: ¾” BSP.
  • Outlet connections: ½” BSP.
  • Working pressures: Minimum 0.2 bar, maximum 5 bar.
  • Maximum static pressure: 10 bar.
  • Fitting: 180 mm inlet centres.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
Literature
Third party certifications
  • WRAS certified: Certificate: 1411027
