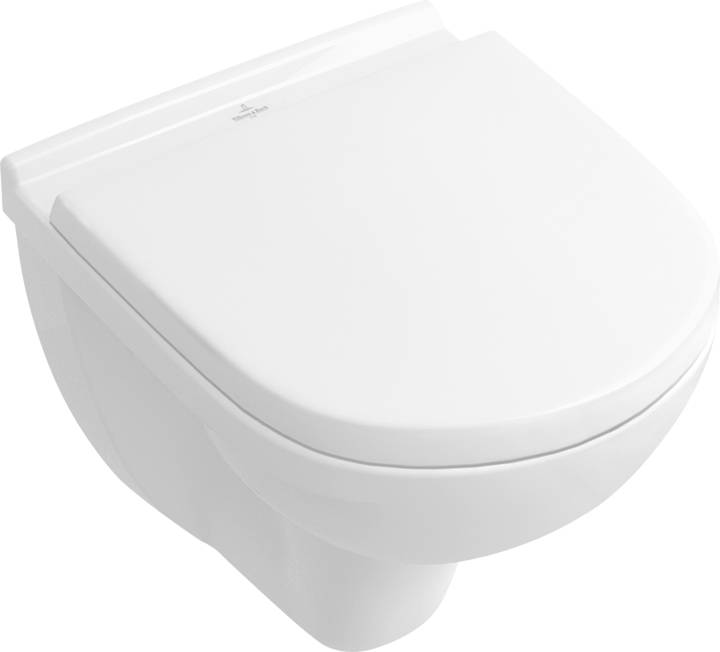

O.novo Washdown WC Wall-mounted 568810
Verified by manufacturer 8 months ago
Compact, washdown toilet.
Application
Suitable for washdown toilet.
Description
Compact, washdown toilet.
Features and benefits:
- Sanitary ceramics.
- Complies with EN 997.
- LEED 4.
- European water label 3,375 L.
- Please order toilet seat separately.
General information
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Oval |
Width | 360 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Wall-mounted, washdown. |
Pan height | 400 mm. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal. |
Integral accessories | Toilet and seat cover (9M4061).Toilet and seat cover (9M38S1).Seat (9M7161). |
Weight | 14 kg. |
Width | 360 mm. |
Depth | 490 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
