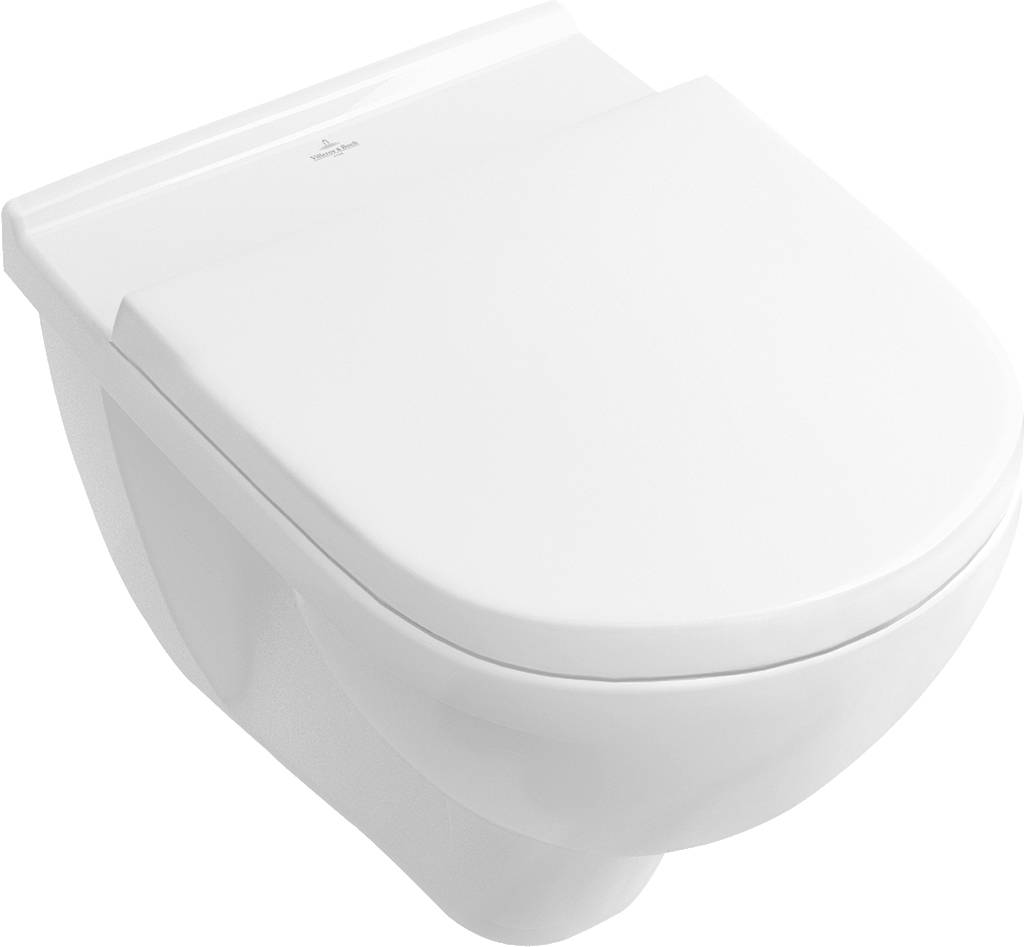

O.NOVO Wall-mounted Toilet 5660R0
Compare variants

Application

Wall mounted.

Not suitable for installation with flush valves.

Description

Wall mounted WC pan.


Features and benefits:

  • DirectFlush.
  • Sanitary ceramics.
  • Complies with EN 997.
  • Water-saving AQUAREDUCT® system: flush volume 3 / 4.5 litres.
  • Please order toilet seat separately.

General information

Color

White

Finish

Gloss

AntiBac

Material

Ceramic

Shape

Other

Width

360 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary
Pr_40_20_93_97 WC suites
Ss_40_15_75_97 WC systems

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans Enhanced data

Standard

To BS EN 997.

Form

Wall-mounted, washdown.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Ceramic.

Finish and colour

White Alpin CeramicPlus.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Outlet

Horizontal back outlet.

Seat holes

Standard pattern.

Integral accessories

Toilet seat and cover (9M38S1).

Toilet seat and cover (9M3961).

Seat (9M7161).

Execution

Installing flushing WC assemblies.

Digital objects

Platform Compatible Version Certified to
SketchUp
-

1

1

3Ds Max
-

1

1

OBJ
-

1

1

Download now from NBS National BIM Library
