O.novo Handwashbasin Compact 536037
Verified by manufacturer 9 months ago
536037R1
536037R1

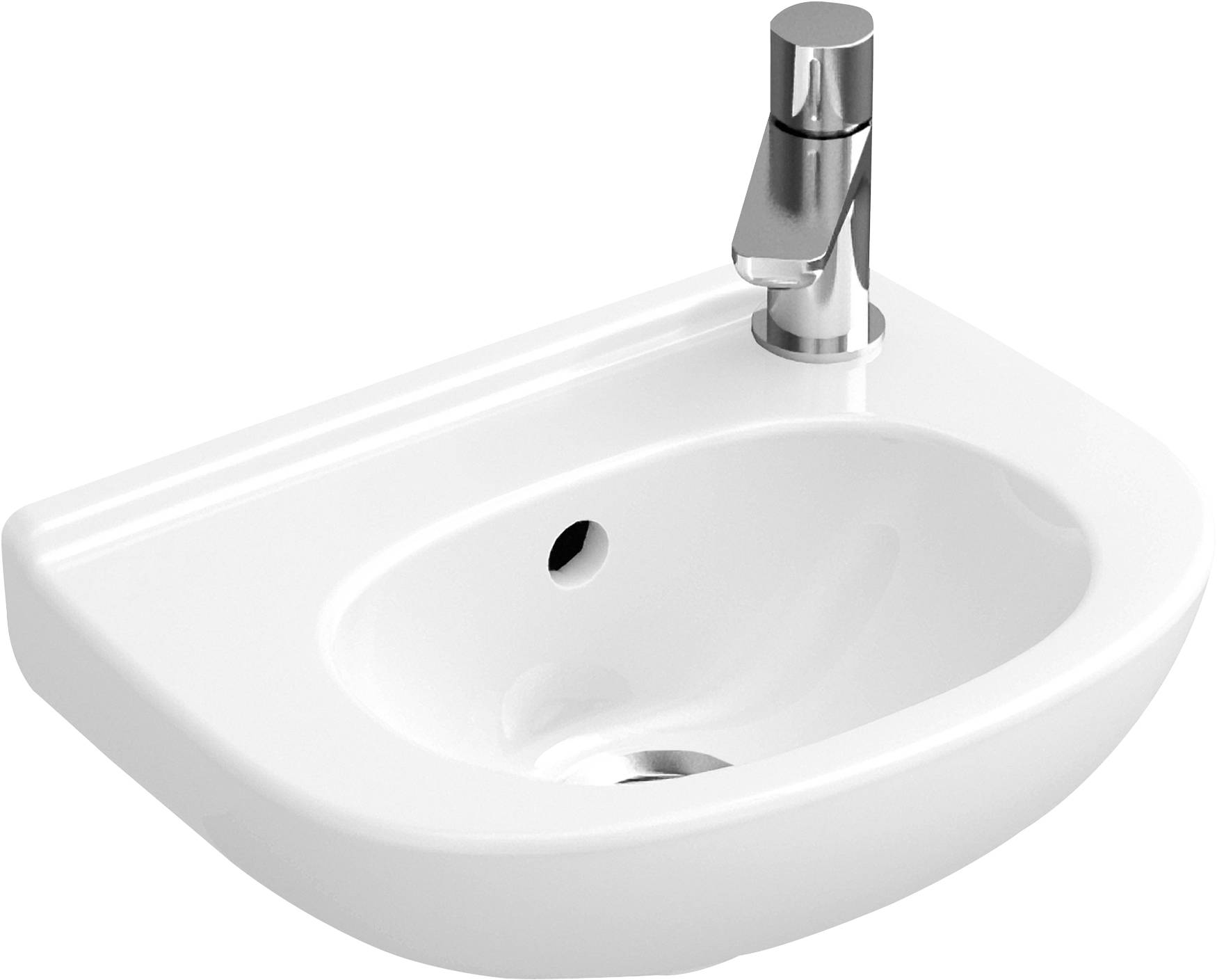

Oval, compact handwash basin.
Description
Oval, compact handwash basin.
Features and benefits:
- Sanitary ceramics.
- Complies to EN 31 and EN 14688.
General information
Color | White |
Finish | Gloss |
Material | Ceramic |
Shape | Oval |
Length | 360 mm |
Width | 275 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Standard | To BS EN 14688. |
Form | Wall-hung wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin ceramic plus, gloss. |
Size | 360 x 275 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, offset.Guidance for specification option: Suitable for 1-hole tap fittings, pre-punched tap holes on sides. |
Overflow | None.Guidance for specification option: Please note: unclosable outlet valve must be used with models without overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Weight | 5.7 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
