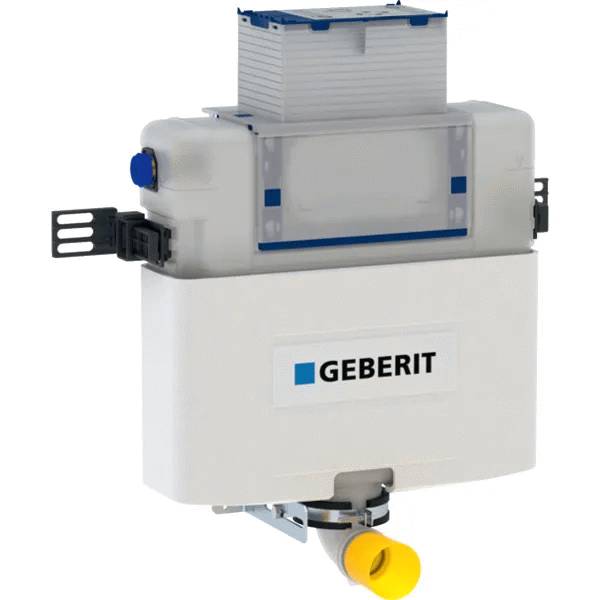

Omega concealed cistern 12 cm, 6 / 3 litres, installation height 82 cm
Verified by manufacturer over a year ago
Concealed WC cistern.
Application
- For drywall construction.
- For installation in part-height prewall installations.
- For floor-standing WCs.
Description
Concealed WC cistern.
Features and benefits:
- Adjustable in depth.
- Concealed cistern with top or front actuation.
- Concealed cistern, fully insulated against condensation.
- Cistern fulfils standard requirements in accordance with EN 14055, Class II.
- Immediate post flush possible with factory setting.
- Welded flush bend.
- Tool-free installation and maintenance work on concealed cistern.
- Water supply connection on the left or rear left.
- Protection cover box for service opening protects against moisture and dirt.
- Protection box for service opening can be cut to length.
General information
Color | White |
Material | Plastic |
Shape | Square |
Height | 820 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves |
Specification data - WC cisterns
Standard | To BS EN 14055, Class 2. |
Form | Concealed. |
Operation | Push button. |
Materials | |
Body | Plastics. |
Finish and colour | White. |
Capacity | 6/3 L dual flush. |
Water supply, overflow and outlet holes | |
Overflow | Side. |
PressureRange | 0.1–10 bar. |
Maximum temperature | 25 °C. Manufacturer guidanceOperating temperature water (maximum). |
Flush volume | 5.8–3 L. Guidance for specification option: Small range: 2.6–4 L. Manufacturer guidanceFactory setting. |
Height | 820 mm. |
