A refined and elegant premium cubicle system designed to evoke feelings of prestige and sophistication in shower environments.

Jump to:
BOS
+44 (0)161 241 9066 Website

Application

For use within the leisure industry in areas such as:

  • Golf clubs.
  • Spas.
  • Health clubs.
  • Leisure centres.

Description

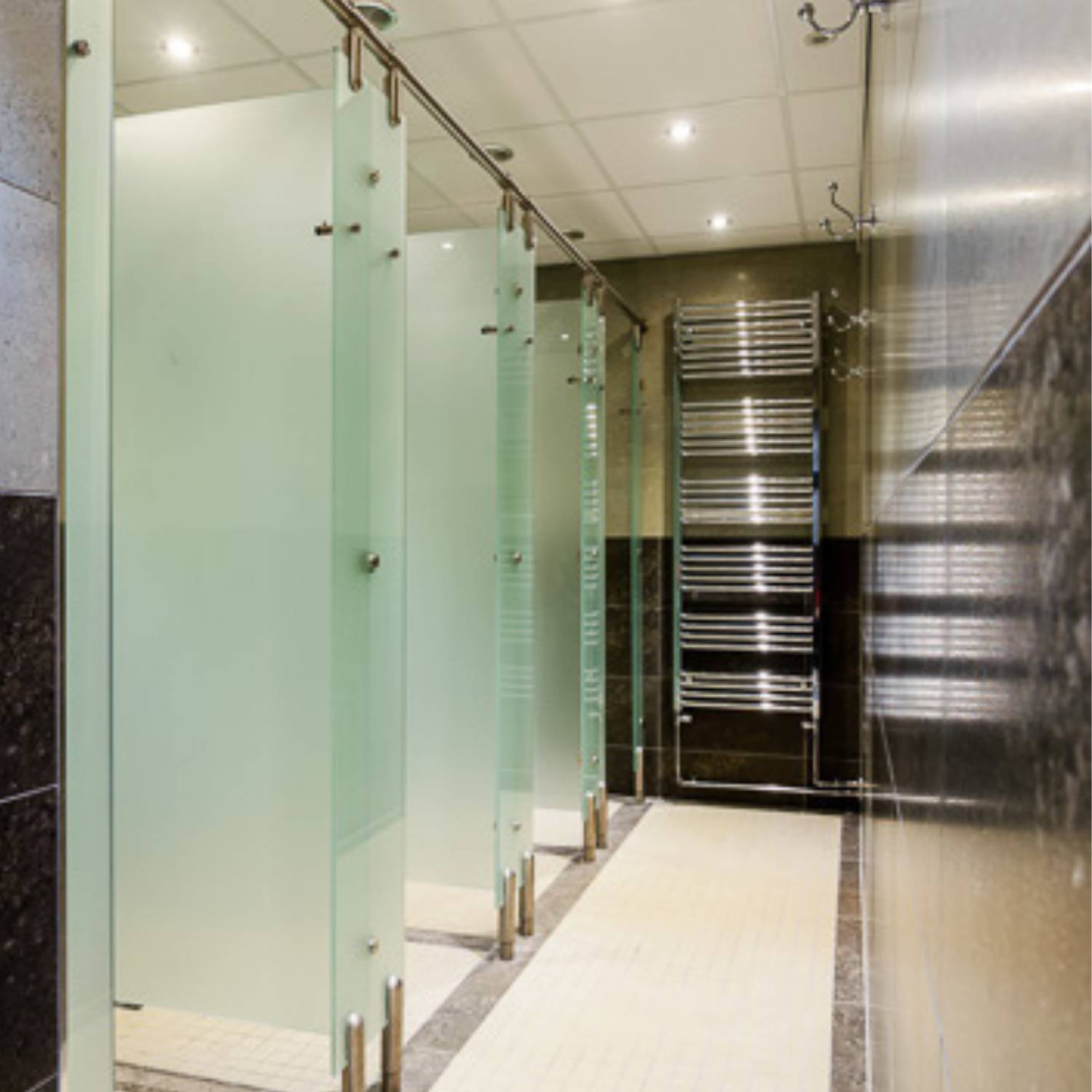

Glass showering cubicle.


Features and benefits:

  • Suitable for use within high demand showering areas.
  • Uses obscure glass for maximum privacy.
  • Marine-grade stainless steel fittings ensure long life-span.


General information

Material

Glass

Stainless steel

Shape

Rectangle

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/112 Fully framed panel cubicles

Product range

Leisure Products
Cubicles / Commercial/Hospitality
Cubicles / Leisure

Specification data - Panel cubicle systems

Panels

10 mm toughened, obscured glass with polished edges.

Hardware

Marine-grade stainless steel.

System accessories

Waste bins.

Towel and soap dispensers.

Hair dryers.

Not required.

Cubicle height

1950 mm.

Guidance for specification option:

Standard. Including 150 mm floor clearance.

Other.

Guidance for specification option:

Insert requirements.

Cubicle depth

1500 mm.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Insert requirements.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Glass

Stainless steel
