Description

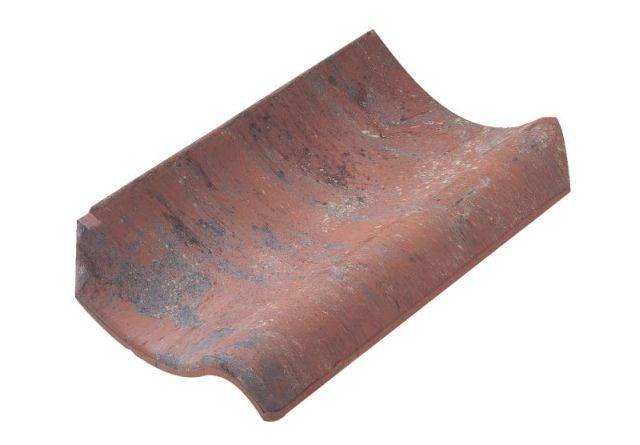

Traditional overlapping single pantile featuring an authentic ‘reclaimed’ appearance. With its distinctive pattern of rolls and troughs, the tile replicates perfectly the traditional old English pantile shape, producing roofscapes of outstanding charm and character.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 30–34.9°: 48 mm; ≥35°: 38 mm.
  • Maximum: 71 mm.

Features:

  • Authentic rustic finish.
  • Random pattern and texturing enhances vintage effect.
  • Modern production techniques allow maximum integrity in high roll profile.

General information
Features

Authentic rustic finish

Random pattern and texturing enhances vintage effect

Modern production techniques allow maximum integrity in high roll profile

Size

343 x 242 mm

Uniclass 2015 Clay interlocking tiles (Pr_25_93_72_12)
Specification data
Product Reference

Old Hollow Clay Pantile - 5991

Colour

Vintage blue (60)

Plain finish.

Vintage red (80)

Plain finish.

Standard product features

Size:

343 x 242 mm.

Pitch:

  • Minimum: 48 mm headlap: 30°; 38 mm headlap: 35°.
  • Maximum: 90°.

Gauge:

  • Minimum: 295 mm.
  • Maximum: <35°: 295 mm; ≥35°: 305 mm.

Linear cover:

<35°: 206 mm; ≥35°: 202 mm.

Covering capacity:

<35°: 16.4 tiles/m²; ≥35°: 16.2 tiles/m².

Weight (at maximum gauge):

36 kg/m².
