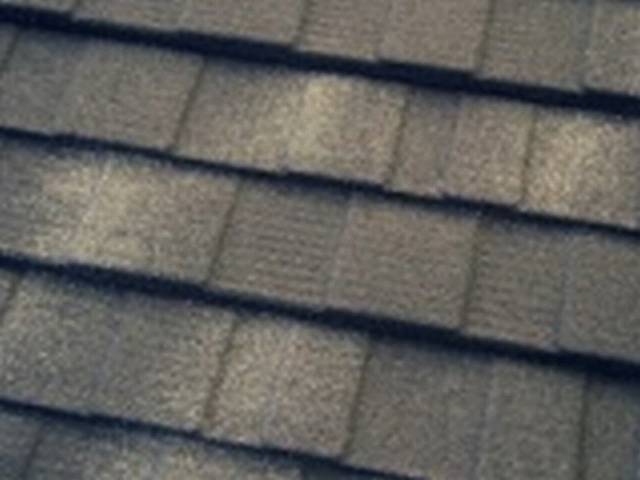

Oberon tile
Description

Designed to provide an attractive and economic finish for all types of roof down to 15° pitch. The system, which is available in four colours, comprises of coated, galvanized steel tile panels.

A comprehensive choice of accessories, including eaves, ridge and tile ventilators, completes the system which is totally dry fixed throughout.

Fixing:

Each tile has a downturned front edge and an upturned rear edge, and is profiled to provide a strong overlapping and interlocking roof covering. The large tile format enables faster installation with fewer fixings compared to traditional tile or slate roofing. Four nails fix the overlapping front edge of each standard tile; one extra nail fixes the lap of the stepped section.

Once installed Decra tiles provide a durable weathertight and low maintenance roof or vertical covering.

General information
Uniclass 2015
Pr_25_93_72_52 Metal tilesPrimary
Specification data - Metal tiles
Product Reference

Oberon tile

Colour

Bark

Eclipse

Ravine

Sunset red

Standard product features

Tile dimensions:

  • Overall size: 1324 x 410 mm.
  • Cover size 1260 x 370 mm.
  • Gauge 370 mm.

Tile weight:

  • Per tile: 3.06 kg.
  • Per m²: 6.56 kg.
