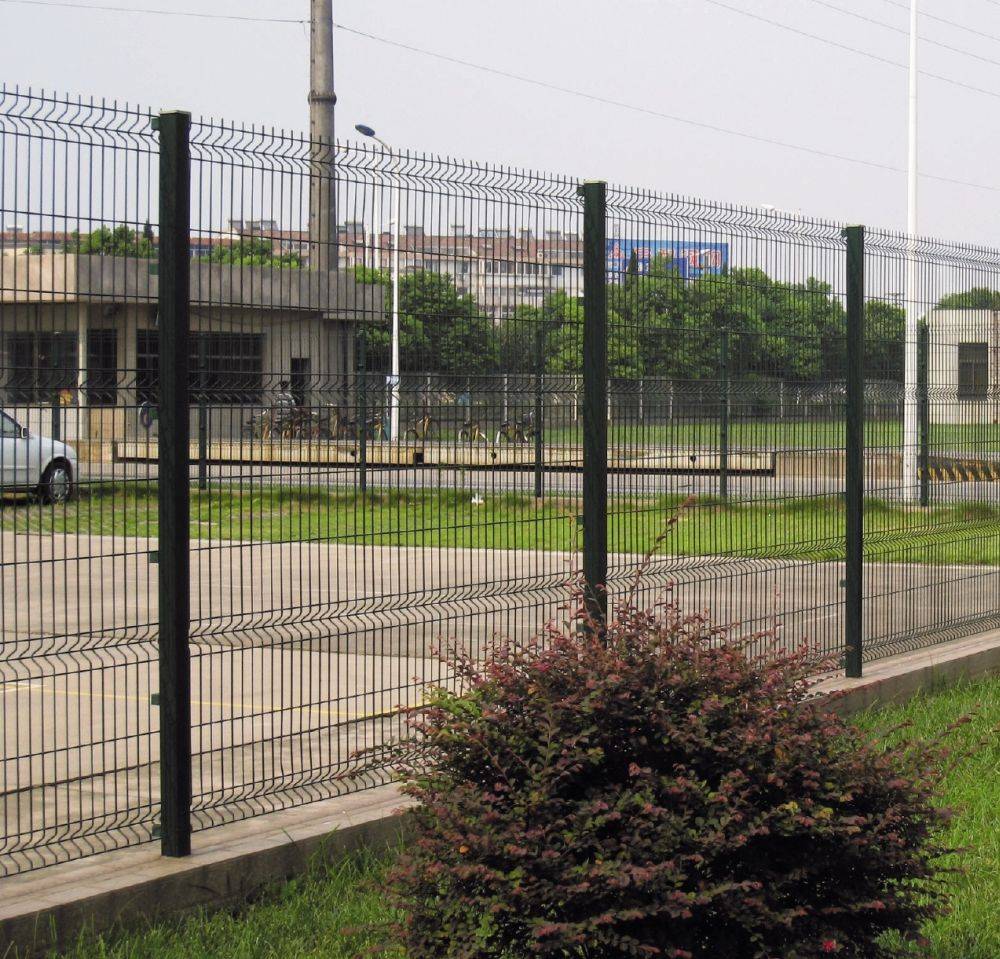

Nylofor 3D Pro XL + Nylofor-Twilfix - Metal Mesh Fence Panel

Application

Provides a general purpose security level for:

  • Schools;
  • Infrastructure;
  • Factories and logistics;
  • Public spaces and buildings.

Description

Perimeter security fencing system developed for efficient installation and long lifetime.


Features and benefits:

  • High longevity.
  • Total adhesion of the polyvinyl chloride (PVC) topcoat after galvanization due to high-quality coating technology.
  • Rectangular meshes and horizontal curves give the panels extra rigidity.
  • Cost-effective.
  • Extra-long, 3 m panels provided.
  • Fast and convenient installation.
  • Functional for privacy, dissuasion and demarcation.
  • Can easily be combined with Robusta swing and sliding gates.

General information

Color

Green

Grey

White

Black

Finish

PVC

 In accordance with EN 10245 part 2 class 2b.

Shape

Rectangular

Size

3000 x 1230 mm

3000 x 1430 mm

3000 x 1630 mm

3000 x 1830 mm

3000 x 1930 mm

Show more

WarrantyDescription

Ten years

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Specification data - Metal mesh panel fencing systems Enhanced data

Standard

ISO 16120-2, EN 1179, ISO 22034-2, EN 10223-7, ISO 16474-3.

Posts

Bekafix posts.

Rolled from one strip - profiled and welded in "H" form, suitable for lateral attachment of panels. The posts are bored on both sides, allowing for slope steps of 2.5 cm.

Minimum yield strength of the plate: 250 N/mm² in accordance with EN 10346

Plate thickness 1.25 mm

Profile of the post: 70 x 44 mm; I/V: 5.28 cm³.

Panels are fixed on the front side of the posts by fixators and security bolts. The welded square tubular posts (60 x 60 mm) have inserts for fixing the panels and are covered with a plastic cap.

Panels

Nylofor 3D Pro XL.

Heavy welded mesh, type NYLOFOR 3D PRO XL, with horizontal reinforcement.

Made of pre-galvanized wire, spot welded and plastic coated.

The panels have vertical barbs of 30 mm height at one side, which can be installed at the top or at the bottom of the fence.

Mesh size: 200 x 50 mm

Mesh size of the reinforcement: 100 x 50 mm

Wire diameter vertical and horizontal: 5 mm

Tensile strength of the horizontal and vertical wires: Min. 400 N/mm²

The minimum average welding strength value meets the requirement of 50% of the minimum specified tensile strength of the smallest wire diameter.


Mesh pattern: 200 x 50 mm, or 100 x 50 mm at the curves.

Vertical barbs of 30 mm are provided at one side, and can be placed at the top or at the bottom.

Product Reference

Nylofor 3D Pro XL and Twilfix - Metal Mesh Fence Panel

Width

3000 mm.

Materials

Heavy metal welded mesh.

WireDiameter

5 mm.

Digital objects

Platform Compatible Version Certified to
IFC
-

3

2.1
Revit
-

3

2.1
Download now from NBS National BIM Library
