Nylofor 2D Super + Bekafix - Metal mesh fence panel

Application

Suitable for use where both high rigidity and security are needed.

Description

Nylofor® 2D Super is a complete system with 2.5 metre panels, providing both high rigidity and security.


Features and benefits:

  • Very high rigidity achieved by using horizontal wires.
  • Nylofor® 2D super has similar characteristics and properties to Nylofor® 2D, but features twin 8 mm diameter horizontals for maximum rigidity.
  • Complies with BS 1722-14, category 1 and 2.


General information

Color

Green

RAL 6005 (Moss green).

Grey

RAL 7016 (Anthracite grey).

White

RAL 9010 (Pure white).

Black

RAL 9005 (Jet black).

Finish

Galvanized

Polyester powder coated

Material

Metal

Size

Width: 2500 mm Height: 630, 830, 1030, 1230, 1430, 1630, 1830, 2030, 2230, 2430 mm (other dimensions available on request).


WarrantyDescription

Ten years

Standard 10 years guarantee.

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Specification data - Metal mesh panel fencing systems Enhanced data

Standard

To BS 1722-14.

Category

1 and 2.

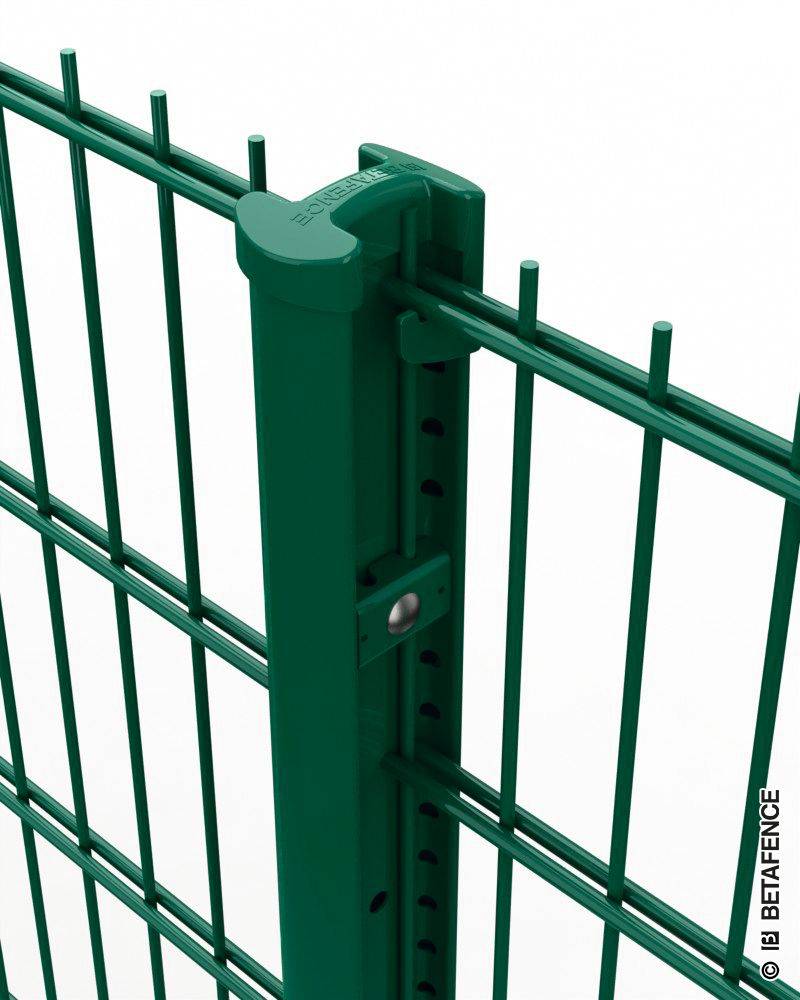

Posts

Steel posts.

The H-shape welded tubular posts (70 x 44 mm) are galvanized. PES coated and supplied with a polyamide cap and accessories.

Rails

Steel fencing and barrier rails.

Panels

Steel welded mesh panels.

Horizontal wires: Heavy gauge flat Weldmesh panels have a open mesh profile with a decorate appearance and robust construction. The principle feature is twin 8 mm diameter rods positioned on either side of the verticals. Vertical wires: 2DS: 6 mm diameter.

Fence topping

Barbed top.

System accessories

None.

Single swing gates.

Double swing gates.

R2000. - Cantilever sliding gates.

R2800. - Cantilever sliding gates.

Sliding gates on rail.

Quick Folding Gate Faldivia.

Fixing brackets.

U channel clamp bar.

Product Reference

Nylofor 2D Super + Bekafix - Metal mesh fence panel

Panel size

600 x 2500 mm.

800 x 2500 mm.

1000 x 2500 mm.

1200 x 2500 mm.

1400 x 2500 mm.

Show more

Size

70 x 44 mm.

Colour

Green.

RAL 6005 (Moss green).

Grey.

RAL 7016 (Anthracite grey).

White.

RAL 9010 (Pure white).

Black.

RAL 9005 (Jet black).

Other.

All other RAL colours on request.

Digital objects

Platform Compatible Version Certified to
IFC
-

2

2.1
Revit

Revit 2017

2

2.1
Download now from NBS National BIM Library
