Nylofor 2D + Bekafix Ultra - Metal mesh fence panel

Nylofor 2D + Bekafix Ultra - Metal mesh fence panel

Betafence (a Praesidiad brand)

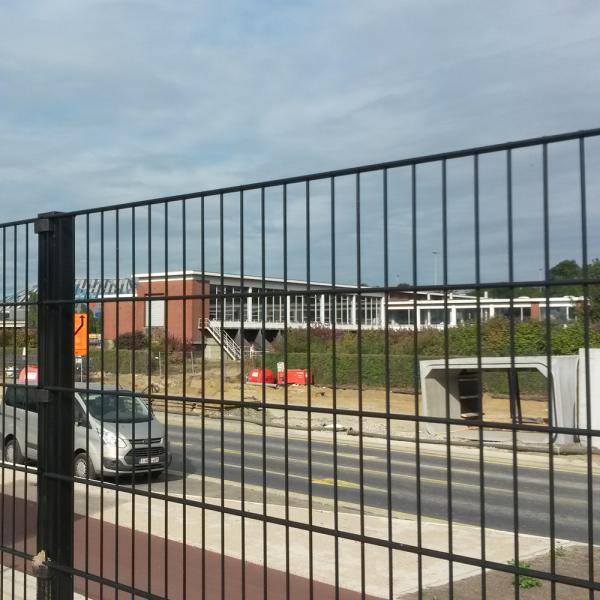

The Nylofor® 2D twin wire panel is made out of heavy welded mesh with double horizontal wires. The ideal flat fence panel when demarcation and deterrent factors are key.

Jump to:
+44 (0)114 256 7800 www.betafence.com

Description

Nylofor® 2D is a complete system with 2.5 metre panels, providing both high rigidity and security.

Very high rigidity achieved by using horizontal wires.

Supplied as a complete system with panels, posts, bolted fixings and Robusta gates.

2D is a lighter version of 2D super which has similar characteristics and properties, but features a twin 6 mm diameter horizontal.

Complies with BS 1722-14, category 1 and 2.

All materials covered by a ten year guarantee.

General information

Color

Green RAL 6005, anthracite RAL 7016, other colours on request

Finish

Polyester coated

Material

Heavy welded mesh

Size

2430 x 2500 mm

WarrantyDescription

10 year

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Specification data - Metal mesh panel fencing systems

Product Reference

Nylofor® 2D

Colour

RAL 6005

Green.

RAL 9005

Black.

RAL

Other colours available upon request.

Gate

-

Type

Single swing gates

Double swing gates

R1650

Cantilever sliding gates.

R2000

Cantilever sliding gates.

R2800

Cantilever sliding gates.

Sliding gates on rail

Size (w x h)

___ x ___ mm

Multiple width or height options also bespoke sizes available. W 900 - 8000 mm x H 900 - 3000 mm.

Colour

RAL 6005

Green.

RAL 9005

Black.

RAL 7030

Grey.

RAL 9010

White.

RAL

Other colours available upon request.

Operation

Manual

Motorized

Panel

-

Height

1000 mm

1200 mm

1800 mm

2000 mm

2400 mm

Colour

RAL 6005

Green.

RAL 9005

Black.

RAL

Other colours available upon request.

Accessories

Fixing brackets

U channel clamp bar

Standard product features

Post size:

60 x 60 x 2.0 mm.

Panel width:

2500 mm.

Panel mesh and wire:

  • Mesh pattern: 200 x 50 mm.
  • All panels have a 30 mm barbed top edge.

- Horizontal wires:

  • Heavy gauge flat Weldmesh panels have a large open mesh profile with a decorate appearance and robust construction. The principle feature is twin 8 mm diameter rods positioned on either side of the verticals. 2D features twin 6 mm diameter rods.

- Vertical wires:

  • 2D: 5 mm diameter.

Product Options

Post:

  • Sentinel twilfix 2000 RHS, galvanized rectangular hollow section: 60 x 60 x 2.0 mm, or 80 x 60 x 2.5 mm for multi-lift fences up to 4000 mm high.
  • Available in two powder coated colours. Other colours available on request.

Gate:

- Robusta cantilever sliding gates R1650:

  • Width: 3000–5000 mm. Height: 1000–2000 mm.
  • Available in green, grey and white - other colours available on request.

- Robusta cantilever sliding gates R2000:

  • Width: 6000–9000 mm. Height: 1000–2000 mm.
  • Available in green, grey and white - other colours available on request.

- Robusta cantilever sliding gates R2800:

  • Width: 8000–12000 mm. Height: 1000–2400 mm.
  • Available in green, grey and white - other colours available on request.

- Robusta double swing gates:

  • Width: 1000–8000 mm. Height: 1030–2430 mm.
  • Available in black or green colours - other colours available on request.

- Robusta sliding gates on rail:

  • Width: 3000–12000 mm. Height: 1000–2400 mm.
  • Available in green, grey and white - other colours available on request.

- Robusta single swing gates:

  • Width: 1000–1500 mm. Height: 1030–2430 mm.
  • Available in black or green colours - other colours available on request.

Panel:

- Colour:

Available in two powder coated colours. Other colours available upon request.

Accessories:

U channel clamp bar is designed as an alternative to the standard fixing bracket where a high level of repetitive impact occurs. Principally designed to provide excellent security for schools and play areas. Spreads the load of impact along the length of the post.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
