NBS Source
NV5 System

Application

Suitable for mechanical secret fix cladding applications (Trespa Meteon HPL).

Description

Features and benefits:

  • NV5 (ts300) is the NVELOPE® system for secret fix applications – vertical cladding applications (Trespa Meteon HPL only).

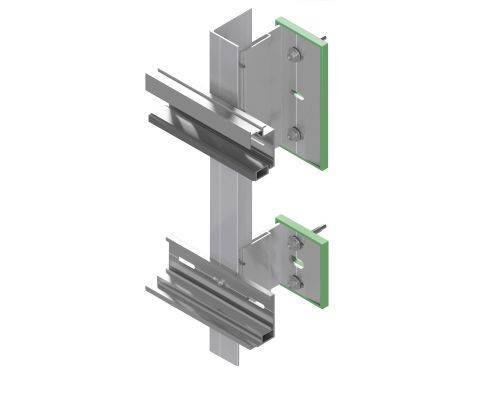

  • The panels are supported at the bottom by the horizontal NVELOPE® NV5 (ts300) channel profile which provide restraint to panel tops.
  • Vertical joints can be open, baffled or formed by half laps with appropriately designed panel edges providing a concealed fixing.
  • Individual panels can be removed for maintenance or replacement.
  • NVELOPE® ‘T’ and ‘L’ profiles are fixed using NVELOPE helping hand support brackets, fixed through a series of fixed and flexible points.
  • NVELOPE® flexible point brackets absorb wind loading and allow for expansion and contraction.
  • NVELOPE® fixed-point brackets absorb both vertical dead loads.
  • NVELOPE® Bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads.

General information

Finish

Mill

Powder coated

Anodized

Material

Aluminium

WarrantyDescription

25 year

Up to 25 years - consult manufacturer.

Uniclass

Pr_20_85_07_04 Aluminium carrier railsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails Enhanced data

Standards

EN 1090-3:2008; Eurocode 9 Pt 1-4.

Factory finish

Mill.

Thermal break

SFS Thermal Pad available.

Product Reference

NV5 System

Material/ Finish

Aluminium alloy 6005 T6; mill aluminium standard finish.

Anodized and powder coating option.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library

Third party certifications

  • 09/4678
