Application

Used to seal combustible pipes as they pass through fire compartment walls and floors. When exposed to fire, the intumescent lining within the metal sleeve expands and fills the space left by the heat softened pipe thus reinstating the fire compartment line. The product is suitable for retrofit or maybe installed prior to service installation. When used as a multibox or cable closer, foam smoke seals should be requested.

Description

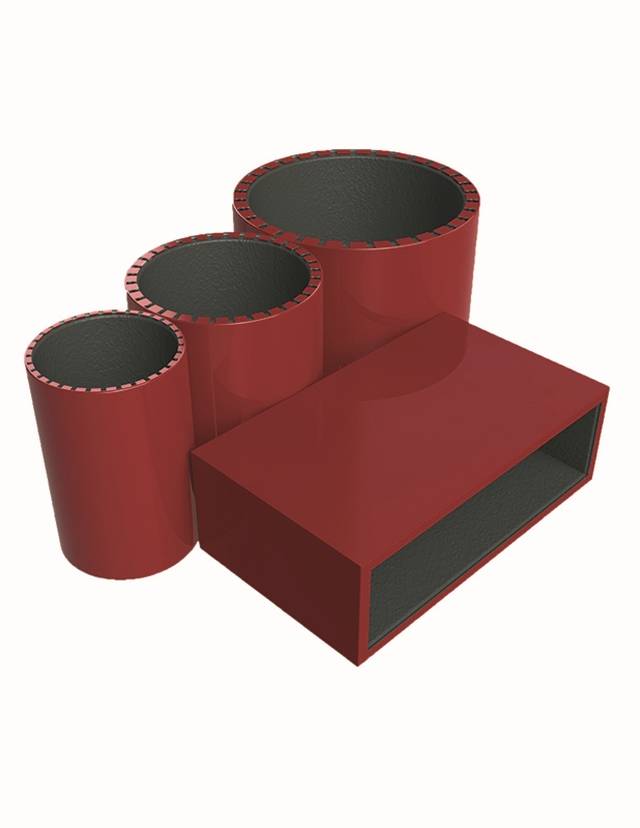

A steel encased closer device for combustible pipes of up to 200 mm. Available in various lengths, it is the perfect solution for angled pipes. FP160 provides service integrity of up to four hours, dependent on substrate. It may be used directly in solid or flexible substrates, or within FB750 coated batts. Additional clips may be required in floors slabs.

Features and benefits:

  • CE marked.
  • Ultra-slim body design ensures easy installation in awkward situations - reduces time on site.
  • Less obtrusive than externally fitted fire collars - better aesthetics.
  • Tested to two hours' integrity and insulation within walls and four hours integrity and insulation when used within FR230 fire resistant compound floor seals.

Applications:

Used to seal combustible pipes as they pass through fire compartment walls and floors. When exposed to fire, the intumescent lining within the metal sleeve expands and fills the space left by the heat softened pipe thus reinstating the fire compartment line. The product is suitable for retrofit or maybe installed prior to service installation. When used as a multibox or cable closer, foam smoke seals should be requested.

General information
Material

Steel with intumescent

Uniclass 2015
Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary
Specification data - Concealed intumescent pipe collars
Product Reference

Nullifire FP160

Size (h x w)

55 mm diameter

63 mm diameter

82 mm diameter

110 mm diameter

160 mm diameter

200 mm diameter

110 x 54 mm

204 x 60 mm

225 x 25 mm

220 x 90 mm

300 x 25 mm

Length

140 mm

Not available with 200 mm diameter or 220 x 90 mm sleeves.

200 mm

For 200 mm diameter and 220 x 90 mm sleeves only.

300 mm

For circular sleeves only.

Form

Not applicable

For circular ducting.

Three-sided

Soffit mounted, for rectangular ducts only.

Four-sided

For rectangular ducts only.

Standard product features

Material:

Steel with intumescent.

Colour:

Red.

Fire resistance:

  • Within walls: Up to two hours' integrity and insulation.
  • Within FR230 fire resistant compound floor seals: Up to four hours' integrity and insulation.

Third party certifications
  • ETA: Certificate: 17/0391
