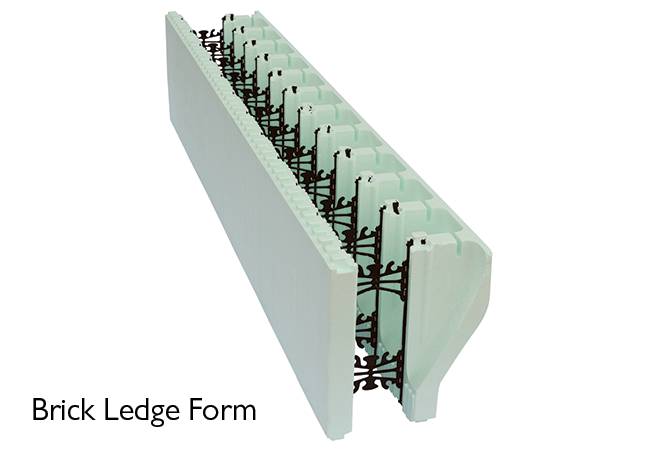

Nudura Brick Ledge and Taper Top Unit

Nudura Brick Ledge and Taper Top Unit

Nudura Inc

The Nudura ICF Series is the leader in Insulated Concrete Form Innovation and technology and offers users the ability to combine a variety of products during the building process.

Jump to:
+44 (0)7801541187 www.nudura.com

Description

The Nudura ICF Series is the leader in Insulated Concrete Form Innovation and technology and offers users the ability to combine a variety of products during the building process.

Nudura has 4 different ICF series and various accessories to cover all of your building needs. Building with Nudura ICFs gives you the opportunity to build faster and more efficient while offering you an eco-friendly structure with substantial benefits that contribute to long-term energy savings.

General information

Features

Brick ledge and taper top supports, separate insert webs available in a range of core sizes

Material

EPS foam

Size

457 x 1219 x 349 mm

457 x 1219 x 400 mm

457 x 1219 x 451 mm

457 x 1219 x 502 mm

457 x 1219 x 552 mm

WarrantyDescription

30 years from date of delivery to client

Uniclass 2015

Pr_25_71_29_62 Permanent insulation formwork (PIF)Primary

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
