Application

Suitable for nurseries or pre-schools.

Description

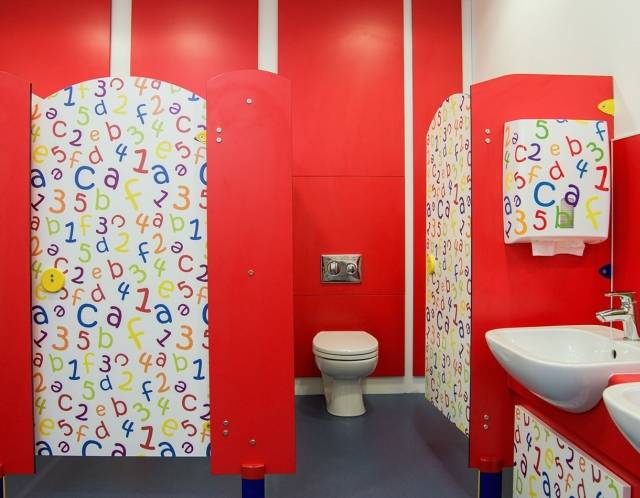

Washroom cubicle, designed specifically for the nursery/ pre-school age group with shaped doors, pilasters and partitions.


Features and benefits:

  • A large range of vibrant laminate colours are available to provide a fun environment.
  • Manufactured using FSC/ PEFC certified materials.
  • Indicator bolt or magnet catch option available.
  • Comes with pilaster shoe, offering greater stability than a pedestal leg.
  • Suitable for dry or wet areas.
  • Vibrant colour combinations.
  • Low level to aid supervision.
  • Large range of ironmongery polyester powder-coated colours available.

General information

Color

-

Manufacturer guidance

19 mm MFC: A selection of colours from the Sonae or Polyrey Washroom Collection available, consult literature for details.

20 mm HPL and 12 mm Compact: A selection of colours from the Formica, Polyrey Washroom Collection and Arpa Athlon UK available, consult literature for details.


Finish

Compact board

Melamine-faced chipboard

High pressure laminate

Material

Chipboard

Size

650 x 1350 mm

Guidance for specification option:

Width x height

1200 x 1350 mm

Guidance for specification option:

Width x height

Manufacturer guidance

Depth

12 mm Compact and 19 mm MFC

1500 mm

2000 mm


20 mm HPL

1500 mm

1650 mm

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

12 mm compact.

Guidance for specification option:

Solid grade laminate (SGL) with radiused edges.

19 mm melamine-faced chipboard (MFC).

Guidance for specification option:

Moisture resistant. Square edged/ lipped with 2 mm acrylonitrile butadiene styrene (ABS).

20 mm high pressure laminate (HPL).

Guidance for specification option:

18 mm moisture resistant medium density fibreboard (MDF) with high pressure laminate both sides/ square edged/ lipped with 2 mm ABS.

Panel supports

Cubicle and partition legs.

Pilasters

12 mm compact.

Guidance for specification option:

SGL with radiused edges.

19 mm MFC.

Guidance for specification option:

Moisture resistant. Square edged/ lipped with 2 mm ABS.

20 mm HPL.

Guidance for specification option:

18 mm moisture resistant MDF with high pressure laminate both sides/ square edged/ lipped with 2 mm ABS.

Doors

12 mm compact.

Guidance for specification option:

Solid grade laminate (SGL) with radiused edges.

19 mm melamine-faced chipboard (MFC).

Guidance for specification option:

Moisture resistant. Square edged/ lipped with 2 mm acrylonitrile butadiene styrene (ABS).

20 mm high pressure laminate (HPL).

Guidance for specification option:

18 mm moisture resistant medium density fibreboard (MDF) with high pressure laminate both sides/ square edged/ lipped with 2 mm ABS.

Lippings

Required.

Hardware

Challenger indicator bolt, H5 wrap round safety hinge (pair),U and L fixing brackets, L6 leg.

System accessories

Not required.

Coat hook.

Magnet catch.

Indicator bolt.

Product Reference

Nu-Infantz

Ironmongery

Polyester powder-coated (PPC).

Guidance for specification option:

Standard.

Depth

1500 mm.

Guidance for specification option:

Available in 12 mm Compact, 19 mm MFC board and 20 mm HPL board.

1650 mm.

Guidance for specification option:

Available in 20 mm HPL board.

2000 mm.

Guidance for specification option:

Available in 12 mm Compact and 19 mm MFC board.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
