NSHEV Rooflight

Description

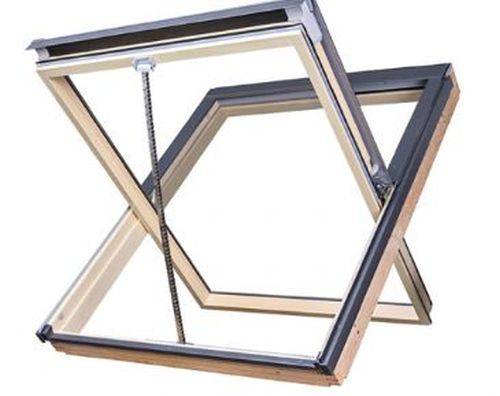

Centre pivot roof window certified to BS EN 12101-2. It has black exterior with natural timber or white polyurethane interior. The FSR smoke ventilation window is equipped with the chain drive fitted at the base of the window.

Features and Benefits:

  • Toughened outer pane, laminated inner pane class P2A, overall thermal transmittance (U-value): 1.4 W/m²k.
  • Suitable for installation at three installation depths (J, V and N).
  • Special drive tilting the sash to an angle of 90° within 60 seconds.
  • Multiple sizes in addition to standard 1 m² and 1.5 m² free area versions.
  • CE marked.

General information

Size

1 m² free area

1.5 m² free area

Special order

Insert requirement, consult manufacturer for information.

Uniclass 2015

Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary

CAWS

L10/490 Roof ventilators

Specification data - Natural smoke and heat exhaust ventilators

Product Reference

NSHEV Rooflight FSR P1

Size

1 m² free area

1.5 m² free area

Special order

Insert requirement, consult manufacturer for information.

Interior material

Natural timber

White polyurethane

Installation depth

J

Consult manufacturer for information.

N

Consult manufacturer for information.

V

Consult manufacturer for information.

Standard product features

Exterior colour:

Black.

Glazing:

Single chamber glazing unit P1 featuring the structure 4H-14St-33.2. Class P2A toughened outer pane and laminated inner pane.

U-value:

1.4 W/m²k.

Technical characteristics:

  • Supply: 24 V DC/ ±15%/ 1.4 A.
  • Duty cycle: 30%.
  • Connection: 2.5 m silicone cable.
  • Reliability class: RE 1000.
  • Wind load class: WL 3000 N/m².
  • Snow load class: SL 1500–2700 N/m².
  • Low ambient temperature rating: T (-15°C).
  • Fire resistance class: B300.
