Nova Granite Tiles
Verified by manufacturer 8 days ago

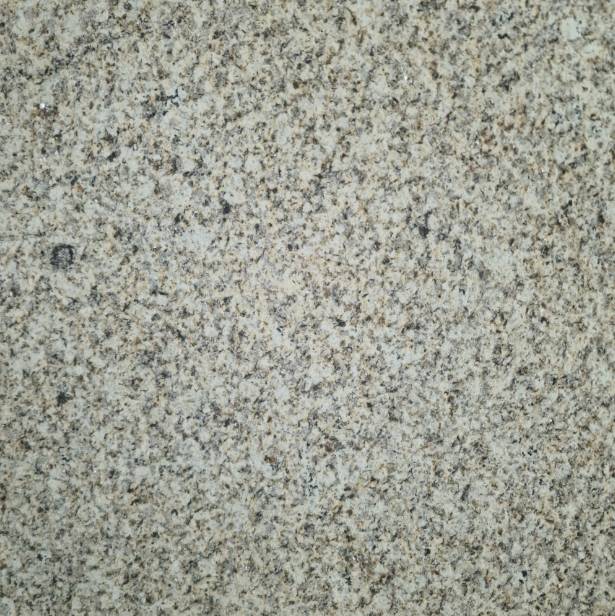

Nova Yellow
Nova Yellow
Granite tiles for external paving.
Application
External paving.
Description
Nova is a granite tile adorned with stunning and vibrant hues, available in five finish options.
Features and benefits:
- Choice of five finish options: dark pink, light grey, medium grey, black and yellow.
- Three sizes available.
- R11 slip resistance.
- Easily installed upon Raaft’s Terrace system.
- Creates indoor and outdoor spaces.
General information
Color | Grey Pink Black Yellow Other |
Finish | Sawn |
Material | Granite |
Shape | Rectangle Square |
Length | 600 mm 900 mm |
Width | 600 mm 400 mm 200 mm |
Uniclass | |
CAWS | Q25/330 Natural stone setts Q25/26 Natural stone slab paving systems |
Specification data - Natural stone setts
Classification data | |
Standard | To BS EN 1342. |
Stone denomination | |
Petrological family | Granite. |
Colour | Yellow. |
Origin | Atei – Mondim de Basto – Vila Real. |
Physical properties | |
Sett type | Regular plan form. |
Dimensions and tolerances | |
Nominal sizes | 600 x 600 mm. Guidance for specification option: 421110. 900 x 400 mm. Guidance for specification option: 421112. 900 x 200 mm. Guidance for specification option: 421111. |
Performance requirements | |
Slip resistance | Dry SRV to EN 14231, 82. Wet SRV to EN 14231, 77. |
Slip resistance | R11. |
Flexural strength | To EN 12372, 8.6 Mpa (mean). |
Compressive strength (mean value) | To EN 1926, 110 Mpa. |
Water absorption | To EN 13755, 0.9% (mean). |
Apparent density | To EN 1936, 2580 kg/m³ (mean). |
Porosity | To EN 1936, 2.7% (mean). |
Abrasion resistance | To EN 14157, 17 mm (mean). |
