Notifier Manual Call Point
Verified by manufacturer 2 days ago
M5A-RP02FF-N026-01
M5A-RP02FF-N026-01

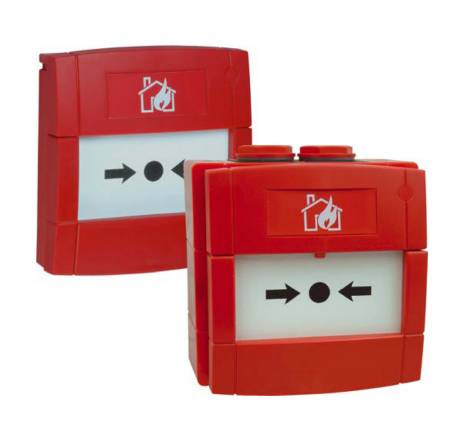

Analogue Addressable break-glass call point.
Application
Suitable for commercial, industrial or residential applications. The series is used as a manual call point in case of fire. It is usually installed outside doors so that it can be used in an evacuation event.
Description
M5A - W5A series is an indoor analogue break-glass call point designed to be used as a manual alarm for the fire system. Two models are available: the M5A-xx and W5A-xx series, which include an addressable mini-module for interfacing with Notifier control panels. All call points are compliant with the EU directive for CE mark and CPR certified for EN 54-11 and EN 54-18.
Features and benefits:
- Easy to install.
- Status LED; it shows the different device states: BLINKING, in communication with the control panel, STEADY, alarm.
- Easy wiring thanks to plug-in connectors.
- Easy test: introducing the supplied specific key, the glass will move down, switching the manual call point in alarm condition.
- Breaking glass with a protective label or a flexible resettable membrane.
- Suitable for wall mounting or flush mounting.
- Base is supplied with call point.
- EN 54-11 & EN 54-18 Certified.
General information
Color | Red |
Material | Plastic |
Shape | Rectangle |
Length | 59.5 mm 65.5 mm |
Width | 89 mm 97.5 mm |
Height | 93 mm |
Uniclass | |
CAWS | W90/336 Manual call points |
SKU Code | M5A-RP02FF-N026-01 |
Specification data - Manual call points
Classification data | |
Standard | To BS EN 54-11 and EN 54-18. |
Third-party certification | CPR certified. |
Frangible element | Non-resettable. Resettable. |
Environmental category | Indoor. |
Mounting | Surface. Flush mounting. |
Protective covers | Not required. PS200 Plastic cover for manual call points. |
Accessories | SUS758 - Box of 10 pieces of spare glasses for Series call points. Neutral inscription. M700K-503 - Frame and adapter for B503 wall boxes. Pack of 10 pcs. SR1T - Red mounting support. |
Ingress protection | IP24D. |
Operating temperature | -10° to +55°C. |
Sustainability data
Material | Plastic |
Literature
HBT-Fire-201910290857-Addressable-call-point-dep-eng
