Notifier Fire Alarm Interfaces - Input and Output Modules
Verified by manufacturer 2 days ago
CMX-10RME
CMX-10RME

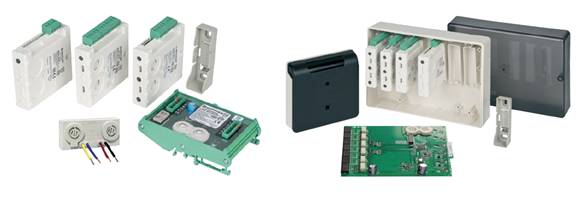

A range of interface modules for fire alarm systems.
Application
Suitable for Notifier fire detection and alarm systems.
Description
The wide range of input and output modules available from
Notifier delivers flexibility to a Notifier fire detection and alarm system. Using these modules enables integration with a host of other building management and emergency systems, including access control systems, lifts, fire shutters and emergency lighting.
Features and benefits:
- Analogue addressable communications using Opal digital protocol.
- Backward compatible with legacy Notifier systems.
- Built-in type identification automatically identifies these devices to the control panel.
- Stable communication technique with high noise immunity.
- Rotary Decade 01 to 99 or 01 to 159 (for Opal digital protocol modules) address switches.
- Common mounting options including surface mount, panel mount and DIN rail mount.
General information
Color | White Green |
Shape | Rectangle |
Length | 13 mm 82 mm 15 mm |
Width | 70 mm 93 mm 71 mm |
Height | 233 mm 22 mm 33 mm |
Uniclass | |
CAWS | W90/125 Fire detection and alarm systems in non-domestic premises |
SKU Code | CMX-10RME |
Specification data - Fire alarm input and output modules
Classification data | |
Standards | To EN 54-17, EN 54-18. |
Third-party certification | LPCB and VdS. |
Device type | Ten way output module. |
Mounting arrangement | 002-439 - Multi-mount enclosure. Guidance for specification option: Metal, Notifier black/ grey. The enclosure is capable of housing one CMX-10RME or MMX-10ME or MCX-55E module. |
Enclosure | |
Ingress protection (minimum) | |
Colour | |
Accessories | Not required. NF-SIL-BKIT - Notifier local silence button kit. NFX-DRS-1 - Notifier door release system. |
Literature
hba-fire-NF-SS-M200-Datasheet-EMEA-EN-rev4
hba-fire-990-153-0713-Input-Output-Modules (2)
